Heavy-Duty Framed Cable Roller For Underground Power Line Installation
Price:
Negotiation
MOQ:
1 PCS
Delivery Time:
3-7days
Brand:
Suntech
Product Description

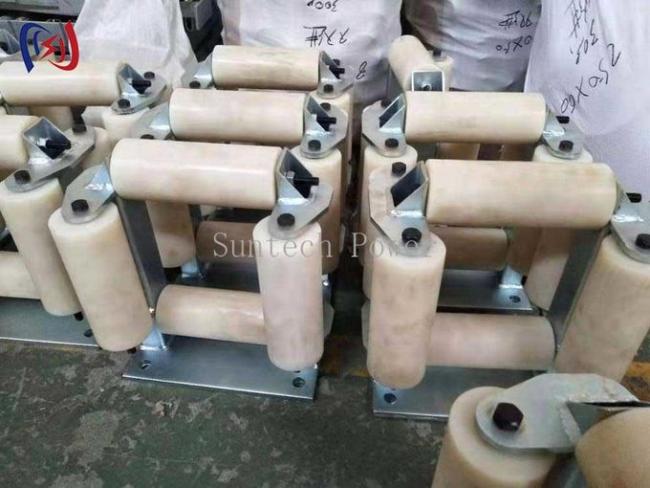

Heavy-Duty Framed Cable Roller For Underground Power Line Installation
The Framed Cable Roller is a robust cable handling device designed for power line construction, underground installations, and industrial cable pulling operations. Featuring a sturdy frame structure, this professional-grade equipment ensures smooth cable movement while protecting conductors from damage during installation.
Key Features & Benefits:
1. Heavy-Duty Construction
- Frame Material: High-strength galvanized steel or lightweight aluminum alloy
- Roller Composition: Polyurethane or nylon sheaves with fiber reinforcement
- Bearing System: Sealed ball bearings for frictionless rotation
- Load Capacity: Rated for 5 tons (4.5 metric tons) working load
2. Enhanced Cable Protection
- Smooth Rolling Surface: Minimizes conductor abrasion
- Adjustable Guides: Prevents cable misalignment
- Non-Marring Design: Protects sensitive cable jackets
3. Operational Efficiency
- Quick Assembly: Tool-free setup with modular components
- Low-Friction Design: Reduces pulling force by 30%
- Versatile Mounting: Compatible with standard rigging systems
4. Safety & Compliance
- ANSI/IEEE Certified: Meets industry safety standards
- Locking Mechanisms: Prevents accidental disengagement
- Non-Sparking Options: Available for hazardous areas
Applications:
- Transmission line conductor stringing
- Underground power cable installations
- Substation and industrial cable pulling
- Telecom and fiber optic duct work
- Railway electrification projects
Available Configurations:
- Single Sheave: Basic cable protection
- Double/Triple Sheave: For parallel conductors
- Corner Roller: Directional change support
- Insulated Model: Live-line work rated
- Custom Designs: Project-specific requirements
Why Choose Our Framed Cable Roller?
- Proven durability in utility projects worldwide
- Reduces labor time and cable damage risks
- 1-year warranty on frame and bearings
| Item number | Model | Max Cable Diameter(mm) | Rated Load(KN) | Carrier Roller Dia(mm) | Number Of Carrier Roller | Weight(KG) |
| 21229 | SHD4K180 | 180 | 20 | 60 | 4 | 16 |
| 21229L | SHD4K180L | 180 | 20 | 60 | 4 | 16 |
| 21228 | SHD6K180 | 180 | 20 | 60 | 6 | 16 |
| 21228L | SHD64180L | 180 | 20 | 60 | 6 | 20 |
