Heavy Duty Wire Rope Handle Hoist 5 Ton Capacity Manual Lever Operation For Construction Industrial Lifting
Heavy-Duty Wire Rope Handle Hoist – 5-Ton Capacity | Manual Lever Operation | For Construction & Industrial Lifting
Introduction

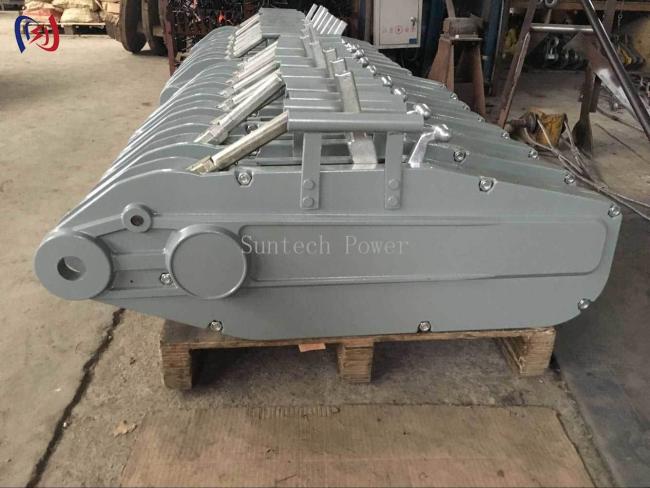

The Wire Rope Handle Hoist is a versatile manual lifting device designed for pulling, lifting, and positioning heavy loads in construction, industrial, and rigging applications. Combining a lever-operated ratchet mechanism with a durable wire rope, it provides precise load control without requiring electricity or hydraulics. Ideal for maintenance, recovery, and material handling, this hoist is a must-have for workshops, job sites, and emergency operations.
Key Features
✅ Heavy-Duty Capacity – 1/2-ton to 5-ton load rating (varies by model)
✅ Manual Lever Operation – No power needed—ideal for remote locations
✅ 360° Swivel Hook – Allows multi-directional pulling without tangling
✅ Load-Lock Brake – Automatic braking system prevents accidental release
✅ Durable Wire Rope – Galvanized or stainless steel for corrosion resistance
Working Principle
Hook Attachment – Secure the hoist to an anchor point (beam, truck, etc.).
Rope Engagement – Thread the wire rope through the load hook.
Lever Ratcheting – Pump the handle to lift or pull the load incrementally.
Load Locking – The automatic brake holds tension between strokes.
Release Mechanism – Safely lower the load via the controlled release lever.
Applications
Construction – Lifting steel beams, machinery, and materials
Auto Repair – Engine pulling, transmission removal
Agriculture – Tractor recovery, hay bale lifting
Marine – Boat positioning, anchor retrieval (galvanized models)
Emergency Rescue – Vehicle extraction, debris clearing
Warehouse – Positioning heavy inventory without forklifts
Competitive Advantages
Explain
It has three functions of lifting,pulling and tensioning.It is suitable for long distance lifting or pulling in the field without power source.
| Item No. | 14183 | 14184 | 14185 | 14186 |
| Model | HSS408 | HSS416 | HSS432 | HSS454 |
| Rated Lifting/Pulling(KN) | 8/12.5 | 16/25 | 32/50 | 54 |
| Once journey(MM) | >=40 | >=40 | >=16 | >=20 |
| Diameter of steel rope(MM) | Φ8.3 | Φ11 | Φ16 | Φ20 |
| Standard length of steel rope(M) | 20 | 20 | 20 | 20 |
| Net weight(KG) | 6.8 | 13 | 25 | 52 |
| Hand wrenching at the rate load(N) | <=343 | <=400 | <=441 | <=550 |
| Encasement dimension(MM) | 420*106*250 | 530*126*315 | 660*160*360 | 930*390*150 |
