Automatic wheat flour packing machine for kraft paper bag
1, Product Name: Automatic wheat flour packing machine for kraft paper bag
2, Item: DCS-50WF
Application Materials(products)
Screw feeding type packing machine suit for pack powder of any industry,such as flour, starches, lime powder, cement, fertilizer,silica sand powder, nitrate of potash, ammonium sulfate etc
Application Bags(open mouth bags)
This bagging machine is especially designed for pack materials(products) into open mouth bags,such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
Control Box
+Full touch screen panel
+PLC system
+Photoelectric sensor switch
+English/Chinese view
+Easy operation interface
+Proction data record & print
+Connect computer available
Three pieces of Load Cell
(weighing sensor)
+Famous brand load cell, more stable
+Installed 3pieces load cell, high weighing accuracy
Dual Screw Feeding Mechanism
+Dual screw design(coarse screw+fine screw)
+Control by the PLC system and dual motor
+Feeding speed with fast-midium-slow due to the motor frequency change
Automtic Bag Clamp/Loose Mechanism
+Photoelectric sensor switch
+Big force 2pcs air cylinder control
+Automatic bag clamp and loose
+Automatic materials dischage
+Suit for different bag size
Dust Air Outlet
+All of our packing machine will install air outlet
+Connect your dust removal device, making the
working environment more hygienic
+Add our pulse dust collector,
dust collection≥99.8%
Automatic Sewing Machine
+Automatic bag top folding device(opitional)
+Photoelectric sensor switch
+Automatic knife thread cut
+Single needle double thread chain
+Production data record & print
+Thread end length ajustable
+Bag sewing heigth adjustable
+With automatic bag conveyor
Package in wooden case
All equipments will package in the
wooden case and fixed by the steel
then in the cantainer
Transport by truck
We will transport the machine to
Shanghai port(or any port of China you need)by the truck
Ship by the cargo vessel
All machines will in container then
ship to the sea port of your country by the boat
DCS-50WF（click ☝）
Non weighing hopper screw feeding type packing machine
packing speed 120-180 bags/hour
DCS-50F（click ☝）
Single weighing hopper screw
feeding type packing machine
packing speed 240-360 bags/hour
DCS-50SF（click ☝）
Dual weighing hopper screw feeding type packing machine
packing speed 500-600 bags/hour
Changsha Blue Ray M & E Co., Ltd
-15 years professional manufacturer of packing machines,sewing/heat sealing machine,automatic palletizer
machine,elevator/conveyor etc
-More than 10 person engineers team,OEM service and customized design are available
-3000㎡ working shop, high production capacity
-Sales and after sales team 24 hours online service
Flowing chart:
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service
Certificate
We are Alibaba Gloden Supplier with assessment and the BV certificate, CE certificate and CMC (China Metrology Certification)

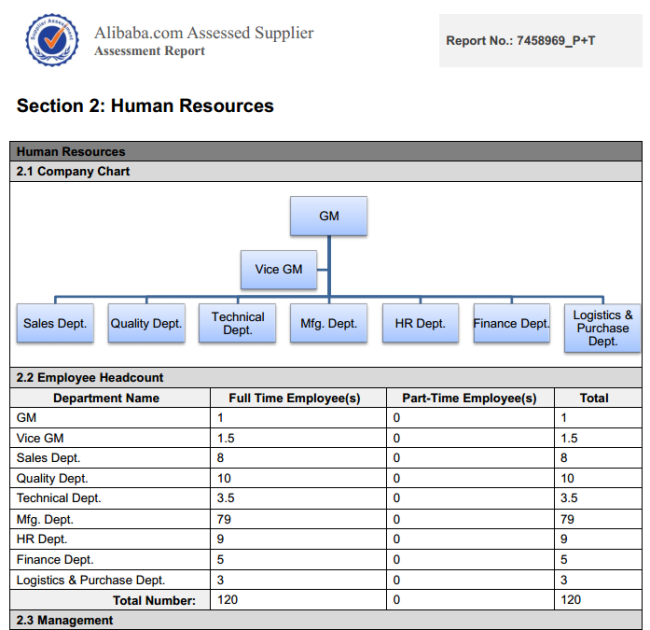

ALIBABA SUPPLIER ASSESSMENT

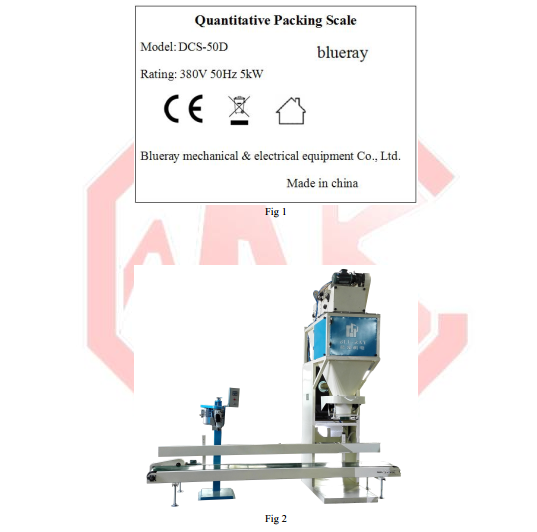

CE CERTIFICATE
BV CERTIFICATE
