20kg To 50kg Dry Powder Open Mouth Bagging Machine
1, Product Name: 20kg to 50kg dry powder packing machine open mouth bagging machine
2, Item: DCS-50WF
|
Application materials
|
powder
|
||
|
Display Resolution
|
5g, 10g
|
||
|
Weighing Range
|
5-50kg/bag or customized needs
|
||
|
Precisions
|
+/-(0.1-0.2)% FS
|
||
|
Packing Capacity
|
120-180 bags/hour
|
||
|
Dimention(L*W*Hmm)
|
3000*1200*2600mm, the size can be customized according to your site
|
||
|
Power Supply
|
AC220V/380V, 50HZ, 1P/3P, customized available
|
||
|
Air Source
|
0.5-0.7 Mpa
|
||
|
Power
|
3KW
|
||
|
Working Temperature
|
-10~40 ℃
|
||
|
Relative Humidity
|
≤90% RH(Non-condesing)
|
||
Application Materials(products)
Screw feeding type packing machine suit for pack powder of any industry,such as flour, starches, lime powder, cement, fertilizer,silica sand powder, nitrate of potash, ammonium sulfate etc
Application Bags(open mouth bags)
This bagging machine is especially designed for pack materials(products) into open mouth bags,such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing

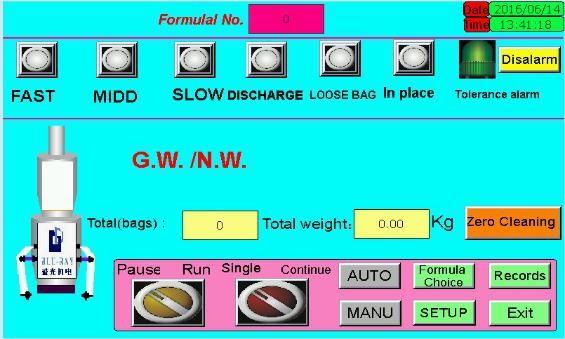

Control Box
+Full touch screen panel
+PLC system
+Photoelectric sensor switch
+English/Chinese view
+Easy operation interface
+Proction data record & print
+Connect computer available
All machines will in container then
ship to the sea port of your country by the boat
|
Item
|
DCS-50WF
|
DCS-50F
|
DCS-50SF
|
|
Application materials
|
Power of any industry
|
||
|
Display Resolution
|
5g, 10g
|
||
|
Weighing Range
|
5-50kg/bag or customized
|
||
|
Precisions
|
+/-(0.1-0.2)% FS
|
||
|
Packing Capacity
|
120-180 bags/hour
|
240-360 bags/hour
|
500-600 bags/hour
|
|
Dimention(L*W*Hmm)
|
3000*1200*2600
|
3000*1200*3200
|
4000*1200*3700
|
|
Power Supply
|
AC220V/380V, 50HZ, 1P/3P, customized available
|
||
|
Air Source
|
0.5-0.7 Mpa
|
||
|
Power
|
3KW
|
3KW
|
6KW
|
|
Working Temperature
|
-10~40 ℃
|
||
|
Relative Humidity
|
≤90% RH(Non-condesing)
|
||
