Dust Remove Device Jumbo Bag Packing Machine 1000KG
|
Product Name |
Screw/Auger feeding mechanism jumbo/bulk/ton/FIBC bags packing filling bagging machines |
||
|
Item |
DCS-2T/F |
||
|
Application Materials |
Powder materials such as flour, starches, lime powder, cement, fertilizer,silica sand powder,nitrate of potash, ammonium sulfate etc |
||
|
Display Resolution |
5g, 10g |
||
|
Weighing Range |
500-3000kg/bag or customized needs |
||
|
Precision |
+/-(0.1)% FS |
||
|
Packing Capacity |
10-30 bags/hour or more fast depends on your materials | ||
|
Dimension(L*W*Hmm) |

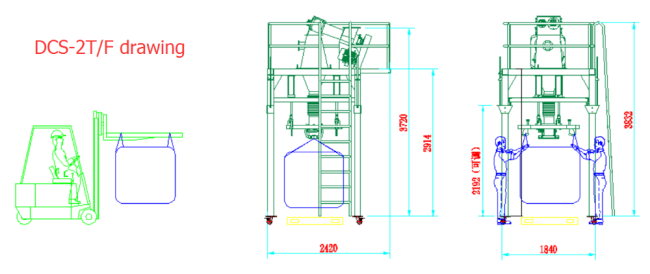

1840*2400*3800mm, See detailed drawing, the size can be customized according to your site |
||
|
Power Supply |
AC220V/380V, 50HZ, 1P/3P |
||
|
Air Source |
0.5-0.7 Mpa |
||
|
Power |
3KW-6KW |
||
|
Working Temperature |
-10~40 ℃ |
||
|
Relative Humidity |
≤90% RH(Non-condensing) |
||

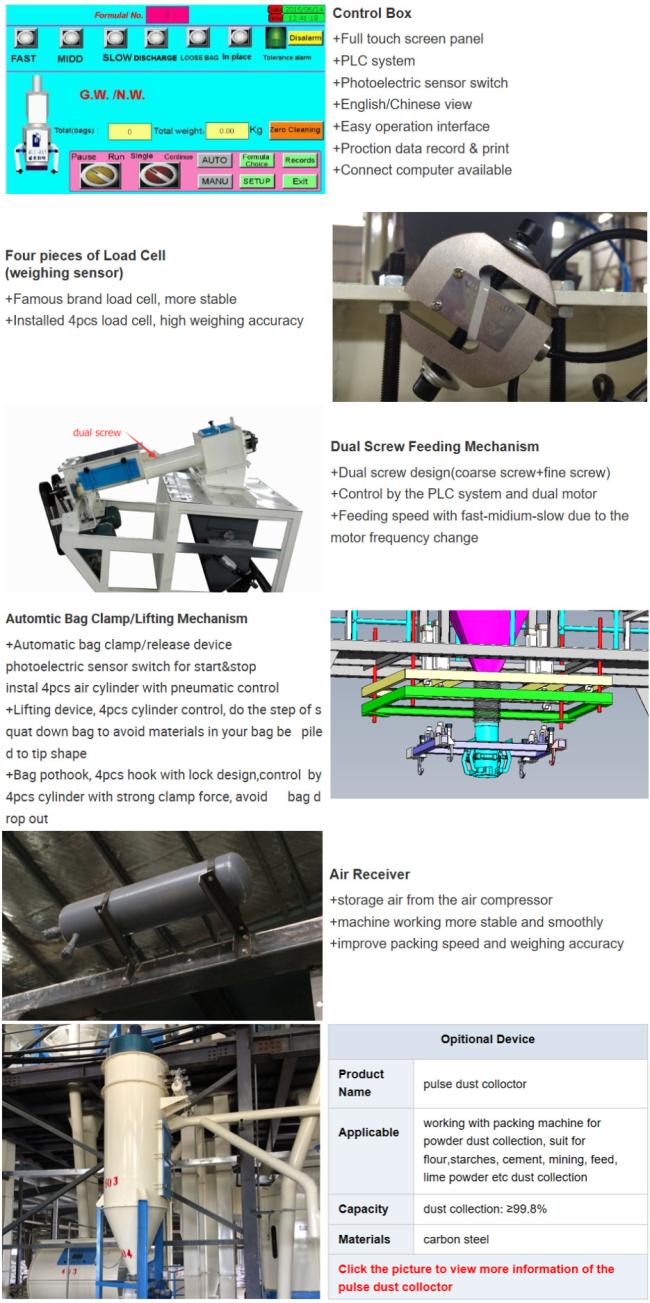

DCS-2T/F screw/auger feeding JUMBO/FIBC/BULK BAGS bagging/filling/packing machine picture
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying
Flowing chart:
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-
testing-packaging and transport-after service
