Touch Screen Control 3KW Cement Bag Packing Machine
1, Product Name: High quality semi automatic soil bag packing machine
2, Item: DCS-50D
Application materials | flake,lump,block,aggregation,mixture products of any industry | ||
Display Resolution | 5g, 10g | ||
Weighing Range | 5-50kg/bag or customized needs | ||
Precisions | +/-(0.1-0.2)% FS | ||
Packing Capacity | 300-420 bags/hour | ||
Dimention(L*W*Hmm) | 3000*1500*3500mm, the size can be customized according to your site | ||
Power Supply | AC220V/380V, 50HZ, 1P/3P, customized available | ||
Air Source | 0.5-0.7 Mpa | ||
Power | 3KW | ||
Working Temperature | -10~40 ℃ | ||
Relative Humidity | ≤90% RH(Non-condesing) | ||
Application Materials(products)
Belt feeding type packing machine suit for pack flake,lump,block,aggregation,mixture products, such as gravel,pebble,stone,manure,organic fertilizer, soil, sawdust,animal feed(big size/mixture),coal briquette, aluminum sulfate etc
Application Bags(open mouth bags)
This bagging machine is especially designed for pack materials(products) into open mouth bags, such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
 | Control Box+Full touch screen panel |

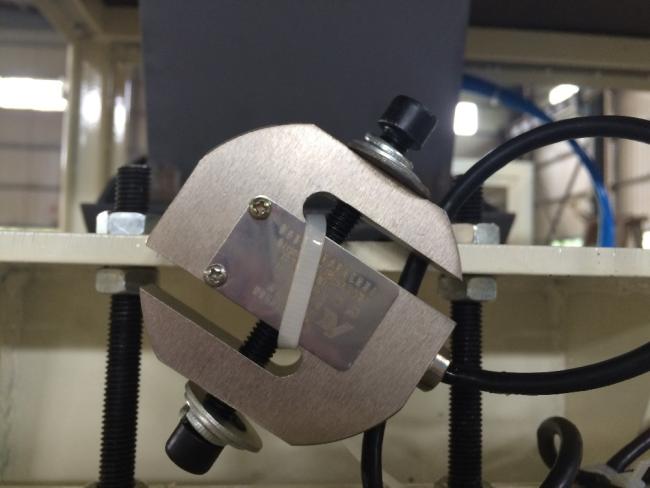

 | Three pieces of Load Cell(weighing sensor)+Famous brand load cell, more stable |
 | Belt Feeding Mechanism+Control by the PLC system and motor |
 | Automtic Bag Clamp/Loose Mechanism+Photoelectric sensor switch |

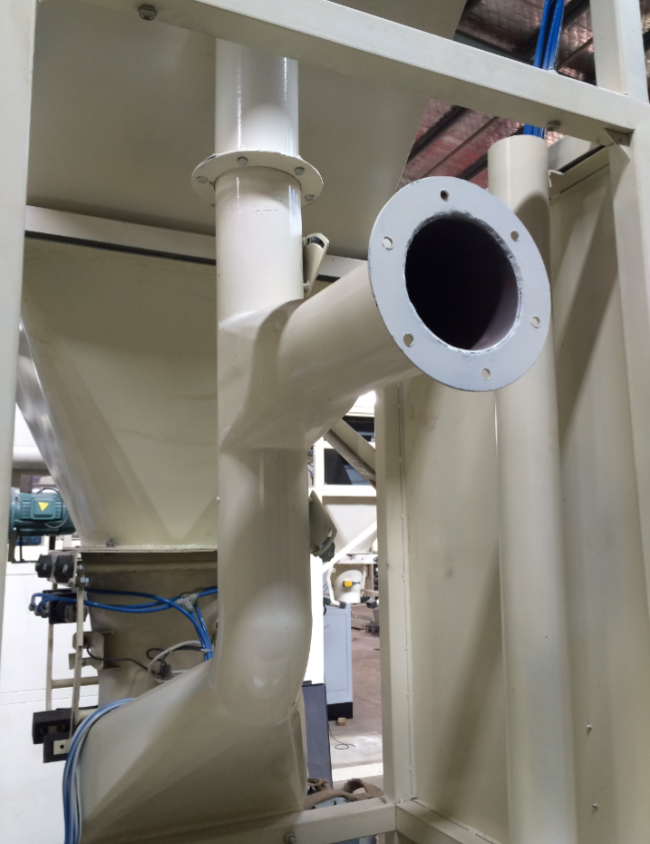

 | Dust Air Outlet+All of our packing machine will install air outlet |

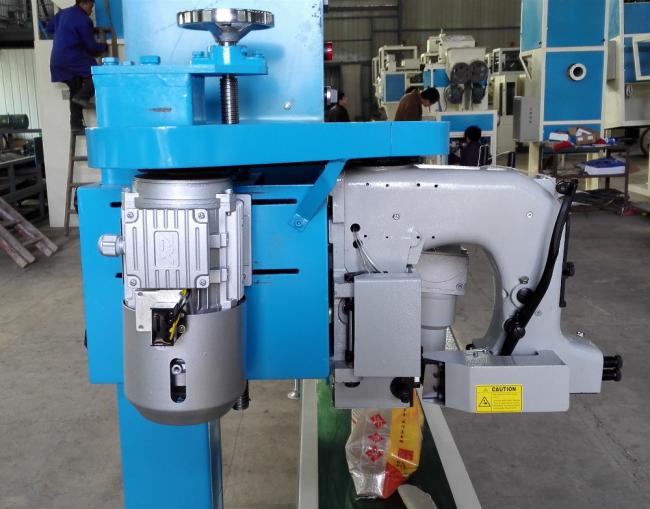

 | Automatic Sewing Machine+Automatic bag top folding device(opitional) |
Item | DCS-50WD | DCS-50D | DCS-50SD |
Application materials | flake,lump,block,aggregation,mixture products of any industry | ||
Display Resolution | 5g, 10g | ||
Weighing Range | 5-50kg/bag or customized | ||
Precisions | +/-(0.1-0.2)% FS | ||
Packing Capacity | 180-240 bags/hour | 300-420 bags/hour | 500-600 bags/hour |
Dimention(L*W*Hmm) | 3000*1500*2800 | 3000*1500*3500 | 4000*1500*3900 |
Power Supply | AC220V/380V, 50HZ, 1P/3P, customized available | ||
Air Source | 0.5-0.7 Mpa | ||
Power | 3KW | 3KW | 6KW |
Working Temperature | -10~40 ℃ | ||
Relative Humidity | ≤90% RH(Non-condesing) | ||
Changsha Blue Ray M & E Co., Ltd
-15 years professional manufacturer of packing machines, sewing/heat sealing machine, automatic palletizer
machine, elevator/conveyor etc
-More than 10 person engineers team, OEM service and customized design are available
-3000㎡ working shop, high production capacity
-Sales and after sales team 24 hours online service
Flowing chart:
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service
