Single Hopper 50kg/Bag Chicken Feed Pellet Packing Machine
Machine With Screw Feeder Reel Feeding Paper Bag Packing Unit For Chicken Feed 50 Kg
Product Description
1. Accuracy Grade: ±(0.1-0.2)F.S.
2. Weighing Hopper: Single
3. Automatic Grade: Semi-auto
4. Certification: CMC, CE
Product features
1. This unit is specially designed for ultrafine powdery materials, with unique structure, accurate weighing and stable reliability;
2. The weighing control system is controlled centrally by Canada controller and is designed according to IP54 (dustproof and waterproof) requirement;
3. It can be tailor-made according to the customer's need and site.
| Product Name | Granular feed packing machine |
| Model | DCS-50L |
| Weighing Range | 5-70KG or customized needs |
| Speed | 360-480 bags/hour |
| Scale Interval | 10g |
| Power Supply | 220V/380V 50HZ 1.1KW |
| Air Supply | 0.5-0.8MP |
| Machine Size | 3000*1100*3100mm |
| Item | DCS-50WL | DCS-50L | DCS-50SK |
| Application materials | each type small size granule materials | ||
| Weighing range | 10-50kg/bag or customized | 5-50kg/bag or customized | 5-50kg/bag or customized |
| Scale interval | 10g | ||
| Feeding type | gravity feeder with Three-stroke cylinder | ||
| Weighing hopper | non-weighing hopper | single weighing hopper | dual weighing hopper |
| Precision | ±50g | ||
| Capacity | 3-5bag/min | 6-8bags/min | 8-15bags/min |
| System | PLC system and 10" full touch screen HMI | ||
| Air source | 0.5-0.8Mpa | ||
| Dimension(L*W*Hmm) | 3000*1100*2100mm+1000mm buffer hopper | 3000*1100*3100mm+1000mm buffer hopper | 4000*1200*3600mm+1000mm buffer hopper |
| Power | 2.4kw | 2.5kw | 3.7kw |
| Voltage | single/three phase AC220V/AC380V/50HZ | ||
| Working environment | (-10℃~40℃) | ||
| Relative humidity | ≤90%RH non condensation | ||
| Machine materials | product contact parts SS304/or full Q235 carbon steel with anti-rust painting | ||

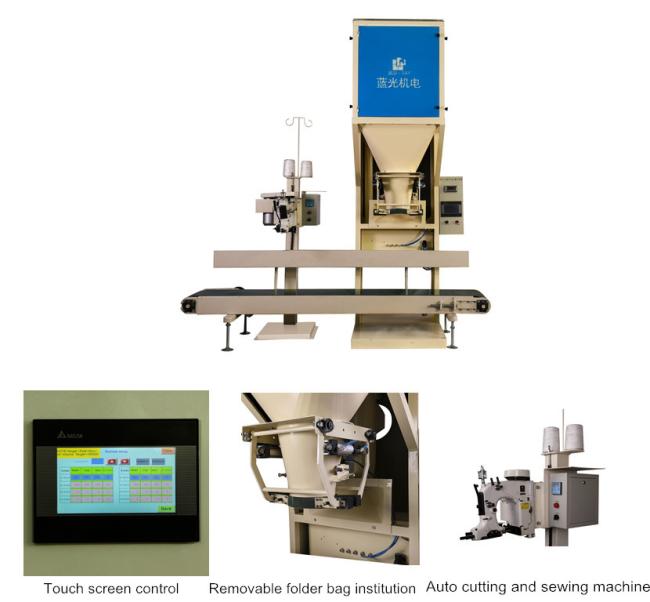

Products Show
Touch screen control which are easy to operate and learn
Automatic lifting and down conveyor and control by touch screen
With Auto sewing and cutting sewing machine
Application
Suitable for weighing, filling, and bag closing rice, beans, seeds, sugar, or other granule material
Available for PP woven bag packing
Available for kraft paper bag packing
Available for plastic bag packing
And other open mouth bags
Our Service
We aim to best serve our clients' needs. So we promise the following clauses on condition of establishing business relationship with you.
1) The machine shall be guaranteed by the seller against poor materials, poor performance and poor workmanship. For a period of one year
from the date of commissioning, during this guarantee period, no matter what's kind of parts was damaged, we will provide free change for you.
2) All equipment for more than a year warranty, exchange of damaged parts, we only charge a cost of spare parts.
3) The seller will supply the buyer the guide service on the operation of the machine.
4) The seller will respond within 2 hours if the machine goes wrong in production.
5) If required, the seller will dispatch technician to buyer's country for installation guide, commissioning & adjusting the machine and training the workers
on condition that the buyer affords all the cost from China to the buyer's company including food, accommodation, transportation, etc. and extra USD100.0 per day per person for the service.

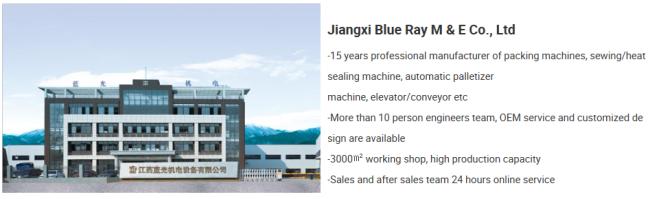

Our Company

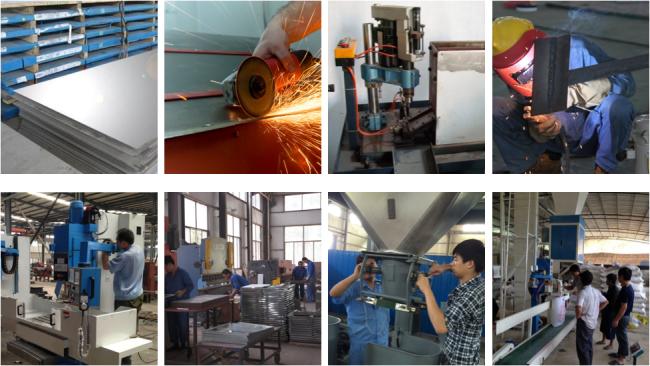

Flowing chart:
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service
Packing & Delivery
Packing Details : Polywood Box Packing
Delivery Details : 20-30 days after received the deposit
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 20-30 days after received the deposit.
Q: Can you offer oversea service?
A: Yes. If required, we will dispatch technician to buyer's country for installation guide, commissioning & adjusting the machine and training the workers on condition
that the buyer affords all the cost from China to the buyer's company including food, accommodation,
transportation, etc. and extra USD100.0 per day per person for the service.
Q: What's the payment term?
A: TT 30% Deposit and balance before delivery.
