300-2000kg bag Concrete Cement Fly Ash Bulk Bag Packing Machine
300-2000kg bag Concrete Cement Fly Ash Bulk Bag Packing Machine
|
Product Name |
Belt feeding mechanism jumbo/bulk/ton/FIBC bags packing filling bagging machines |
||
|
Item |
DCS-50F/2T |
||
|
Application Materials |
Flake,lump,block,aggregation,mixture materials,such as gravel,pebble, stone,manure,organic fertilizer, soil, sawdust,animal feed(big size/ mixture),coal briquette, aluminum sulfate etc |
||
|
Display Resolution |
5g, 10g |
||
|
Weighing Range |
500-3000kg/bag or customized needs |
||
|
Precision |
+/-(0.1)% FS |
||
|
Packing Capacity |
10-30 bags/hour or more fast depends on your materials | ||
|
Dimension(L*W*Hmm) |
1840*1840*4500mm, See detailed drawing, the size can be customized according to your site |
||
|
Power Supply |
AC220V/380V, 50HZ, 1P/3P |
||
|
Air Source |
0.5-0.7 Mpa |
||
|
Power |
3KW-6KW |
||
|
Working Temperature |
-10~40 ℃ |
||
|
Relative Humidity |
≤90% RH(Non-condensing) |
||
DCS-2T/D belt feeding JUMBO/FIBC/BULK BAGS bagging/filling/packing machine picture
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying
 |
Control Box+Full touch screen panel |
Four pieces of Load Cell(weighing sensor)+Famous brand load cell, more stable |
 |
 |
Three-travelling Air Cylinder(gravity feeding)+Control by the PLC system and three-travelling |

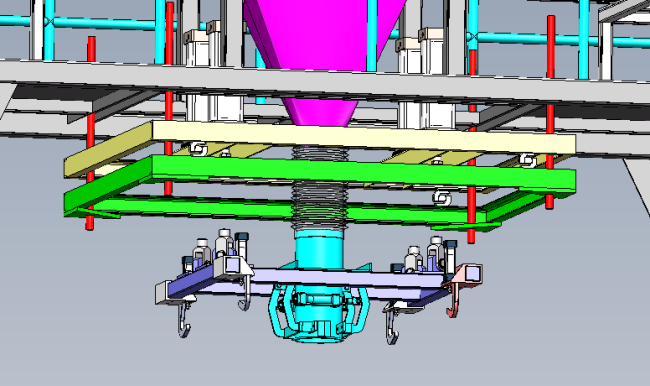

Automtic Bag Clamp/Lifting Mechanism+Automatic bag clamp/release device photoelectric sensor switch for start&stop instal 4pcs air cylinder with pneumatic control |
|
 |
Air Receiver+storage air from the air compressor Packing & Delivery
|
Flowing chart:
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-
testing-packaging and transport-after service
