GK35-6A 500bags/Hour Automatic Rice Bag Sewing Machine
High-Performance Automatic Rice Bag Closing Sewing Machine
1, Product Name: High-Performance Automatic Rice Bag Closing Sewing Machine
2, Item: GK355-6A
3,Technical parameters
-Applicable: woven bags, kraft bags,paper-plastic compound bags, sacks
-Max. Sewing Speed: 2000rpm
-Working Speed: 1800rpm
-Max. Thickness of Material: 8mm
-Range of Stitch Width: 6.5~11mm
-Thread Track: 401401 Double-Thread Chain
-Thread Spec.: A3*3 double thread
-Lifting height: 11~16mm
-Needle Type: 80800*200#-250#
-Thread chain cutter: Electro-Pneumatically Operated Type
-Motor Type: Braking Motor
-Motor power: 370W

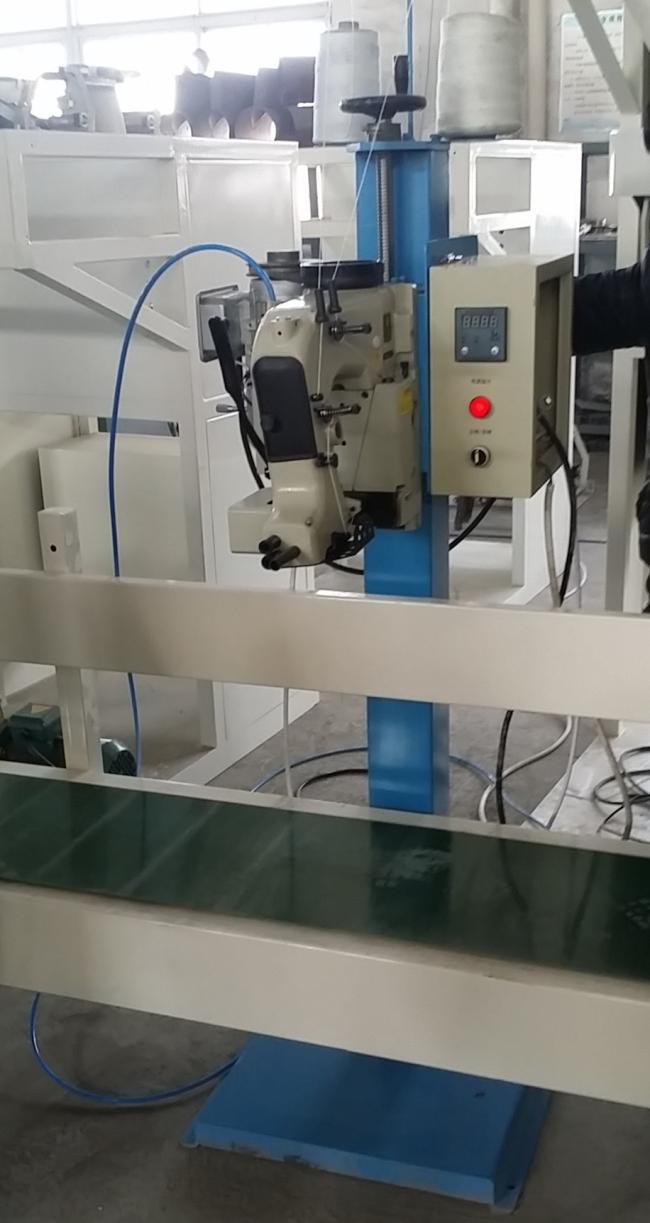

Our item GK35-6A sewing machine is full automatic, it's started/stop by a photoelectric sensor, automatic thread knife cut with single needle double thread chain, with the function of production data dispaly and
record. It's suitable for bag closed(such aswoven bags,kraft bags,paper-plastic compound bags,sacks etc
Automatic Sewing Machine
+Automatic bag top folding device(opitional)
+Photoelectric sensor switch
+Automatic knife thread cut
+Single needle double thread chain
+Production data record & print
+Thread end length ajustable
+Bag sewing heigth adjustable
+With automatic bag conveyor
Belt type bag conveyor
+Conveying the filled bag from packing machine to
sewing machine for bag closed
+Length 2/3/4 meters or you needs
+Use frequency change motor,conveying speed
can control
+Squirrel-cage design,avoid blocking
+4mm thickness belt
+Reversible type of rotation
+Height adjustable
DCS-50L
Gravity feeding packing machine
360-480bags/hour
Gravity feeding type packing machine
suit for pack small size granular or
powder with good flow, such as
plastic particles, feed, fertilizer( urea
etc), grain, sugar, bean, rice etc.
DCS-50WF
Screw feeding packing machine
120-180bags/hour
Screw feeding type packing machine
suit for pack powder of any industry,
such as flour, starches, lime powder,
cement, fertilizer,silica sand powder,
nitrate of potash,ammonium sulfate etc
DCS-50D
Belt feeding packing machine
360-480bags/hour
Belt feeding type packing machine
suit for pack flake,lump,block,
aggregation,mixture products, such as gravel,pebble,stone,manure,organic
fertilizer,soil, sawdust,fodder,briquette,
aluminum sulfate etc
Changsha Blue Ray M & E Co., Ltd
-15 years professional manufacturer of packing machines, sewing/heat sealing machine, automatic palletizer
machine, elevator/conveyor etc
-More than 10 person engineers team, OEM service and customized design are available
-3000㎡ working shop, high production capacity
-Sales and after sales team 24 hours online service
Flowing chart:
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service
