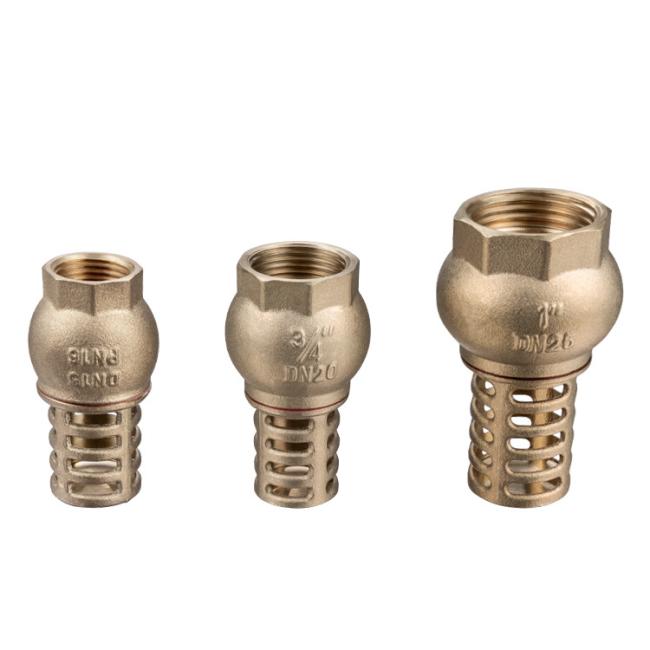

Full Swing Chrome Plated 1/2Inch-4Inch Brass Water Pump Filter Foot Valve
Full Swing Chrome Plated 1/2Inch-4Inch Brass Water Pump Filter Foot Valve
★Introduction – Brass Vertical bottom valve is mainly used for the connection of water pipes to prevent the backflow of water inlet pipe and filter impurities in the water. Solid, reliable structure,good sealing. The joint is made of brass, neat and beautiful.
★Features –The foot valve has multiple water inlets on the valve cover and is equipped with screen mesh to reduce the inflow of debris and reduce the probability of blocking the bottom valve.
★Function – The function of the brass bottom valve is to prevent the outflow of water in the pipe when the water pump is filled before starting, so as to ensure the starting of the pump. When the pump operates normally, the bottom valve is opened, and the water from the well can pass through the bottom valve.
★Application– The brass bottom valve has reasonable design, advanced manufacturing process, and convenient installation, use and maintenance. And it has the advantages of low friction resistance, long service life, energy saving, etc. It is widely used in the supporting facilities of pumps in petrochemical, chemical, textile, printing and dyeing, metallurgy, mining, drainage and irrigation, water treatment and other industries.
Parameters
| Application | General |
| Temperature Of Media | Medium Temperature |
| Power | Manual |
| Port Size | 1/2"-4" |
| Surface | Sand Blasting Nature Color |
| Certificate | CE,ISO9001,2015 |
| PN | 20 |
| Body Material | Wrought Brass |
| Name | Port Brass Gate Valve |
| Standard Or Nonstandard | Standard |
| Material | Brass |
| Pressure | Medium Pressure |
| Media | Water |
| Structure | Check |
| Size | DN15 To100 |
| Technology | Forging&temper |
| Product Name | Brass Gate Valve |
| Type | Normal Colse |
| Connection | Female Thread |
| Port | NINGBO |
Details

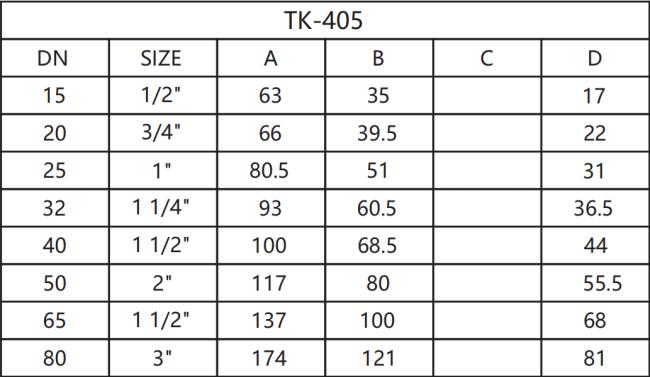

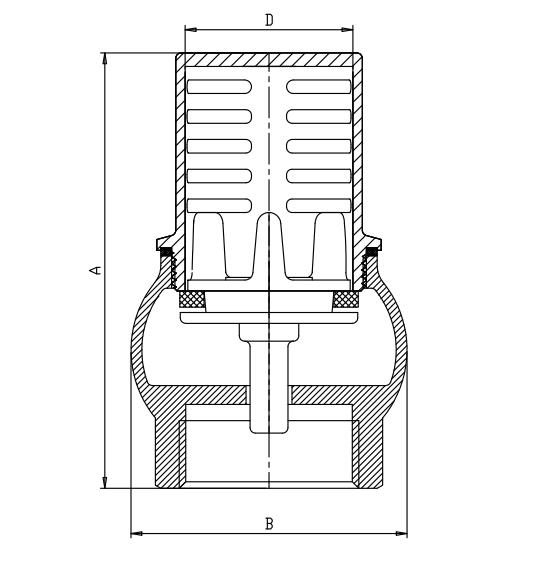

Technical Sheet
Q.Which size sell best?
TK-405 1/2" is our hot sell foot valves,Each year sell more than 200000 PCS.
Q.What's your factory main product?
Our factory just do all kinds of foot valves now,TK-405 foot valve is our main production,It's high quality with competitive price.
Q.How to request a manufacturing quote?
A.Simply call or send us E-mail with your purchase request.Be sure to include all accessories in your request for quote.
Q.How are orders packed and shipped?
A.For custom order,TMOK can design full-color custom packaging to match your brand,if requires.Most shipments
include boxes packed inside an outer carton and placed on a wooden pallet.
Q.Are there any special requirements for OEM purchases?
A.Yes.TMOK requires proof of trademark registration in order to print or emboss your trademark onto the product or
packaging.
Q.Do TMOK products come with a warranty?
A.Yes.TMOK backs our products100%.That's why we offer 3-year product life guarantee ,and a generous1 year
warranty on al purchases that begins with the bill of lading.
