DN15~25 Full Bore Threaded Brass Ball Valve With Long Handle
Source Factory Fast Delivery DN15~25 Full Bore Brass Ball Valve With Long handle

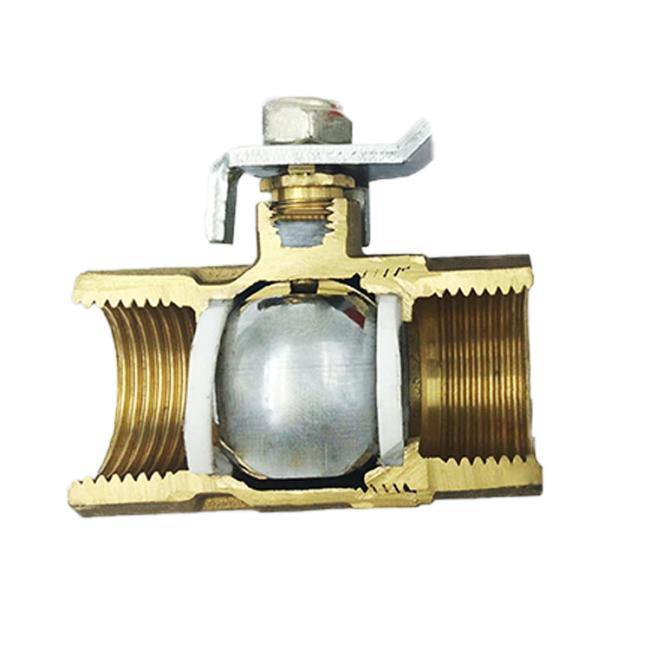

Brass Ball Valve Introduction
Brass Ball Valve with Red Long Handle, Have in stock of 1/2",3/4"and 1".Nickel Plating Surface Treatment and Full Bore,PN16,FXF Thread Connected and Usually Used to Cut off,Distribute and Change the Flow Direction of the Medium. It only takes 90 degrees of rotation and a small torque to close the tight.
Parameters
| Name: | Brass Ball Valve | Main Market: | EU,USA |
|---|---|---|---|
| Handle Color: | Brass color | Temperature Of Media: | Normal Temperature |
| Pressure: | Normal Pressure | Power: | Manual |
| Media: | Water | Port Size: | 1/2" 3/4" 1" |
| Structure: | Ball | Standard Or Nonstandard: | Standard |
| Main Material: | Brass | In Stock: | Yes |
| Use: | Garden Outdoor | PN: | 20 |
| Certificate: | ISO 9001,CE | Free Sample: | Available |
Details:

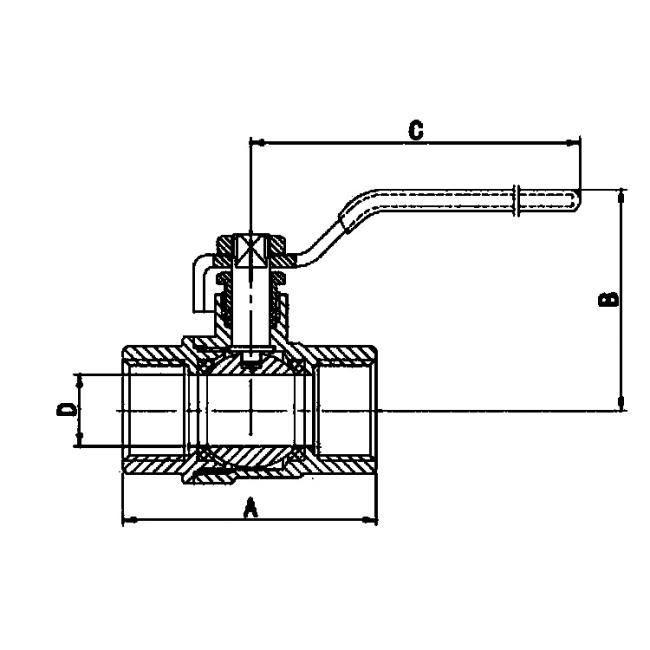

Technical Sheet
| TK5009-D | |||||
| DN | Size | A | B | C | D |
| 15 | 1/2" | 52.5 | 46 | 87.5 | 15 |
| 20 | 3/4" | 60.5 | 49 | 87.5 | 20 |
| 25 | 1" | 69.5 | 58 | 104 | 25 |
| 32 | 1 1/4" | 78 | 69.5 | 136 | 32 |
| 40 | 1 1/2" | 91 | 76.5 | 150 | 37 |
| 50 | 2" | 104 | 84.5 | 150 | 47 |
| 65 | 2 1/2" | 123 | 115 | 210 | 57 |
| 80 | 3" | 155 | 132 | 210 | 68 |
| 100 | 4" | 178 | 148 | 290 | 84 |
| Pressure and temperature limitations for PN rated valve | |||||
| PN | Pressure and temperature range | Pressure and Max temperature | |||
| <=1.6Mpa | 400psi(-10℃ to 110℃) | 800psi(150℃) | |||
TMOK, founded in 1989, which belongs to Yuhuan Oujia Valve Co., Ltd., integrating research, manufacture, sales and service, is the brand manufacturer that specializes in outdoor ball valve.
Q.Which size sell best?
TK-8062 1/2" is our hot sell Garden Taps,Each year sell more than 200000 PCS.
Q.What's your factory main product?
Our factory just do all kinds of Garden taps now,TK-8062 Garden Tap is our main production,It's high quality with competitive price.
Q.How to request a manufacturing quote?
A.Simply call or send us E-mail with your purchase request.Be sure to include all accessories in your request for quote.
Q.How are orders packed and shipped?
A.For custom order,TMOK can design full-color custom packaging to match your brand ,if requires .Most shipments
include boxes packed inside an outer carton and placed on a wooden pallet.
Q.Are there any special requirements for OEM purchases?
A.Yes.TMOK requires proof of trademark registration in order to print or emboss your trademark onto the product or
packaging.
Q.Do TMOK products come with a warranty?
A.Yes.TMOK backs our products100%.That's why we offer 3-year product life guarantee ,and a generous1 year
warranty on al purchases that begins with the bill of lading
