12mm Wire Nail Making Machine 150m/min Wire Cold Rolling Machine
Screw wire crimped cold rolling wire machine ribbed wire making machine
(1) Introduction of Rebar/Bar Ribbed Steel Cold Rolling Machine
1 Derusting Machine
The machine is close type, there have three rotary wheels inside, we could adjust it up and down, it is easier for the raw materials installation, we could put the wire rod inside, then adjust the wheels.
2. Rolling mill
The rollers’ angle should be 120°, at the same center, first rolling mill is mainly for reducing the diameter, second set of rolling mill is for making the rebar,
3. Plate Machine
The machine is with electromagnetic motor, it offer the power for the whole line, the motor speed could be adjusting, it will change the rolling speed.
4. Stress-Relieving Machine
This machine is mainly for reducing the machine hardness.

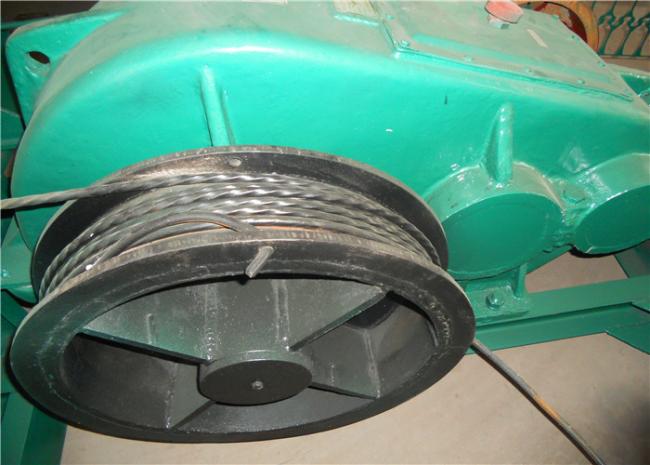

5. The Wire Drawing Machine matches the moment type motor, the mainly spare parts is the wire wheel
6. Straight Machine and Cutter
(2) Parameters of Rebar/Bar Ribbed Steel Cold Rolling Machine
| Item |
Small type |
Medium type |
Large type |
Unit |
| Raw matrial | φ6.5-10 | φ6.5-12 | Φ10-16 | mm |
| Roller Diameter | Φ210 | Φ228 | Φ285 | mm |
| Power | 55-75 | 75-110 | 130-160 | KW |
| Center distance between gears | 650 | 650 | 700 | mm |
| Rolling speed | 1.5-2 | 1.5-3 | 2-3 | m/s |
| Cutting length | 1.5-12 | 1.5-12 | 1.5-12 | m |
| Motor of flying shear | 5.5 | 7.5 | 15 | KW |
| Product specification | Φ5-8 | Φ5-10 | Φ8-14 | mm |
| Output | 20-35 | 25-50 | 60-80 | T/Shift |
