4m Crimped Wire Mesh Machine
2-4m Width Roll And Panel Crimped Wire Mesh Machine DZ1300 DZ1600 DZ2000

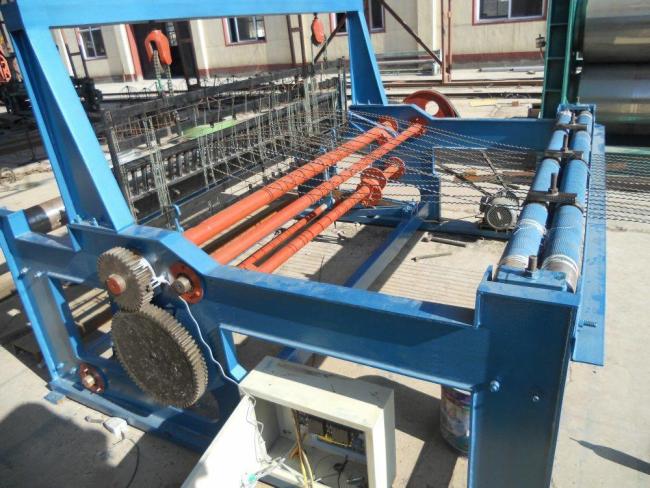

Supply new Semi-automatic crimped wire mesh machine for mine sieve mesh

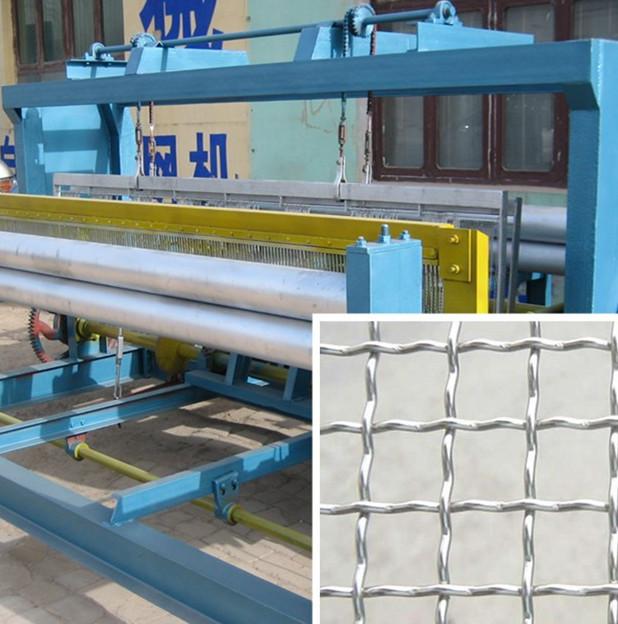

The series of Semi-automatic crimped wire mesh machine weave crimped wire net of steel, iron, lead and stainless steel wire with big diameter. The net is weaved by the machine after the thick wire is formed to crimp by the rolling machine. Breadth of the net is 0.9-2.5m and the diameter of the wire is 2.0-8.0mm. The size of the mesh is 2×2mm-80×80mm. The structure of the machine is compactness and rational.
It performs satisfactorily and runs smoothly.
Breadth of the net produced by each gauge of the machine can be adjusted in a certain extent.
| type | Wire dia (mmm) |
Weaving Width (m) |
weight | Size (LXWxH) m |
Motor details | Wire feed speed in MM | ||||
| Driving power KW |
Power V |
|||||||||
| hydraulic crimped wire mesh machine | 4.0-12 | 2.0 | 2 tons | 3.5*3*1.8 | 5.5 | 380 | 15-20 | |||
| Straightening and cutting machine | 1.4-12 | 800kg | 1.6*1*1.2 | 5.5*1 set 2.2*1 set |
380v/ 220v |
28 | ||||
| Flow rate | Hydraucylinder(mm) | Weight (kg) |
size LxWxH (MM) |
|||||||
| Hydraulic press | 40 pump | 100mm*1 80mm*1 |
400 | 700*500*800 | ||||||
* Fully Automatic Crimped Wire Mesh Weaving Machine Factory

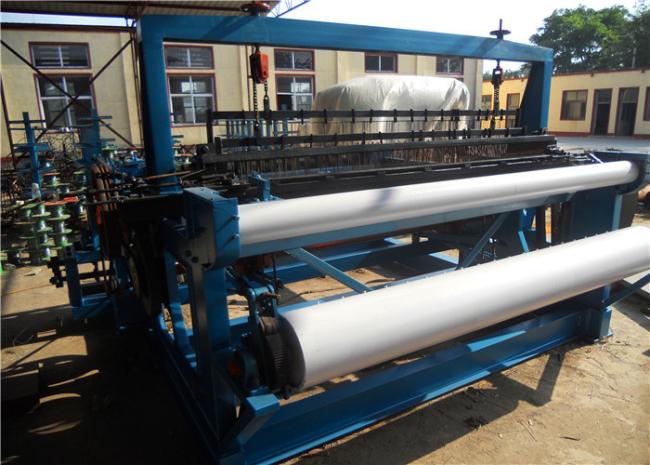

The series of automatic crimped wire mesh machine can finish the work from making the wire crimp
to formation of the net automatically. Breadth of the net is 0.9-2.5m and the diameter of the wire is 0.4-
2.2mm. The size of the mesh is 1×1-20×20mm2. The weaving speed can reach 53times shuttle
/minute.The properties of fast, easy to operate and good performance of the machine are fond by the
users.
Detail:
1. Full-automatically crimped wire mesh weaving machine
| Mesh width | 2m (you could choice 2.5m, 3m) |
| Mesh opening | 0.3-20mm |
| Wire diameter | 0.8mm-1.8mm |
| Dimension | 2750*1950*1400mm |
| Weight | 1.7 Ton |
2. Semi automatic crimped wire mesh machine
| Mesh width | 2.5m (you could choice 2.5m, 3m) |
| Mesh opening | 2-50mm |
| Wire diameter | 2-6m |
| Capacity | 5 rods/min |
| Dimension | 2.9*2.05*1.7 M |
| Shipping | one 20 GP (FCL) |
3. Hydraulic pressure Crimped wire mesh machine
| Mesh width | 2m (you could choice 2.5m, 3m) |
| Mesh opening | 10-100mm |
| Wire diameter | 5-12mm |
| Capacity | 10 rods/min |
| Dimension | 2.8*2.1*1.5M |
| Weight | 1.3 Ton |
| Shipping | one 20 feet container |
Type1: full automatic crimped wire mesh machine
Technical parameter:
Wire diameter: 0.2-2.0mm
Width: 1.0m
Mesh size: 0.8-15mm
Outside size:1500*1800*1300mm
Weight:2.8Ton

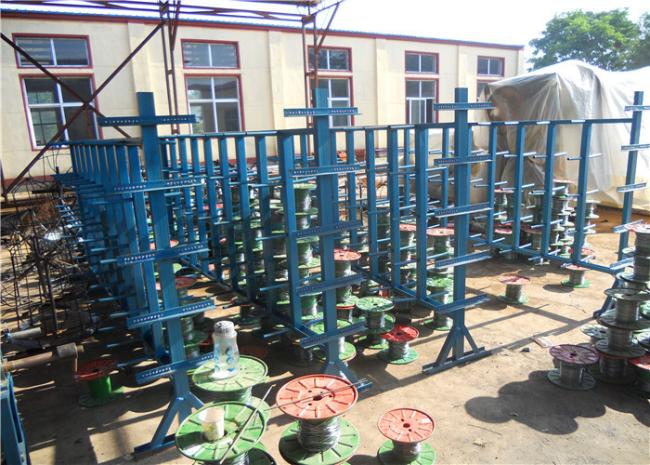

Spare parts:wire crimping machine,bobbin(30sets),uncoiler for roller,one mold
:
Wire diameter: 2.0-6.0mm
Width: 1.0--2.5m
Mesh size: 4--150mm
Outside size:3000*2200*1500mm
Weight:3.8Ton
Spare parts:wire crimping machine,bobbin(30sets),control system,one mold,cutter
Type3:semi-automatic crimped wire mesh machine
Technical parameter:
Wire diameter: 2.0-8.0mm
Width: 1.0--2.5m
Mesh size: 2*2--200*200mm
Outside size:3500*2100*1300mm
Weight:2.8Ton
Spare parts:wire crimped wire machine,cutter,one mold
Type4: hydraulic crimped wire mesh machine
Technical parameter:
Wire diameter: 7--16mm
Width: 1.0--2.5m
Mesh size: according mold
Outside size:3200*2400*1300mm
Weight:2.8Ton
Spare parts:wire crimping machine,cutter,one mold,control system
If you need ,pls contact me !!!!
