2.5mm Razor Barbed Wire Machine 220m/H Producing Speed
Fully automatic razor barbed wire machine expanded metal mesh machine
details of machine:
Razor barbed netting machine, also named as razor barbed wire machine, is specially used to manufacture razorbarbed wires.It mainly consists of punching razor strip machine,coiling wire machine and mould.The punchingrazor strip machine is used as punching the outside razor strip of razor wire .The coiling wire machine is usedas coiling the wire into the razor strip to form the finished razor wire .The mould decide the razor length ,widththe space.

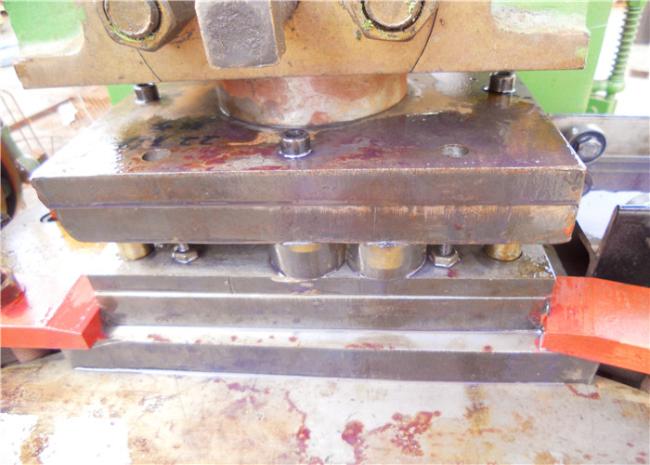

main punching machine
It mainly consists of punching machine ,mould ,decoiler and razor strip collector
| Type |
25T punching press (5 strips choice) |
40T punching press (9 strips choice) |
| Producing speed | 220-280m/h | 220-280m/h |
| Power | 2.2KW | 3.0KW |
| Rated Voltage | 380V,50HZ | 380V,50HZ |
| Overal Diamension | 1325MMX990MMX21400MM | 1600x1180x2310 |
| Weight | 1.9T |
3.2T |

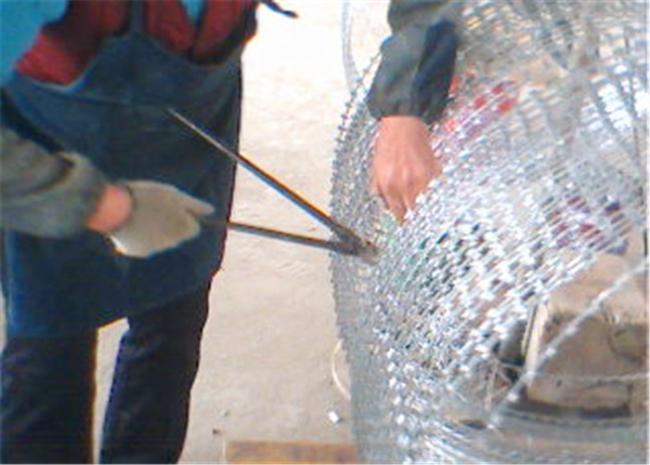

Coiling Wire Machine
It mainly consists of wire pay off stand ,razor strip laying shelf,wire coiling machine and razor wire collector.
| Overal Diamension | L*W*H:1100mmx750mmx1200mm |
| Rated Voltage | 380V |
| Power | 1.5kw |
| Producing speed | 80kg/h |
| 80kg/h | 300kg |
