Copper Plate Expanded Metal Machine 0.5mm 4mm For Filter Mesh
Anping Automatic Expended Mesh Machine
Our products has got certificates like: ISO9001:200 Certificate and we can do CE Certificate, SGS and so on as you requirements.
Production Introduction:
The machines are used for punching shear the cold crimped engine bed with the thickness of 1.2-2.5mm, the width of 2000mm, and Material strength of 450N/mm2. The specifications of punching shear are surveyed by the bit of TB5-20 mesh grid plate: If the TB, TL is increased, the punching shear strength is increased.
In order to not damage components for the excess load. The nominal tonnage is 63T. If TB, TL are reduced, the punching shear strength surpasses the nominal tonnage, you can reduce the material thickness and width to resolve.
The machines are used for punching all kinds of expand plate mesh in construction, common hardware, window and door, machine protecting etc.
Feeding mechanism passes the chain link by the main engine directly, the movement accurate is reliable.
The times of feed mechanism punching shear start from 0, it can shear at will scope.
Main Parameter
| Type | SH25-6.3 | SH25-16 | SH25-25 | SH25-63 | SH25-125 |
| Pounding thickness | ≤1.0mm | ≤1.2mm | ≤1.3mm | ≤2.5mm | ≤6mm |
| Pounding width | ≤500mm | ≤1000mm | ≤1250mm | ≤2000mm | ≤2500mm |
| Stocks per minute | 230/min | 160/min | 130/min | 70/min | 40/min |
| Short Distance | 1-10mm | 1-20mm | 5--30mm | 10-100mm | 10-120mm |
| Length Distance | 1--20mm | 2--30mm | 10-50mm | 20-200mm | 20-250mm |
| Press plate pressure | 63KN | 160KN | 250KN | 630KN | 1250KN |
| power | 2.2KW | 3KW | 4KW | 11KW | 22KW |
| Overall weight | 1.2T | 2.5T | 3T | 10T | 18T |
| Outside size (L*W*H)mm |
1090 *710 *1450 | 1800 *1400 *1870 | 1740 *1400 *2010 | 3560 *3500 *2300 | 5800 *3270 *1925 |
This machine adopts the mature technologies of the past as well as new technologies such as: full-automatic lubricating,NC steping motor feeding,etc. The main body is nodular cast iron. It has good effect,controllability,stability and safety has been greadtly increased. It has reasonable structure,elegant appearance. It is environmental production and energy saving.
It is suitable for the material as low carbon steel sheet,aluminium sheet,stainless steel sheet,aluminium magnesium alloy sheet,copper sheet,nickel sheet.
Our services:
1.Standardization of Service "212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2. Installation Service
Installation Services are available with all HYMT machines. We dispatch technician to customer's
factory for installation and preoperation of machines.
3. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
4. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.

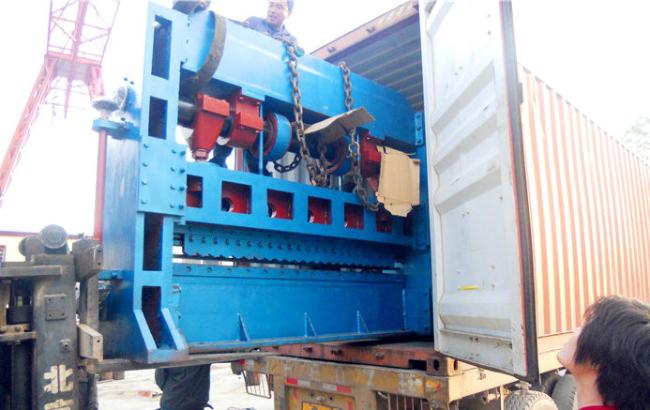

We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
