1500ml/H ~2000ml/H Glass Laboratory Spray Dryer for Tomato Milk Coffee Egg Powder Whey
Price:
$1999/unit
MOQ:
1 unit
Delivery Time:
7-15 work days
Brand:
Lanphan
Product Description
1500ml/H ~2000ml/H Glass Laboratory Spray Dryer for Tomato Milk Coffee Egg Powder Whey
Laboratory Spray Dryer Parameter
| Product Model | LPSD-2G |
| Air inlet temperature control | 30~300ºC |
| Air outlet temperature control | 30~150ºC |
| Evaporated water | 1500ml/h~2000ml/h |
| The largest feed rate | 2000ml/h |
| Feeding way | Peristaltic pump adjustment |
| Electric heater | 3.5KW AC220V |
| Draught fan | 0.55KW |
| Maximum quantity of wind | 5.6 m3/min |
| Maximum air pressure | 1020 Pa |
| Air compressor | 1.2 KW, the largest gas production 4.2 m3/h |
| Nozzle diameter | 1.00 mm /0.04inch(optional) |
| Package dimension (L*W*H) | 600*700*1200(mm) |
| Weight | 125KG(275.58lbs) |
Laboratory Spray Dryer Show
1. LCD touch screen
LCD touch screen parameter display, real-time regulation PID constant temperature control technology
2. Drying chamber
It's made of high borosilicate glass, which has good light transmittance and corrosion resistance.
3. Collection Bottle
When taking materials, turn off the peristaltic pump, and then turn on the peristaltic pump to continue the drying experiment.

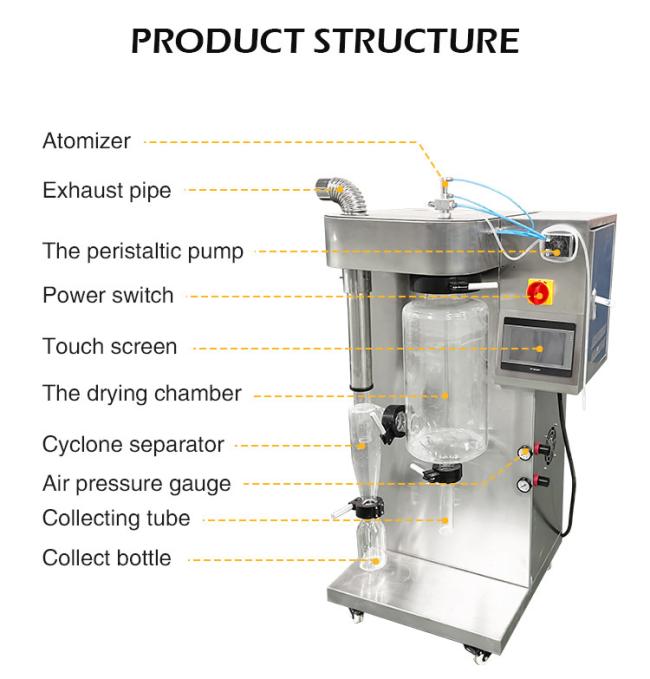

Laboratory Spray Dryer Structure
Laboratory Spray Dryer Product
Spray Dryer Machine Application
