5L Chemical Glass Distiller Equipment Electrical Lifting Rotary Vacuum Evaporator
5l mini chemical glass distiller equipment vacuum rotary vacuum evaporator price
Product Description
The R-1005Rotary Evaporator adopts stepless speed regulation to make the glass rotating flask rotate at a constant speed. Materials can form a large area of uniform thin film on the inner wall of the flask. Then the rotating flask is heated evenly by the intelligent constant temperature water bath, and the material is evaporated rapidly under the vacuum condition. The solvent steam is recycled in the receiving flask after being cooled by the high efficiency glass condenser.
Product Parameter
| Model | R-1005 | R-1010 | R-1020 | R-1050 |
| Ambient temperature (C) | 5~25 | |||
| Rotating speed (rpm) | 5-120 | |||
| Rotary motor (W) | 30 | 60 | 60 | 100 |
| Heating Temperature (C) | Digital temperature control, constant temperature -250C | |||
| Maximum vacuum degree (Pa) | 399.9Pa(under 3mmHg) | |||
| Rotary flask (L) | 5 | 10 | 20 | 50 |
| Receiving flask (L) | 3 | 5 | 10 | 20 |
| Evaporative capacity (L/H) | 2-water | 3-water | 5-water | 9-water |
| 5.4-Ethanol | 8-Ethanol | 14.3-Ethanol | 25-Ethanol | |
| Water bath material | Stainless steel | |||
| Water bath size (mm) | 280X170 | 350X220 | 450X250 | 550X320 |
| Lifting (mm) | 0-140 | 0-180 | 0-180 | 0-180 |
| Power (KW) | 2 | 3 | 5 | 6.5 |
| Voltage(V/Hz) | Single-phase 220V/60HZ (Voltage can be customized) | |||
| Dimension (mm) | 765x400X1070 | 920X550X1700 | 1250X600X2100 | 132X770X2340 |

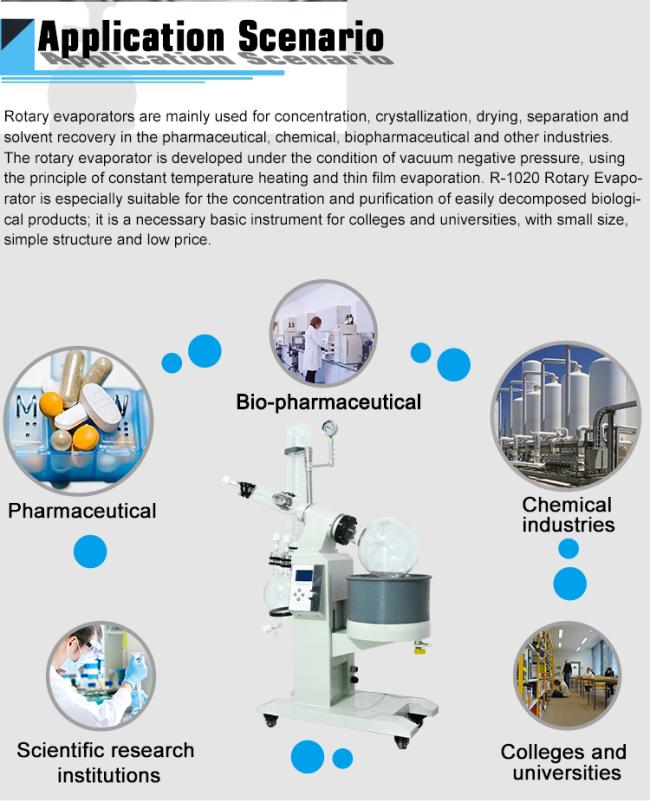

Application Scenario
Rotary evaporators are mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical, biopharmaceutical and other industries.The rotary evaporator is developed under the condition of vacuum negative pressure, using the principle of constant temperature heating and thin film evaporation. R-1020 Rotary Evaporator is especially suitable for the concentration and purification of easily decomposed biological products; it is a necessary basic instrument for colleges and universities, with small size, simple structure and low price.
