High electric conductivity pyrolytic carbon graphite heat spreader sheet paper with pet film

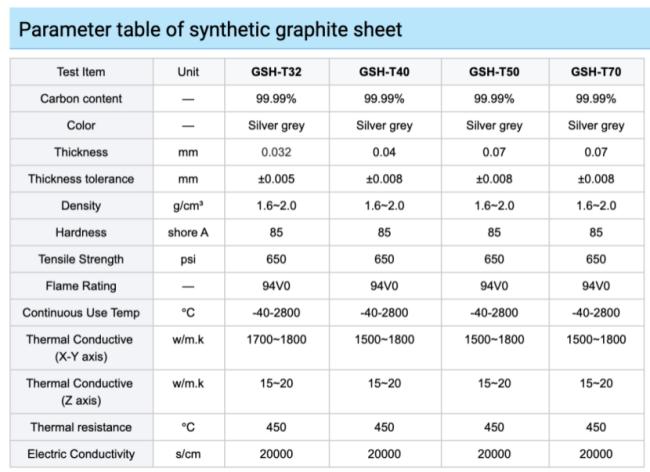

Features of synthetic graphite sheet:

★ Ultra-high thermal conductivity —the maximum thermal conductivity in the plane can reach 1900

W/m.k (2 to 5 times as high as copper, 3 to 8 time as high as aluminum).

★ Ultralight —30% lighter than aluminum of the same size and 80% lighter than copper.

★ Ultra-thin —the thickness can be from 0.012 to 0.07mm.

★ Low thermal resistance

★ Temperature resistance —the maximum operating temperature can reach 2800℃ and the minimum can be lower than -40℃.

★ easy processing —can be die-cut into different sizes, shapes.

★ Flexibility —it is easy to laminate with metal, insulating or double-sided adhesive to increase design flexibility and can be processed with adhesives
