Mercedes X164 W164 1643200626 Air Suspension Sleeve
Air Ride Suspension Sleeve Air Balloon For Mercedes X164 W164 Rear Air Spring 1643200626 1643201025
PRODUCT DESCRIPTION

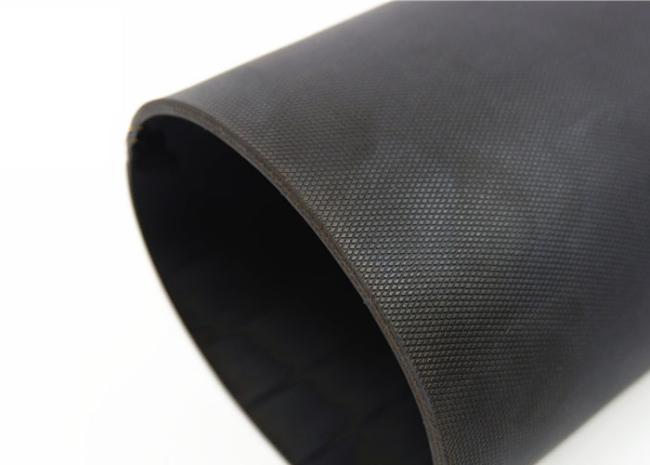

GZ Bravo's Air Suspension Rubber Sleeves mostly consists of 4 layers, one layer inner rubber, two layers cord fabrics and one outer rubber. The rubber use the imported Malaysia natural rubber and Chloroprene rubber. And the cord fabrics use the famous "Shenma" brand. Because of the strict raw material control and advanced technology, so our rubber sleeves can meet the same performance standard as Germany-made original rubber bellows. Only good rubber sleeve can support air suspension spring or air suspension shock long life.
| Item | Air Suspension Sleeve |
| Vehicle For | Mercedes-Benz GL ML Class ML280 ML300 ML320 ML350 GL350 GL450 |
| OEM Numbers | 1643206013 1643202213 1643204313 1643204613 1643205212 1643205813 |
| Material | Natural Rubber, Chloroprene rubber,Cord Fabrics |
| A-End-Diameter | 137 MM |
| B-End-Diameter | 106 MM |
| Length | 360 MM |
| Thickness | 3.0 MM |
| Layers | 4 Layers |
| Hardness | Soft, High quality |
PRODUCT FIT FOR
Mercedes-Benz
ML/GL-Class W164 X164 Rear
ML 280
ML 300
ML 320
ML 350
ML 420
ML 450
GL 320
GL 350
GL 420
GL 450
GL 500
REFERENCE OE/OEM NUMBER
1643200625
1643200225
1643200425
1643200825
1643200925
1643201025
1643200725
GZ BRAVO AIR SUSPENSION RUBBER SLEEVE MAIN CATALOGUE
| NO. | Car Brand | Car Model | Position | Length (MM) | SIZE ( Units MM) | ||
| Thickness (MM) | A-Outside Diameter | B Outside diameter | |||||
| A-OD | B-OD | ||||||
| 1 | Mercedes-Benz | W164/W251 | Front | 340 | 3.00 | 133 | 101 |
| 2 | Mercedes-Benz | W164/W251 | Rear | 360 | 3.00 | 137 | 106 |
| 3 | Mercedes-Benz | W220 | Front | 145 | 2.00 | 125 | 92 |
| 4 | Mercedes-Benz | W220 | Rear | 300 | 2.00 | 101 | 88 |
| 5 | Mercedes-Benz | W221 | Front | 145 | 2.00 | 128 | 96 |
| 6 | Mercedes-Benz | W221 | Rear | 155 | 2.00 | 132 | 96 |
| 7 | Mercedes-Benz | W211 | Front | 210 | 3.00 | 126 | 85 |
| 8 | AUDI | A6C5 | Front | 355 | 3.00 | 122 | 98 |
| 9 | AUDI | A6C5 | Rear | 400 | 3.00 | 105 | 95 |
| 10 | AUDI | A6C6 | Front | 190 | 2.50 | 124 | 88 |
| 11 | AUDI | Q7/Cayenne | Front | 260 | 3.00 | 144 | 94 |
| 12 | AUDI | Q7/Cayenne | Rear | 270 | 3.00 | 132 | 84 |
| 13 | AUDI | A8D3 | Front | 230 | 2.50 | 126 | 85 |
| 14 | AUDI | A8D3/Panamera | Rear | 230 | 3.00 | 122 | 96 |
| 15 | AUDI | A8D4 | Front | 190 | 2.50 | 126 | 88 |
| 16 | AUDI | A8D4 | Rear | 230 | 3.20 | 126 | 96 |
| 17 | BMW | E66 | Rear | 300 | 2.00 | 101 | 88 |
| 18 | BMW | E70 | Rear | 345 | 3.20 | 102 | 98 |
| 19 | BMW | E53 | Front | 310 | 3.00 | 140 | 96 |
| 20 | BMW | E53 | Rear | 340 | 3.00 | 128 | 80 |
| 21 | BMW | E39 | Rear | 287 | 3.00 | 127 | 80 |
| 22 | BMW | GT/E61 | Rear | 350 | 3.00 | 80 | 80 |
| 23 | BMW | F02/Phaeton Front | Rear | 200 | 2.50 | 128 | 93 |
| 24 | Land Rover | L322 | Front | 400 | 3.20 | 167 | 101 |
| 25 | Land Rover | Discover 3/Sport | Front | 340 | 3.00 | 122 | 96 |
| 26 | Land Rover | Discover 3/Sport | Rear | 310 | 2.80 | 162 | 96 |
| 27 | Porsche | Panamera | Front | 230 | 3.00 | 132 | 84.00 |
| 28 | Jaguar | XJ60,XJ70 | Front | 225 | 2.00 | 101 | 91 |
| 29 | Jaguar | XJ60,XJ70 | Rear | 225 | 2.00 | 101 | 91 |
