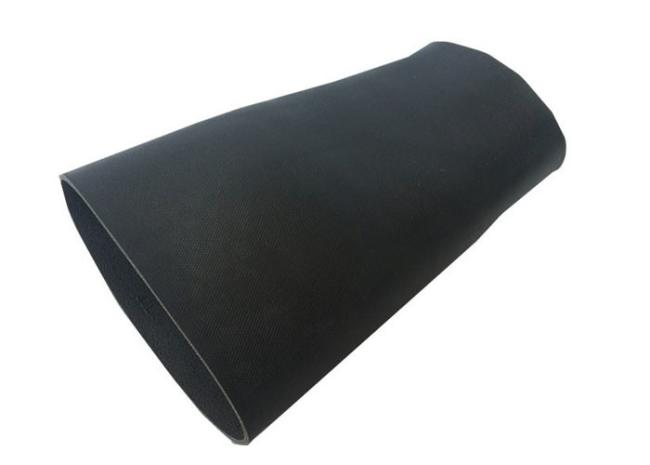

Porsche Panamera Rear 4e0616001e Air Suspension Sleeve
Porsche Panamera Rear Air Suspension Rubber Sleeve Air Bellow 4E0616001E 3W0616039T 9703353314
PRODUCT DESCRIPTION
GZ Bravo's Porsche Panamera Rear Air Bellow mostly consists of 4 layers, one layer inner rubber, two layers cord fabrics and one outer rubber. The rubber use the imported Malaysia natural rubber and Chloroprene rubber. And the cord fabrics use the famous "Shenma" brand. Because of the strict raw material control and advanced technology, so our rubber sleeves can meet the same performance standard as Germany-made original rubber bellows. Only good rubber sleeve can support air suspension spring or air suspension shock long life.
| Item | Air Suspension Sleeve |
| Vehicle For | Audi A8D3 Quattro Rear / Porsche Panamer 970 Rear |
| OEM Numbers | 4E0616001E 3W0616039T 9703353314 |
| Material | Natural Rubber, Chloroprene rubber,Cord Fabrics |
| A-End-Diameter | 122 MM |
| B-End-Diameter | 96 MM |
| Length | 230 MM |
| Thickness | 3.0 MM |
| Layers | 4 Layers |
| Hardness | Soft, High quality |
PRODUCT FIT FOR
AUDI A8D3 Rear
Porsche Panamera 970 Rear
REFERENCE OE/OEM NUMBER
AUDI A8D3 Rear
4E0616001E
4E0616002E
4E0616001G
4E0616001N
4E0616002H
4E0616002F
4E0616002N
Porsche Panamera 970 Rear
9703353331
9703353314
9703353315
9703353316
9703353317
GZ BRAVO AIR SUSPENSION RUBBER SLEEVE MAIN CATALOGUE
| NO. | Car Brand | Car Model | Position | Length (MM) | SIZE ( Units MM) | ||
| Thickness (MM) | A-Outside Diameter | B Outside diameter | |||||
| A-OD | B-OD | ||||||
| 1 | Mercedes-Benz | W164/W251 | Front | 340 | 3.00 | 133 | 101 |
| 2 | Mercedes-Benz | W164/W251 | Rear | 360 | 3.00 | 137 | 106 |
| 3 | Mercedes-Benz | W220 | Front | 145 | 2.00 | 125 | 92 |
| 4 | Mercedes-Benz | W220 | Rear | 300 | 2.00 | 101 | 88 |
| 5 | Mercedes-Benz | W221 | Front | 145 | 2.00 | 128 | 96 |
| 6 | Mercedes-Benz | W221 | Rear | 155 | 2.00 | 132 | 96 |
| 7 | Mercedes-Benz | W211 | Front | 210 | 3.00 | 126 | 85 |
| 8 | AUDI | A6C5 | Front | 355 | 3.00 | 122 | 98 |
| 9 | AUDI | A6C5 | Rear | 400 | 3.00 | 105 | 95 |
| 10 | AUDI | A6C6 | Front | 190 | 2.50 | 124 | 88 |
| 11 | AUDI | Q7/Cayenne | Front | 260 | 3.00 | 144 | 94 |
| 12 | AUDI | Q7/Cayenne | Rear | 270 | 3.00 | 132 | 84 |
| 13 | AUDI | A8D3 | Front | 230 | 2.50 | 126 | 85 |
| 14 | AUDI | A8D3/Panamera | Rear | 230 | 3.00 | 122 | 96 |
| 15 | AUDI | A8D4 | Front | 190 | 2.50 | 126 | 88 |
| 16 | AUDI | A8D4 | Rear | 230 | 3.20 | 126 | 96 |
| 17 | BMW | E66 | Rear | 300 | 2.00 | 101 | 88 |
| 18 | BMW | E70 | Rear | 345 | 3.20 | 102 | 98 |
| 19 | BMW | E53 | Front | 310 | 3.00 | 140 | 96 |
| 20 | BMW | E53 | Rear | 340 | 3.00 | 128 | 80 |
| 21 | BMW | E39 | Rear | 287 | 3.00 | 127 | 80 |
| 22 | BMW | GT/E61 | Rear | 350 | 3.00 | 80 | 80 |
| 23 | BMW | F02/Phaeton Front | Rear | 200 | 2.50 | 128 | 93 |
| 24 | Land Rover | L322 | Front | 400 | 3.20 | 167 | 101 |
| 25 | Land Rover | Discover 3/Sport | Front | 340 | 3.00 | 122 | 96 |
| 26 | Land Rover | Discover 3/Sport | Rear | 310 | 2.80 | 162 | 96 |
| 27 | Porsche | Panamera | Front | 230 | 3.00 | 132 | 84.00 |
| 28 | Jaguar | XJ60,XJ70 | Front | 225 | 2.00 | 101 | 91 |
| 29 | Jaguar | XJ60,XJ70 | Rear | 225 | 2.00 | 101 | 91 |
