Range Rover Block Valve Performance :

         The Air Suspension Air Ride Supply Solenoid Valve Block is responsible for distributing the air between the Air

Suspension Compressor and the Air Struts or Air Spring Bags in your vehicle. When the O-Rings dry rot and there is an air leak

or the electrical components go bad in your Air Suspension Valve Block, you will need to replace it. GZ Bravo Air Suspension

Compressor Solenoid Valve Block  For VW Touareg offer customers genuine quality standard product with 12 months warranty.

What happens if the Air Suspension Valve Control Unit failured?


If the Air Suspension Valve Control Unit failed, air may be leaked back to the compressor or the central air reservoir. This can

cause the vehicle to not maintain the ride height required. So the failed valve block should be replaced asap.

It does not take very ling to replace this part and you can complete it by yourself !

Just follow these steps to complete the replacement:

1. Drain AIRmatic system using Diagnosis;

2. Remove compressor; Detach plug from AIRmatic pressure sensor;

3. Detach valve unit connector; Undo pressure line terminals;

4. Undo nuts (arrows) and remove level control;

5. Remove rubber buffer to level control valve;

6. Install in the reverse order; Fill AIRmatic system using Diagnosis;

7. Check AIRmatic for leaks.

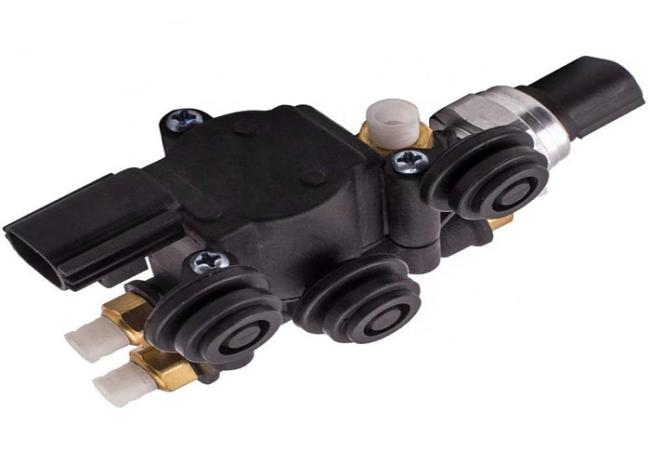

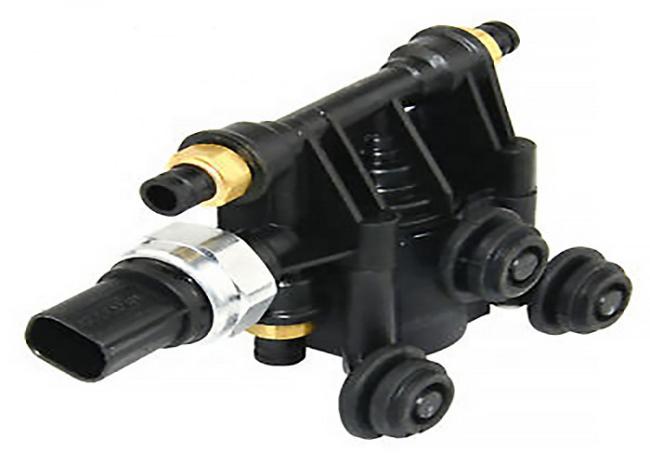

Details of Picture:
