Balloon Light Winch Up 9M 10KG Aluminum Body Portable LED Light Towers
Balloon Light Winch Up 9M 10KG Load Mobile Light Tower Portable Working Light Pole
product introduction:
we supply telescopic mast up to 20m,it can bear payload less than 10kg,usually used as antenna mast,communication tower,
light support,camera mast and so on
A.it can be adjusted to any length
B.it can be mounted on the vehicle or stand on the ground with tripod
material:usually aluminum alloy
Hand winch up
| Mast height | Sections | Tube size |
| 3m, 4m | 3 | 35/40/45mm |
| 5m, 6m | 4 | 35/40/45/50mm |
| 7m, 8m, 9m | 6 | 60mm |
| 10-18m | 8-9 |
Hand push up
| Mast height | Sections | Tube size |
| 3m, 4m | 3 | 35/40/45mm |
| 5m, 6m | 4 | 35/40/45/50mm |
| 7m, 8m, 9m | 6 | 35-60mm |
| 10-18m | 8-9 |
product photo:
features:
Emergency Response Antenna Systems, Restricted Space Antennas - Prepping Systems
Elevated Photography - Weather Instruments - WiFi Site Surveying - End Zone Cameras-light tower
Testing wireless cables,
Measuring field strength
Mounting Lighting arrestors and CCTv Cameras
Radio Survey
Temporary Flood lights
O.D Communication Van
Fixed and Mobile Radio communication
Conducting geodesic surveying
Handling any emergency work
Providing temporary illumination
Jamming unwanted radio signals
Remote surveillance
Usually these masts require a flat or socket wrench, with the quick release clamps you can raise and lower the masts without any tools.
Even with limited space these quick clamps can be easily used, because the lever can be adjusted at any position. Just pull out and release the lever, the strong spring latches the lever at the desired position.
Attentions:
The mast can be extended to any length and securely locks into place by means of a massive clamp. The maximum allowed extended length is marked by a color ring approx. 20cm before the end of each tube. There is no fixed stop which makes it advisable to approach the marking slowly when extending the telescopes.
These masts are ideally suited for portable applications due to the low weight and the telescopic mechanism. When setting up the mast please pay special attention to the clamping length; the clamping length of the mast must be at least 1/6th of the extended length, or at least 1 meter at the minimum. When extending the mast more than 6 meters measured from the uppermost clamping point additional guys are mandatory.
The tubes are made of weather-proof aluminum alloy. The tubes are tapered by 5 mm and the tube thickness is 2mm. Please refer to the following table for weight and dimensions. The stated additional forces refer to a horizontally applied force at the tip of the extended mast - without guys and a mast clamping length of 1/6th. The calculation includes the inherent load at a wind speed of 50km/h (which is equivalent to a wind force of 7).
also we can produce according to clients special requests, and can give proposals.
Packing, delivery tiem, and shipping:

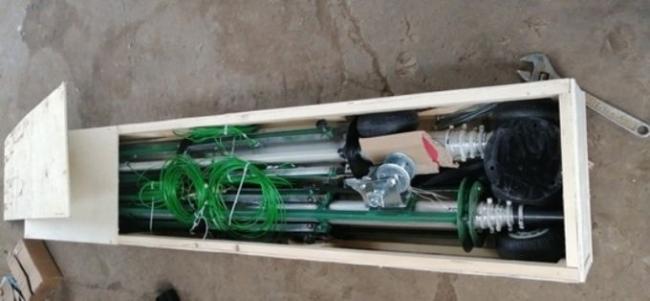

We will close then pack the goods safely in solid wooden box.
Prodcution lead time for sample: 2 weeks; 4 weeks for bulk order
Ship by sea, air, or express according to your request.
