Acrylic PVC 8000mm/min 24000rpm 1325 CNC Router Machine
8000mm/Min 1325 CNC Router Machine For Acrylic PVC
|
XYZ Travel Size |
1320X2520X150mm | |
|
Max Working Size |
1300X2500X120mm | |
| Table Size | 1400X2500mm | |
| Transmission Type | XY rack/Z ball screw | |
| Guide Rail | Linear Guide | |
| Table Type | T slot | |
| Spindle Power |
3KW/5.6EL 3KW China water cool 5.6KW Italy Elte spindle |
|
| Spindle Speed | 24000/18000rpm | |
|
Max Travel Speed |
14000mm/min | |
|
Max Processing Speed |
12000mm/min | |
| Motor |
Stepper or Servo |
|
| Work Voltage | AC380V 50HZ | |
|
Controller System |
Ncstudio or DSP |
|
|
Processing Accuracy |
±0.05mm | |
|
Repeat Positioning Accuracy |
±0.01mm | |
| File Format | G CODE /PLT; G code or PLT | |
| Overall Weight | 1100KG | |
|
Overall Dimension |
1950X3000X1600mm |
Applications and Materials
Woodworking Industry: Automotive Trim,Stereo Equipment,Instruments,Office Furniture,Closet,etc
Sign Industry: Channel Letter,Mini Letter,signs, etc

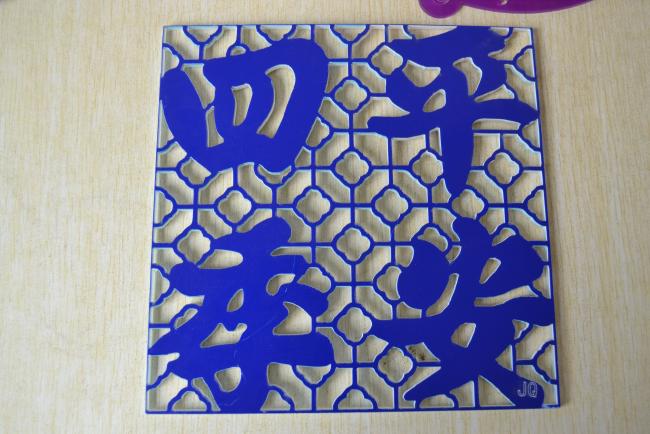

Crafts Industry: solid wood,artificial stone,marble,sandstone,aluminum composite panel,bamboo,soft metal,PVC,acrylic,double color board, etc
Highlights
1.Integral welded Frame, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability
2.Various of table styles makes convenient clamping materials and improves overall production efficiency
3.Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
4. Main configurations adopts imported accessories which will ensure the overall running performance
5.Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.
