1530A 24000RPM 6kw Woodworking CNC Router Machine
Price:
Negotiable
MOQ:
1 SET
Delivery Time:
Negotiable
Brand:
Unitec
Product Description
Advanced CNC Processing Woodworking CNC Router Machine Humanized Operation
Technical parameters
| Parameters | Standard Specifications 1530A |
| X,Y,Z Working Area | 1300*2500*200mm|4´*8´ |
| Optional Working Area | 1300*1300*200mm|4´*4´ |
| 1500*3000*200mm|5´*10´ | |
| 2000*3000*200mm|6´*10´ | |
| 2000*4000*200mm|6´*13´ | |
| 2000*6000*200mm|6´*20´ | |
| Spindle Power | 6kw Italy HSD air cooling spindle |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/2000mm |
| Table Surface | Vacuum table+Intergrated T-solt table clamping System |
| X,Y,Z Rail and Trasmission | X Y axis gear transmission, Z axis TaiwanTBI Ball Screw |
| Max. Rapid Travel Rate | 80m/min |
| Max. Working Speed | 60m/min |
| Cutting thickness | According materials |
| Spindle Speed | 6000-24000RPM |

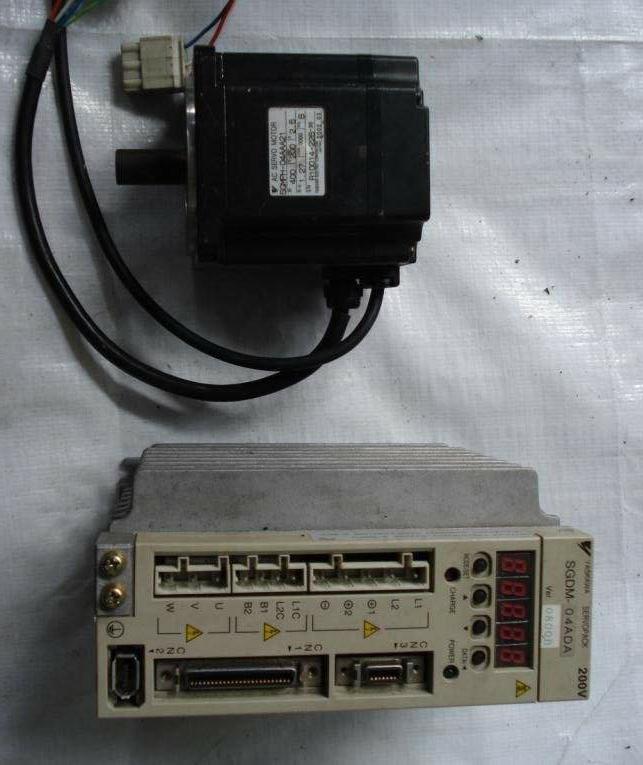

| Drive Motors | Japanese Yaskawa Servo Drive System |
| Working Voltage | AC380v/50HZ/3 phase |
| Command Language | G code |
| Operating System | Taiwan Syntec 6MB control system |
| Interface | USB |
| Software Compatibility | Option:BCAMPRO/VCarve/VCarve Pro/ArtCAM/UCANCAM,etc. |
| Running Environment | Temperature: -20℃~45℃ Relative Humidity: 5%~75% |
Inner quality control system
- In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
- Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
- 18 months guarantee of the whole machine.
- Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
- Lifetime maintenance free of charge.
- We will provide the consumable parts at an agency price when you need replacement.
- Machine has been adjusted before delivery.
- Our staff can be sent to your company to install or adjust if necessary.
Certificate
-
CE certificated for European countries
-
CCVO SONCAP certificated for Nigeria customers
-
FTA certificate for Pakistan customers
-
SASO certificate for Saudi Arabic customers
-
Form E certificate for Indonesia and Vietname customers
Packaging & Delivery
Packaging Details:
- Outside package: Standard marine export plywood case.
- Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment
