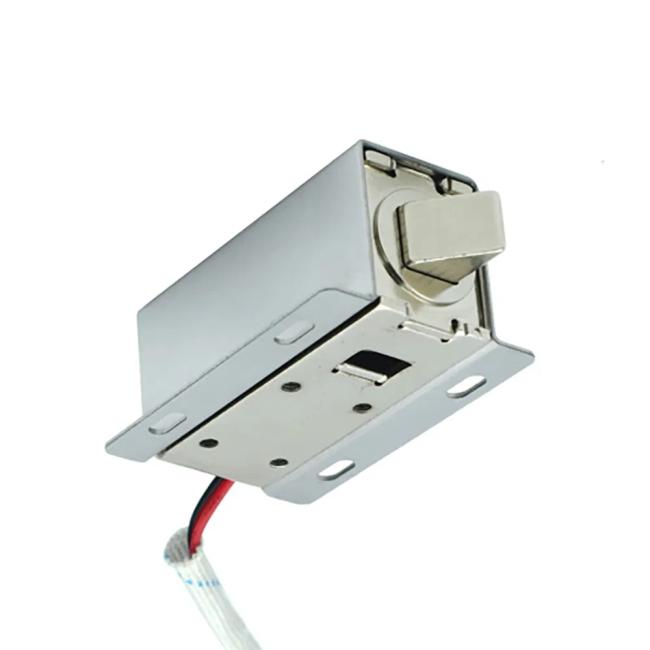

Dason s U1088L Solenoid Door Lock The Perfect Solution for Secure and Convenient Access Control in Cabinets Drawers and More
Price:
10USD
MOQ:
500
Delivery Time:
20days
Brand:
Dason
Product Description
Product Description
| Specification | |||
| Brand | Dason | Product Name | Stroke 10mm U1088L Magnetic Solenoid Lock |
| Model | SHL1088L | Rated Voltage | DC 12V/24V |
| Power | 8W | Current | / |
| Hi-Pot Test | AC600V 50/60Hz 2s | Duty Cycle | 10-100% |
| Cable Length | 200mm/Custom | Material | Steel&enaamelled Wire |
| Action Form | Push pull | Weight(N.W.) | 0.18kg |
| Install Style | Screw | Insulation Class | B |
| Packaging Details | |||
| Body Size | L54*W28H23.5(mm) | Packing Box Size(cm) | 350*310*180(mm), accept custom |
Product Features
1. Made of high quality pure carbon steel, electrophoretic paint surface treatment, corrosion resistance
2. Adjustable elasticity, suitable cabinet door, automatically popped open with power on
3. small size, regardless of the left and right, easy to install
![]()
![]()
4.Working mode: independent (power-off door locking, power-on instant trigger open lock)
5. more than 1 millon times under rated working conditions, the locking hook can carry 150 kg class pull without obvious deformation
Q: Are tiy trading company or manufacturer?
A: We are original factory.
Q: How to choose a solenoid/electromagnet?
A: Following parameters should be provided: voltage(DC/AC), power, current, resistance, stroke, force,dimension limit, force, residual force, duty cycle and etc.
Q: How long is your delivery time?
A: Generally is 3-10 days if the goods are in stock and sometimes need 15-20 days if goods are not in stock. It also depends on the order quantity.
Q: What is terms of payment?
A: If payment <= $1000, it would need 100% payment in advance and it can be 50% payment in advance if payment > $1000.
Q: Is there any extra charges if we want you to print our logo or company name on your products or packaging?
A: Threre's no extra fee. Please offer us the logo files and we'll make it well on your peoduct.
A: We are original factory.
Q: How to choose a solenoid/electromagnet?
A: Following parameters should be provided: voltage(DC/AC), power, current, resistance, stroke, force,dimension limit, force, residual force, duty cycle and etc.
Q: How long is your delivery time?
A: Generally is 3-10 days if the goods are in stock and sometimes need 15-20 days if goods are not in stock. It also depends on the order quantity.
Q: What is terms of payment?
A: If payment <= $1000, it would need 100% payment in advance and it can be 50% payment in advance if payment > $1000.
Q: Is there any extra charges if we want you to print our logo or company name on your products or packaging?
A: Threre's no extra fee. Please offer us the logo files and we'll make it well on your peoduct.

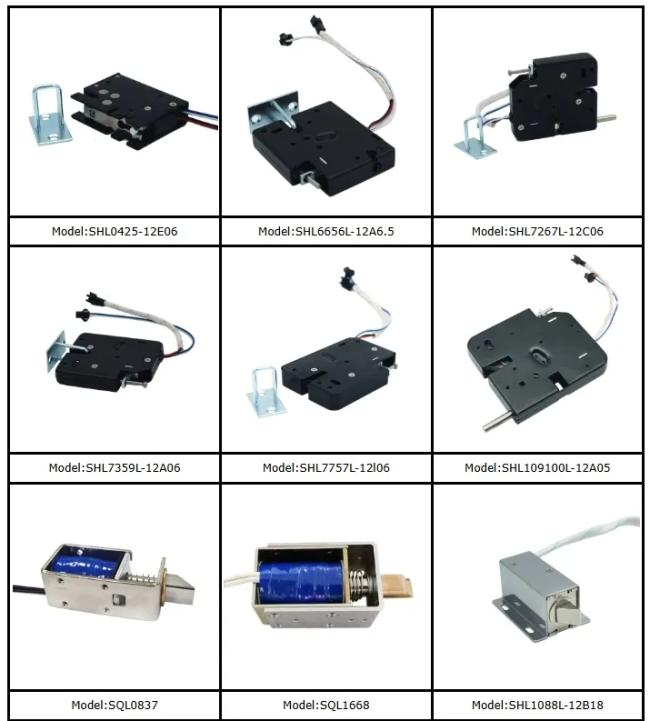

Similar Products
