VOE14589125 VOE 14589125 Bucket Cylinder Seal Repair Kit For EC120D EC120C EC300D
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

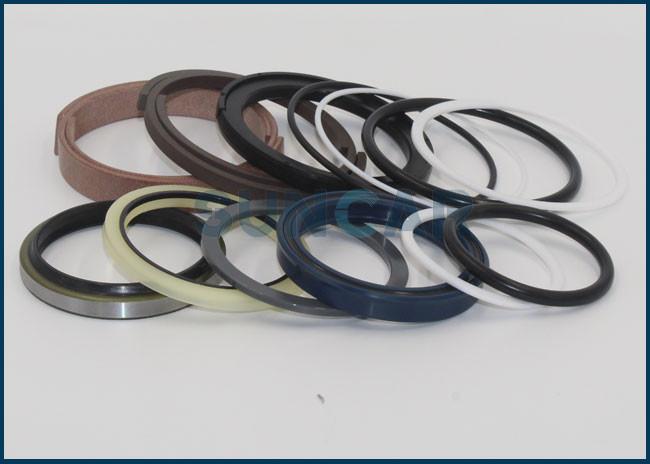

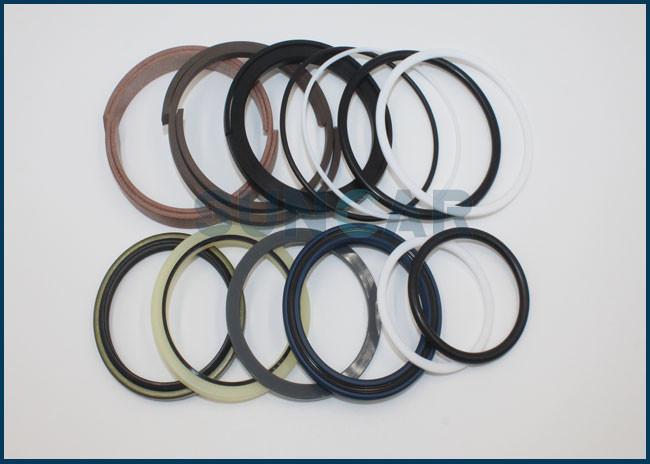

VOE14589125 VOE 14589125 Hydraulic Cylinder Seal Repair Kit for EC120D EC120C EC300D
Description: SUNCARSUNCARSUNCARSUNCARVOLVO cylinder seal kit
| Product name | VOE14589125 VOE 14589125 Hydraulic Cylinder Seal Repair Kit for EC120D EC120C EC300D |
| Brand name | SUNCAR |
| Part number |
VOE14589125 VOE 14589125 |
| MOQ | Accept trial order |
| Fit equipment | Bucket cylinder |
| Material |
Rubber |
| Features | Good heat resistance; Smaller plastic deformation rate;Excellent flexibility Good abrasion resistance;Excellent oil/chemical resistance;Minimize oil leakage |
| Material | Steel |
| Medium | Hydraulic oils, mineral hydraulic oils, water and water / glycol emulsion. |
| Compatible models | SUNCARSUNCARSUNCARSUNCARVOLVO |
| Condition | 100 % new,brandnew |
| Quality | High strength, high temperature resistance, high pressure resistance, good performance |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Working temperature | High temperature resistant |
| Size specifiC-A-Tion | Standard size |
Compatible Models:
| EC210C | EC240C | EC290C | ECR145C |
| EC140C | EC290B | EW145B | EC240B |
| EC300D | EC250D | EC220D | EC140D |
| ECR145D | EC250E | EC300E | EC220E |
| EC140E | ECR145E | EC120D | EC210D |
Parts on Group :
| Pos. | Part No | Qty | Parts name |
| VOE14536959 | [1] | Bucket cylinder | |
| VOE14554982 | Bucket cylinder | ||
| 1 | [1] | Tube | |
| 2 | VOE14517946 | [1] | Bushing |
| 3 | VOE14503887 | [2] | Seal |
| 4 | VOE914167 | [1] | LubriC-A-Ting nipple |
| 5 | VOE14543851 | [1] | Rod |
| 6 | VOE14517949 | [1] | Bushing |
| 7 | VOE14560203 | [2] | Seal |
| 8 | VOE914167 | [1] | LubriC-A-Ting nipple |
| 9 | [1] | Head | |
| 10 | SA9612-07040 | [1] | Bearing |
| 11 | SA9557-06000 | [1] | Retaining ring |
| 12 | SA9556-07000 | [1] | Retaining ring |
| 13 | VOE14522847 | [1] | Cushion |
| 14 | [1] | Piston | |
| 15 | VOE14549124 | [1] | Washer |
| 16 | VOE14524623 | [1] | Lock nut |
| 17 | VOE14535763 | [1] | Screw |
| 18 | VOE13949445 | [11] | Screw |
| 19 | SA9564-20700 | [1] | Seal |
| 20 | SA9567-20701 | [1] | Back-up ring |
| 21 | SA9563-20701 | [1] | Seal |
| 22 | SA1146-08170 | [1] | Seal |
| 23 | SA9566-10900 | [1] | Back-up ring |
| 24 | VOE990640 | [1] | O-ring |
| 25 | SA9566-40950 | [1] | Back-up ring |
| 26 | VOE990595 | [1] | O-ring |
| 27 | SA9566-30600 | [1] | Back-up ring |
| 28 | VOE990633 | [1] | O-ring |
| 29 | VOE14510892 | [1] | Seal |
| 30 | SA9568-01000 | [2] | Seal |
| 31 | SA9565-11000 | [2] | Wear ring |
| 100 | VOE14589125 | [1] | Sealing kit |
