K9001901 Arm Cylinder Seal Repair Kit For DX220A DX220AF DX225LC DX225LCA DX225LL DX225NLC DX225NLCA DX230LC DX235NLC
K9001901 Cylinder Seal Repair Kit for DX220A DX220AF DX225LC DX225LCA DX225LL DX225NLC DX225NLCA DX230LC DX235NLC

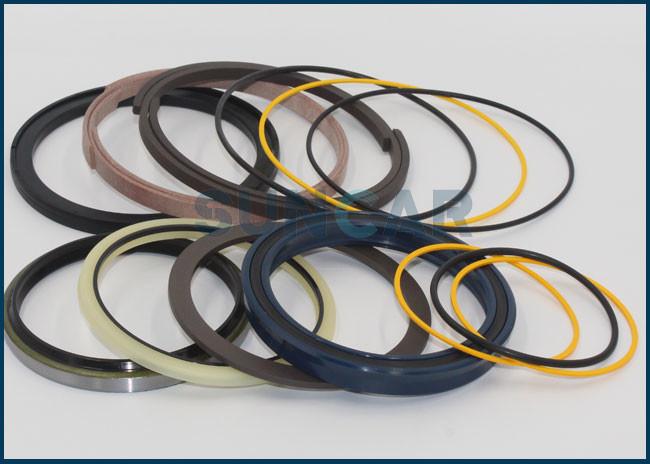

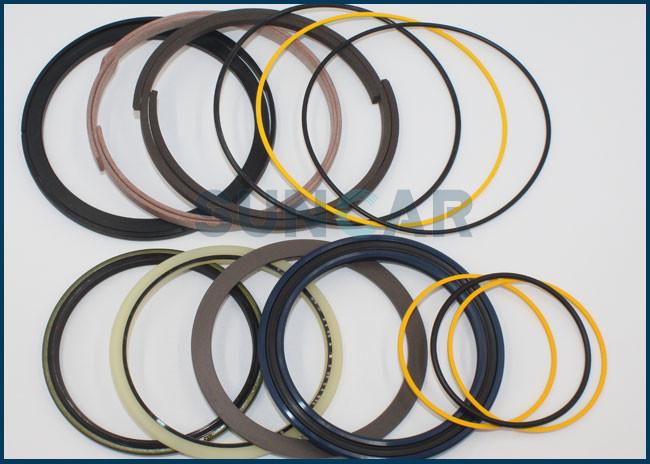

Description:This seal kit is hydraulic cylinder seal kit,compatible for DOOSAN.Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
| Product name | K9001901 Cylinder Seal Repair Kit for DX220A DX220AF DX225LC DX225LCA DX225LL DX225NLC DX225NLCA DX230LC DX235NLC |
| Brand name | SUNCAR |
| MOQ | 10 sets |
| Material |
PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Feuture |
Toughness/Wear resistance/High&low temperature resistence |
| Payment | Paypal, T/T, Western Union, ,Bank Transfer |
| Paking details | PP bag inside,carton box outside. |
| Original place | Guangdong,China |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
CertifiC-A-Tion |
ISO9001 |
| Compatible Model | DOOSAN DX220A DX220AF DX225LC DX225LCA DX225LL DX225NLC DX225NLCA DX230LC DX235NLC |
|
Availability |
In stock |
| AppluC-A-Tion | Excavator&Hydraulic systerm |
| Hardness | 70-90 Shore A |
Parts on Group:
| Pos. | Part No | Qty | Parts name |
| *. | K9001901 | [1] | SEAL KIT;ARM CYLINDER |
| -. | K1023861 | [1] | ARM CYLINDER |
| 1 | K9003683 | [1] | TUBE ASS'Y |
| 10 | K9001884 | [1] | RING;BACK UP |
| 11 | 115-00077 | [1] | WIPER;DUST |
| 12 | 115-00078 | [1] | RING;RETAINING |
| 13 | S8011351 | [1] | O-RING |
| 14 | 1.180-00662 | [1] | RING;BACK UP |
| 15 | 2180-1217D96 | [1] | O-RING |
| 16 | K9001893 | [1] | RING;CUSHION |
| 17 | K9001894 | [1] | PISTON |
| 18 | K9001148 | [1] | SEAL;SLIPPER |
| 19 | 115-00079 | [2] | RING;WEAR |
| 2 | K1000737 | [1] | BUSH |
| 20 | K9001149 | [2] | RING;DUST |
| 21 | S8010801 | [1] | O-RING |
| 22 | K9001895 | [2] | RING;BACK UP |
| 23 | K9001896 | [1] | NUT;RISTON |
| 24 | 1.120-00219 | [1] | SCREW;SET |
| 25 | K9001897 | [1] | PLUNGER;CUSHION |
| 26 | 115-00081 | [1] | RING;STOP |
| 27 | S2222272 | [14] | BOLT;SOCKET |
| 28 | 1.420-00050 | [1] | VALVE;CHECK |
| 29 | 129-00071 | [1] | SPRING |
| 3 | K9001880 | [1] | ROD ASS'Y |
| 30 | 1.195-00022 | [1] | SUPPORT;SPRING |
| 31 | 2181-1116D3 | [1] | PLUG;HEX. SOCKET |
| 32 | K9001899 | [1] | PIPE BAND ASS'Y-A |
| 33 | 124-00052 | [1] | BAND;PIPE |
| 34 | S5100703 | [4] | WASHER;SPRING |
| 35 | S0560563 | [4] | BOLT |
| 36 | K9003684 | [2] | PIPE BAND ASS'Y |
| 37 | K9003685 | [1] | PIPE ASS'Y-R |
| 38 | S8000341 | [1] | O-RING |
| 39 | S5100703 | [4] | WASHER;SPRING |
| 4 | K1000737 | [1] | BUSH |
| 40 | S2215961 | [4] | BOLT;SOCKET |
| 41 | K9003686 | [1] | PIPE ASS'Y-H |
| 42 | S8000341 | [1] | O-RING |
| 43 | S5100603 | [4] | WASHER |
| 44 | S2212861 | [4] | BOLT;SOCKET |
| 45 | K9001159 | [1] | CLAMP;PIPE |
| 46 | S5102903 | [1] | WASHER |
| 47 | S0521853 | [1] | BOLT |
| 48 | K9001158 | [2] | U-BOLT |
| 49 | S5100603 | [4] | WASHER |
| 5 | K9001881 | [1] | ROD;COVER |
| 50 | S4012633 | [4] | NUT |
| 51 | S6710032 | [1] | NIPPLE;GREASE |
| 6 | 110-00081 | [1] | DD-BUSH |
| 7 | 115-00073 | [1] | RING;RETAINING |
| 8 | K9001882 | [1] | SEAL;BUFFER |
| 9 | K9001883 | [1] | U-PACKING |
