YW01V00003R100 Bucket（Long Range ) Cylinder Piston Rod Seal Kit For KOBELCO SK100 SK100L SK120 SK120LC SK200 SK200LC
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

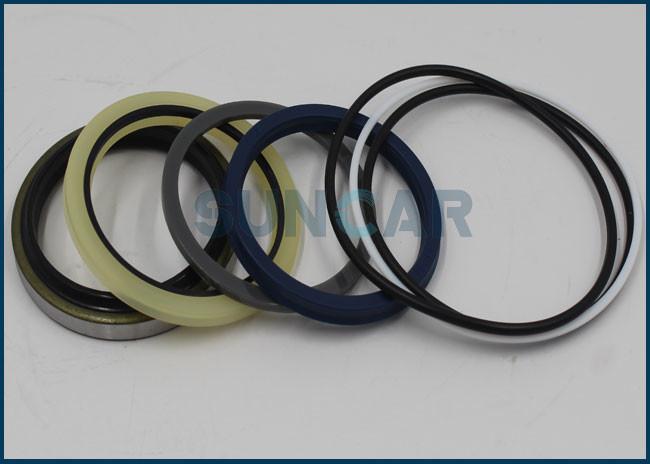

YW01V00003R100 Bucket(long Range) Cylinder Piston Rod Seal Kit For KOBELCO SK100 SK100L SK120 SK120LC SK200 SK200LC
Description: YW01V00003R100
| Product name | YW01V00003R100 Bucket(long Range) Cylinder Piston Rod Seal Kit For KOBELCO SK100 SK100L SK120 SK120LC SK200 SK200LC |
| Brand name | SUNCAR |
| OEM number | YW01V00003R100 |
| Seal kit type | Hydraulic |
| MOQ | Accept trial order |
| Material |
Rubber |
| Features | Good heat resistance; Smaller plastic deformation rate;Excellent flexibility Good abrasion resistance;Excellent oil/chemical resistance;Minimize oil leakage |
| Core appliC-A-Tion | Cylinder |
| Medium | Hydraulic oils, mineral hydraulic oils, water and water / glycol emulsion. |
| Condition | 100 % new,brandnew |
| Quality | High strength, high temperature resistance, high pressure resistance, good performance |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Features | Resistance to oil, Abrasion, Solvent |
| Material |
NBR |
| Working temperature | High temperature resistant |
| Size specifiC-A-Tion | Standard size |
Relative KOBELCO Cylinder Seal Repair Kit:
| Pos. | Part No | Qty | Parts name |
| . . | LP01V00005F1 | [1] | CYLINDER ASSY, BUCKET |
| . . | LP01V00005F2 | [1] | CYLINDER ASSY, BUCKET |
| . . | LP01V00005F3 | [1] | CYLINDER |
| 1 | YW01V00003S001 | [1] | TUBE, CYLINDER FOR F1, F2 ONLY |
| 2 | 2438U1097S2 | [2] | BUSHING |
| 3 | 2438U1097S29 | [4] | SEAL |
| 4 | YW01V00003S004 | [1] | ROD, PISTON |
| 6 | YW01V00001S008 | [1] | O-RING |
| 7 | YW01V00001S009 | [2] | BACK-UP RING |
| 10 | YW01V00001S012 | [2] | RING |
| 11 | YW01V00001S013 | [1] | NUT |
| 12 | YN01V00001S014 | [1] | SCREW |
| 13 | YW01V00003S013 | [1] | RING, CUSHION |
| 14 | YW01V00003S014 | [1] | ROD, FOR F1,F2 ONLY |
| 15 | 2438U1097S18 | [1] | BUSHING |
| 16 | B38K0038E10 | [1] | CLIP |
| 17 | ZD12G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm |
| 18 | YW01V00001S020 | [1] | RING |
| 19 | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro |
| 20 | YW01V00001S022 | [1] | SEAL |
| 21 | 2438U897S18 | [1] | PACKING |
| 22 | 2438U908S27 | [1] | SEAL |
| 23 | ZS23C14065 | [8] | BOLT,Hex Socket Head, M14 x 65mm |
| 24 | YW01V00003S024 | [1] | BRACKET |
| 25 | YW01V00003S025 | [1] | BRACKET |
| 26 | ZS16C10030 | [2] | CAPSCREW |
| 27 | ZW26X10000 | [2] | LOCK WASHER |
| 29 | YW01V00003S029 | [1] | PISTON |
| 30 | YW01V00003S030 | [1] | SEAL |
| 31 | YW01V00001S032 | [2] | RING |
| 32 | LP01V00005S032 | [1] | TUBE, CYLINDER, FOR F3 ONLY |
| 33 | LP01V00005S033 | [1] | COVER, ROD |
| . . | YW01V00003R100 | [1] | REPAIR KIT |
| . . | YW01V00003R200 | [1] | REPAIR KIT |
| . . | YW01V00003R300 | [1] | SEAL KIT |
| . . | YW01V00003R400 | [1] | REPAIR KIT, CONSISTS OF REF 6,29,30(1) 7,10,31(2) |
