24038R92F1 Arm Cylinder Seal Repair Kit For KOBELCO K907 K907LC K909LC
Price:
Negotiable
MOQ:
10 Sets
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

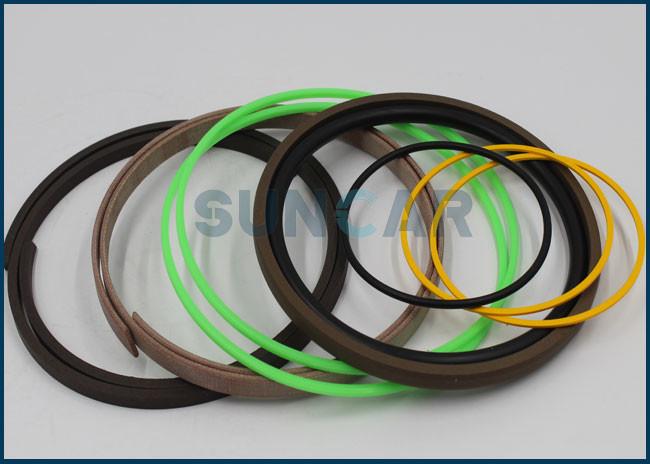

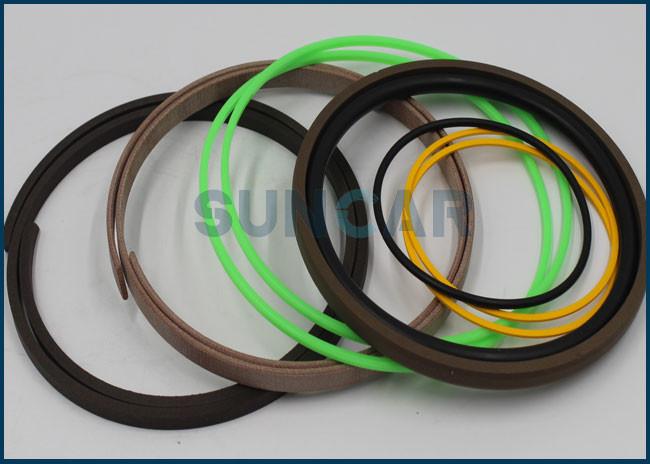

24038R92F1 Arm Cylinder Seal Repair Kit for KOBELCO K907 K907LC K909LC
Description: Arm cylinder seal kit
| Product name | 24038R92F1 Arm Cylinder Seal Repair Kit for KOBELCO K907 K907LC K909LC |
| Brand name | SUNCAR |
| MOQ | 10 sets |
| Compatible equipment models | KOBELCO K907 K907LC K909LC |
| Feuture |
Sealing performance/Wear resistance/High&low temperature resistence |
| Payment | Paypal,T/T, Western Union, ,Bank Transfer |
| Paking | PP bag inside,carton box outside. |
| Loading port | Huangpu port,China |
| Transport ways |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
Condition |
100% new |
| Original place | Guangdong,China |
|
Availability |
In stock |
| Compatible equipment |
Kobelco |
Our Cylinder Seal Kit OEM number For Your Reference:
Relative Parts:
| Pos. | Part No | Qty | Parts name |
| . . | 2438U419F1 | [1] | LINK CHAIN CONSISTS OF THE FOLLOWING PARTS |
| . . | 2438U419F2 | [1] | LINK CHAIN CONSISTS OF THE FOLLOWING PARTS |
| . . | 2438U419F3 | [1] | CYLINDER CONSISTS OF THE FOLLOWING PARTS |
| 1 | 2438U419S1 | [1] | TUBE, CYLINDER |
| 2 | 2438U419S2 | [2] | BUSHING |
| 3 | 2438U419S3 | [1] | PISTON-ROD |
| 4 | 2438U419S4 | [1] | PISTON |
| 5 | R45P0049D10 | [1] | SEAL |
| 6 | R45P0051D17 | [1] | O-RING |
| 7 | R45T0014D9 | [4] | WEAR RING |
| 8 | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro |
| 9 | ZD85P09500 | [2] | RING-BACKUP |
| 10 | 2438U419S10 | [1] | NUT |
| 11 | 2438U324S35 | [1] | RING |
| 12 | 2438U419S12 | [1] | HEAD, CYLINDER |
| 13 | 2438U419S13 | [1] | BUSHING |
| 14 | 2438U419S14 | [1] | CLIP |
| 15 | ZD12G17000 | [1] | O-RING,169.30mm ID x 180.70mm OD x 5.70mm |
| 16 | ZD85G17000 | [1] | BACK-UP RING |
| 17 | R45P0050D4 | [1] | SEAL |
| 18 | R45P0051D7 | [1] | O-RING |
| 19 | 2418U130D27 | [1] | KIT |
| 20 | 2445R206D16 | [1] | BACK-UP RING |
| 21 | 2418U131D25 | [1] | SEAL |
| 22 | 2438U419S22 | [1] | SNAP RING |
| 23 | ZS23C16060 | [16] | SCREW,Hex Socket Head, M16 x 60mm |
| 24 | 2445R138D9 | [4] | SEAL,100mm ID x 120mm OD x 4mm Thk |
| 25 | 2438U419S25 | [1] | SPRING |
| 26 | 2438U419S26 | [1] | CUSHION PLATE |
| 27 | 2438U419S27 | [1] | LOCKING RING |
| 28 | 2438U419S28 | [1] | O-RING |
| 29 | 2438U419S29 | [2] | BUSHING(F2,F3 ONLY) |
| 30 | 2438U324S42 | [1] | SEAL |
| . . | 24038R92F1 | [1] | REPAIR KIT |
| . . | 24038R93F1 | [1] | REPAIR KIT |
| . . | 2438U419R100 | [1] | REPAIR KIT |
