S19000-46199 S1900046199 Swing Cylinder Seal Kit For KOBELCO SK024
Price:
Negotiable
MOQ:
10 Sets
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

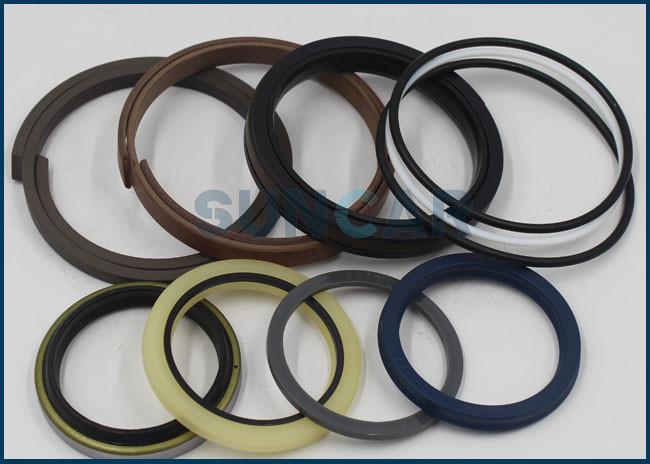

S19000-46199 S1900046199 Swing Cylinder Seal Kit for KOBELCO SK024
Description: KOBELCO SK024 OIL SEAL.
| Product name | S19000-46199 S1900046199 Swing Cylinder Seal Kit for KOBELCO SK024 |
| Brand name | SUNCAR |
| OEM number | S19000-46199 ; S1900046199 |
| Quality | China good quality |
| Quality | SUNCAR quality |
| MOQ | 10 sets |
| Feuture |
Sealing performance/Wear resistance/High&low temperature resistence |
| Payment | Paypal,T/T, Western Union, ,Bank Transfer |
| Paking | PP bag inside,carton box outside. |
| Loading port | Huangpu port,China |
| Features |
Durability,hard-wearing,higher-toughness |
| Transport ways |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
Condition |
100% new |
| Original place | Guangdong,China |
| Material | NBR |
|
Availability |
In stock |
| Compatible equipment |
KOBELCO SK024 |
Kobelco Cylinder Sea Kit We Avalaible:
| 2438U1097R300 | 2438U1029R200 | LC01V00054R300 | YY01V00055R200 |
| 2438U1123R100 | 2438U1029R100 | LC01V00005R300 | YY01V00055R100 |
| 2438U1123R200 | 2438U1095R300 | LC01V00005R200 | YY01V00005R700 |
| LS01V00001R100 | 2438U1095R100 | LC01V00005R100 | YY01V00005R600 |
| PU01V00024R300 | 2438U1104R300 | LP01V00004R300 | 2438R251R110 |
| S19000-43899 | 2438U1104R200 | LP01V00004R200 | 2438R251R100 |
| PY01V00054R300 | 2438U1104R100 | YN01V00004R100 | 2438U1004R300 |
| S19000-58899 | 2438U1104R500 | YN01V00021R300 | 2438U1004R200 |
| YB01V00001R300 | 2438U1104R400 | YN01V00021R100 | 2438U1133R100 |
| YB01V00001R200 | 2438U1108R300 | YN01V00068R200 | 2438U1133R300 |
| YB01V00001R100 | 2438U1108R200 | YN01V00068R100 | 2438U1133R200 |
| YB01V00008R700 | 2438U1108R100 | YN01V00077R300 | 2438U695R110 |
| YB01V00008R600 | 2438U1125R300 | YN01V00077R200 | 2438U695R100 |
| YB01V00008R300 | 2438U1125R200 | YN01V00077R100 | 2438U697R110 |
| YB01V00008R200 | 2438U1125R100 | 2438U995R200 | 2438U697R100 |
| YB01V00008R100 | 2438U1129R300 | 2438U995R100 | 2438U696R110 |
| YM01V00006R300 | 2438U1129R100 | 2438U968R200 | 2438U725R200 |
| YM01V00006R200 | 2438U1132R300 | 2438U968R100 | 2438U725R100 |
| YM01V00006R100 | 2438U1132R200 | 2438U959R200 | 2438U720R110 |
| YF01V00001R300 | 2438U1132R100 | 2438U959R100 | 2438U720R100 |
| YF01V00001R200 | 2438U1137R300 | YN01V00106R100 | 2438U900R110 |
| YN01V00001R300 | 2438U1172R200 | YN01V00112R900 | 2438U900R100 |
| YN01V00001R200 | 2438U1172R100 | YN01V00112R800 | 2438U739R110 |
| YN01V00001R100 | 2438U1171R300 | YN01V00112R100 | 2438U739R100 |
| YM01V00019R300 | 2438U1171R200 | YN01V00106R300 | YN01V00087R300 |
| YM01V00019R200 | 2438U1171R100 | YN01V00106R200 | YN01V00087R200 |
| YM01V00019R100 | 2438U1323R200 | S19000-60099 | YN01V00087R100 |
| YN01V00052R200 | 2438U1323R110 | S19000-59699 | YN01V00086R300 |
| YN01V00052R100 | 2438U1323R100 | S19000-61199 | YN01V00086R200 |
| YN01V00103R900 | 2438U1174R300 | PE01V00006R100 | YN01V00086R100 |
| YN01V00103R800 | 2438U1174R200 | YN01V00129R300 | YN01V00125R300 |
| YN01V00103R300 | 2438U1174R100 | YN01V00129R200 | 2438U1130R300 |
| YN01V00103R200 | 2438U1172R500 | 2438U706R200 | 2438U1130R200 |
| YN01V00103R100 | 2438U1172R400 | 2438U706R100 | 2438U1154R300 |
| YN01V00151R700 | 2438U1172R300 | 2438U719R200 | 2438U1154R200 |
| YN01V00151R600 | 2438U1948R200 | 2438U719R100 | 2438U1154R100 |
| YN01V00151R300 | 2438U1948R100 | YN01V00025R200 | 2438U705R100 |
| YN01V00151R200 | 2438U716R1140 | YN01V00025R100 | 2438U738R300 |
| YN01V00151R100 | 2438U928R110 | 2438U1150R100 | PE01V00004R100 |
| YN01V00175R100 | 2438U928R100 | 2438U1150R300 | PH01V00018R300 |
Parts of Group:
| Pos. | Part No | Qty | Parts name |
| . . | S19000-54000 | [1] | CYLINDER ASSY |
| 1 | XS14102-20750 | [1] | PACKING, PISTON |
| 2 | XS14105-40559 | [1] | PACKING, ROD |
| 3 | XS14115-00400 | [1] | SEAL, DUST |
| 4 | XS14112-55403 | [1] | RING, BACKUP |
| 5 | XS14210-30750 | [1] | RING, BACKUP (P75 T3) |
| 6 | XS14211-30800 | [1] | RING, BACKUP (G80 T3) |
| 7 | XS14201-10850 | [1] | O-RING (G85 1B) |
| 8 | XS14200-10750 | [1] | O-RING (P75 1B) |
| 9 | XS14201-10800 | [1] | O-RING (G80 1B) |
| 10 | XS14201-10300 | [1] | O-RING (G30 1B) |
| 11 | S14107-07510 | [2] | WEAR RING |
| 12 | S19000-35819 | [1] | LOCKING PLATE |
| 13 | S19000-35815 | [1] | SPACER |
| 14 | S19000-54007 | [1] | TUBE |
| 15 | S19000-44106 | [1] | PISTON |
| 16 | S19000-43855 | [1] | HOLDER,PACKING |
| 17 | S19000-44105 | [1] | BEARING, CUSHION |
| 18 | S19000-46104 | [1] | RETAINER |
| 19 | S19000-44103 | [1] | COVER, ROD |
| 20 | S19000-03702 | [1] | BUSHING |
| 21 | S19000-03720 | [1] | BUSHING |
| 22 | S19000-44101 | [1] | ROD, PISTON |
| 23 | S14322-00040 | [4] | SEAL |
| 24 | S11210-00508 | [1] | SET-SCREW |
| 25 | S11210-00608 | [1] | SCREW |
| 26 | S11100-00516 | [4] | BOLT, SOCKET |
| 27 | S13330-04030 | [1] | BUSHING |
| 28 | S15600-01000 | [1] | LUBE NIPPLE |
| . . | S19000-46199 | [1] | SEAL KIT |
