CA2726955 272-6955 2726955 Main Pump Seal Repair Kit For C-A-Terpillar E323D E323D L E323D LN E323D S
CA2726955 272-6955 2726955 Main Pump Seal Repair Kit for E323D, E323D L, E323D LN, E323D S,E320D RR,E320D Oil seals
Description: CA2726955 272-6955 2726955,The PUMP GP-MAIN HYDRAULIC 2726955 is a main hydraulic pump component manufactured by C-A-Terpillar. It serves as a crucial component of the hydraulic system in excavators and other heavy-duty equipment. The main hydraulic pump is responsible for supplying high-pressure hydraulic fluid to drive the primary movements and functions of the excavator, such as the boom, bucket, and work tool operations, including lifting, lowering, and rotating.
The PUMP GP-MAIN HYDRAULIC 2726955 is designed to deliver efficient and reliable performance, even under harsh working conditions. It incorporates advanced hydraulic technology and materials to ensure excellent performance and durability. The pump component undergoes rigorous quality control and testing to meet C-A-Terpillar's high standards and reliability requirements.
Installation and integration of the PUMP GP-MAIN HYDRAULIC 2726955 into the excavator's hydraulic system are relatively straightforward. It features appropriate interfaces and connection points to facilitate coordination and operation with other hydraulic components. Through pump control and adjustment, operators can precisely control the power output and movement speed of the hydraulic system to accommodate various work tasks and environmental demands.
In summary, the PUMP GP-MAIN HYDRAULIC 2726955 is a high-quality main hydraulic pump component provided by C-A-Terpillar. It is designed to deliver reliable hydraulic power and excellent performance, supporting a wide range of construction and engineering appliC-A-Tions in excavators and similar heavy-duty equipment.
| Product name | CA2003366 200-3366 2003366 Main Pump Seal Repair Kit for E320C, E320C L, E320C LN, E320C S,E320C U,E320C LU |
| Brand | SUNCAR |
| Product number | CA2003366 200-3366 2003366 |
| MOQ | Accept trial order |
| Compatible equipment | Excavators |
| Temperature | -40°C ~ 250 °C. |
| Material |
PU VMQ ACM NBR Rubber PTFE HNBR |
| Function | Dust proof, Shaft seal,high and low temperature resistance |
| Consist of | Dust seal,back-up ring,wear ring,buffer ring,O-ring |
| Medium | Hydraulic oil, anti-fire fluid, water, gas etc |
| Transport mode | By Air, by Sea, by Express ( FedEx , UPS,DHL,TNT etc.), your forwarder |
| CertifiC-A-Tion | ISO9001 |
| Market | Those in need |
| Availability | In stock |
| AppliC-A-Tion | C-A-T excavators;Consturction machinery repair store;Resell store |
| Color | Standard color |
| Style | C-A-T oil seal |
| Relative type |
Arm cylinder seal kit ; Boom cylinder seal kit; Center joint seal kit ; Blade cylinder seal kit Bucket cylinder kit Track adjuster seal kit Piolve valve seal kit/PPC valve seal kit Pilot pump seal kit Control valve seal kit Regulator seal kit |

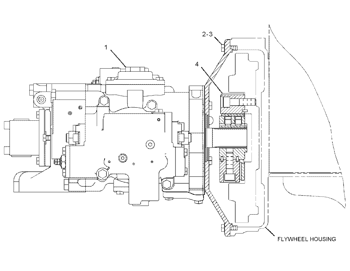

Parts for your 323D L EXCAVATOR:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 4I-1022 | [2] | ORIFICE | |
| 2. | 7Y-4215 | [2] | SPACER | |
| 3. | 096-3983 | [1] | RING-RETAINING | |
| 4. | 118-4057 | [18] | SPRING | |
| 5. | 126-2016 J | [1] | PUMP GP-GEAR (PILOT) | |
| 9T-0835 | [1] | RING-RETAINING | ||
| 6. | 129-7859 | [2] | SET-BEARING | |
| 7. | 129-7863 | [1] | COVER | |
| 8. | 129-7921 | [2] | RING-RETAINING | |
| 9. | 129-7927 | [2] | BEARING | |
| 10. | 129-7979 | [4] | DOWEL | |
| 11. | 150-5782 | [2] | COVER | |
| 12. | 173-3427 | [2] | GUIDE-BALL | |
| 13. | 173-3473 | [2] | PLATE | |
| 14. | 173-3496 | [1] | BARREL AS | |
| (INCLUDES VALVE PLATE) | ||||
| 15. | 173-3498 | [1] | BARREL AS | |
| (INCLUDES VALVE PLATE) | ||||
| 16. | 177-2470 | [1] | COVER | |
| 17. | 177-2471 | [1] | COVER | |
| 18. | 179-9763 | [1] | FLANGE | |
| 19. | 191-5709 | [2] | PISTON AS | |
| 20. | 192-0573 | [4] | PIN-DOWEL | |
| 21. | 189-9763 | [8] | SEAL-O-RING | |
| 22. | 200-3333 | [1] | HEAD-PUMP | |
| 23. | 200-3334 | [1] | COVER | |
| 24. | 225-4543 | [1] | SHAFT-DRIVE | |
| 25. | 225-4544 | [1] | SHAFT-DRIVEN | |
| 26. | 129-7854 | [1] | CNH | |
| 27. | 129-7857 | [1] | GASKET | |
| 28. | 129-7855 | [1] | GASKET | |
| 29. | 129-7925 | [1] | SEAL-LIP TYPE | |
| 30. | 242-6801 | [2] | SWASHPLATE AS | |
| (EACH INCLUDES) | ||||
| 094-1875 | [1] | DOWEL | ||
| 173-3428 | [1] | BUSHING | ||
| 242-6803 | [2] | PIN-DOWEL | ||
| 31. | 242-6804 | [4] | BEARING | |
| 32. | 247-8920 | [2] | ORIFICE | |
| 33. | 247-8782 | [1] | BODY | |
| 34. | 256-0093 Y | [1] | HEAD GP-PUMP (DRIVE)(DRIVE) | |
| 35. | 256-0096 Y | [1] | HEAD GP-PUMP (DRIVEN)(DRIVEN) | |
| 37. | 094-1875 | [6] | DOWEL | |
| 38. | 094-1882 | [16] | PLUG | |
| 39. | 095-0946 | [2] | RING-RETAINING | |
| 41. | 096-3944 | [1] | SEAL-O-RING | |
| 42. | 273-8314 | [1] | SEAL-O-RING | |
| 43. | 190-4896 | [2] | PLUG | |
| 44. | 193-1736 | [4] | SEAL-O-RING | |
| 45. | 3K-0360 | [2] | SEAL-O-RING | |
| 46. | 7M-8485 | [2] | SEAL-O-RING | |
| 47. | 7X-2557 M | [1] | BOLT (M16X2X140-MM) | |
| 48. | 8J-4645 | [2] | PLUG (STRAIGHT THREAD O-RING) | |
| 49. | 273-8315 | [2] | SEAL-O-RING | |
| 50. | 8T-4136 M | [18] | BOLT (M10X1.5X25-MM) | |
| 51. | 8T-4137 M | [2] | BOLT (M10X1.5X20-MM) | |
| 52. | 8T-4139 M | [10] | BOLT (M12X1.75X30-MM) | |
| 53. | 8T-4140 M | [4] | BOLT (M16X2X60-MM) | |
| 54. | 8T-4175 M | [2] | BOLT (M16X2X90-MM) | |
| 55. | 8T-4176 M | [2] | BOLT (M12X1.75X90-MM) | |
| 56. | 8T-4192 M | [10] | BOLT (M12X1.75X25-MM) | |
| 57. | 8T-4196 M | [2] | BOLT (M10X1.5X35-MM) | |
| 58. | 9S-4185 | [2] | PLUG (3/4-16-THD) | |
| AVAILABLE REPAIR KIT(S): | ||||
| 250-2503 J | [1] | KIT-SEAL (PILOT GEAR PUMP) | ||
| (INCLUDES 2 GASKETS, LIP SEAL, SEAL & RETAINING RING) | ||||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
