VZ03385-0041 Travel Control Valve Pedal Valve Kit Fit DH220LC-V
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 days after payment received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
VZ03385-0041 Travel Control Valve Pedal Valve Kit Fit DH220LC-V

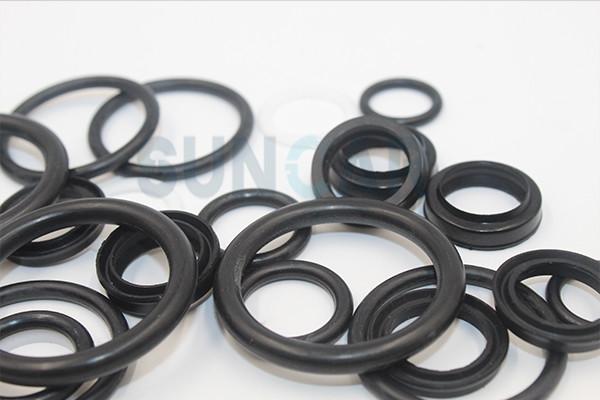

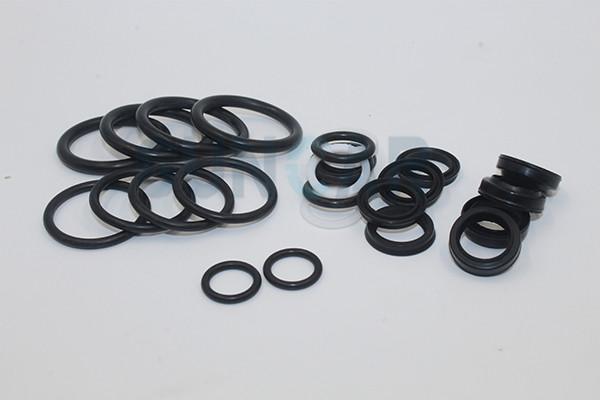

Description: Seal repair kit for travel control valve/Pedal valve.
| Product name | VZ03385-0041 Travel Control Valve Pedal Valve Kit Fit DH220LC-V |
| Brand | SUNCAR |
| Part name |
Travel control valve seal kit; Pedal valve seal kit. |
| Color | As per standard color/customize color |
| Temperature | -35 ~ 220 ℉ c (depending on the material) |
| Section code | Cylinder |
| Hardness | 60-90 Shore A |
| Material | NBR (Nitrile Butadiene Rubber) |
| Material | FKM |
| Material | Nylon |
| Material | Steel |
| Material | Copper |
| Material | PTFE |
| Material | Polyurethane (PU) |
| Package |
PP bag, carton, wooden box, or as required |
| Quality | Fabric |
| Features | High temperature resistance ; |
| Features | Good performance. |
| Features | High pressure resistance. |
| MOQ | Accept trail order |
| Type | Hydraulic seal kit. |
| Payment terms | T/T, Western Union, Paypal,Bank transfer. |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Shipping mode | By air, by sea, by express |
| Express | Post FedEx , UPS,DHL,TNT etc |
| Loading port | Huangpu port,China |
| Original place | Guangzhou city,Guangdong province,China |
| Forwarder | Your local forwarder or we find shipping ways for you |
| Quality | Stable quality,OEM standard,Genuine/Aftermarket |
Compatible Models:
| DX180LC | DX255LC | DX340LC | DX520LC |
| DX225LC | DX300LL | DX480LC | SOLAR55-ⅤPLUS |
| DX225NLC | DX300LC | DX420LC | DX225LC(China) |
Parts on Group:
| Pos. | Part No | Qty | Parts name |
| -. | 420-00467 | [1] | PEDAL VALVE |
| 1 | 423-00046 | [1] | BODY(1) |
| 2 | 423-00047 | [1] | BODY(2) |
| 3 | 2181-1116D1 | [4] | PLUG PT1/8 |
| 4 | 2181-1116D3 | [2] | PLUG PT3/8 |
| 5 | 429-00004 | [4] | SEAT;SPRING |
| 6 | K9001141 | [4] | SPRING |
| 7 | 429-00005 | [4] | SEAT;SPRING |
| 8 | 424-00042 | [4] | SPOOL |
| 9 | 161-00080 | [4] | STOPPER |
| 10 | 129-00042 | [4] | SPRING |
| 11 | 429-00006 | [4] | GUIDE;ROD |
| 12 | S8000221 | [4] | O-RING |
| 13 | 1.229-00036 | [4] | RING;SNAP |
| 14 | 1.454-00001 | [4] | ROD;PUSH |
| 15 | S5740480 | [4] | PIN;SPRING |
| 16 | 180-00197 | [4] | SEAL |
| 17 | S6250110 | [4] | BALL;STEEL |
| 18 | 129-00043 | [4] | SPRING K |
| 19 | 159-00017 | [4] | PLATE |
| 20 | 115-00042 | [4] | RING;SNAP |
| 21 | 181-00319 | [4] | PLUG |
| 22 | S8010251 | [4] | O-RING |
| 23 | 180-00198 | [4] | SEAL;ROD |
| 24 | 180-00199 | [4] | SEAL;DUST |
| 25 | K9001142 | [1] | COVER |
| 26 | S2205261 | [4] | BOLT;WRENCH |
| 27 | 354-00002 | [2] | CAM |
| 28 | 2110-1184D7 | [4] | BUSHING |
| 29 | 354-00003 | [2] | SHAFT;CAM |
| 30 | S3523608 | [2] | SCREW;SET |
| 31 | 120-00127 | [4] | SCREW;SET |
| 32 | S4014633 | [4] | NUT M10 |
| 33 | 160-00008 | [2] | BELLOWS |
| 34 | 114-00225 | [1] | SPACER |
| 35 | S8000121 | [4] | O-RING |
| 36 | S8000101 | [2] | O-RING |
| 37 | S2212461 | [4] | BOLT;WRENCH |
| 38 | 1.409-00225 | [4] | PISTON |
| *. | 420-00453KT | [1] | SEAL KIT;PEDAL VALVE |
