2438U568R100 Repair Kit Kobelco Piston Rod Seal Kit For Excavator K909-A
Description: This seal kit use in cylinder piston rod,important features are seal oil,dustproof.
| Product name | 2438U568R100 Repair Kit Kobelco Piston Rod Seal Kit For Excavator K909-A |
| Brand | SUNCAR |
| Part number | 2438U568R100 |
| Compatible model | KOBELCO K909-A |
| AppliC-A-Tion | Consruction machinery works;Piston rod;Cylinder;Kobelco |
| Transport |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Original place | Guangdong provice,China |
| Loading port | Huangpu port,China |
| Avaliability | In stock |
|
CertifiC-A-Tion |
ISO9001 |
| Trems of payment |
Western Union, T/T, Money Gram,Paypal |
| Delivery time | 3-7 days after payment received(Public Holiday Excluded) |
| MOQ | 10 sets |
| Make up | IDI,oil seal;back-up ring;dust seal |
How To Place Order:
1. Inquiry
2. The sales made an inquiry to the sales manager
3. Reply
4. Business negotiation
5. Make a deal
6. Make payment
7. Receice payment
8. Warehouse department checking and packing the products
9. Delivery(Your forwarder or we find forwarder by expresss shipping)
10. You receiced the products
11. After-sale follow up service
12. Time to reorder

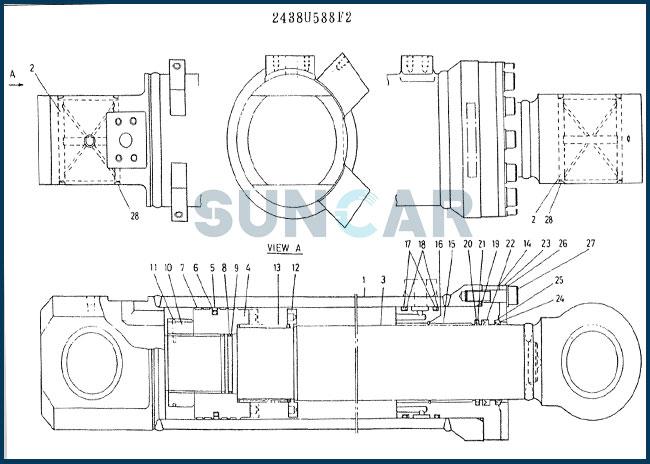

Parts on group (K909A):
| Pos. | Part No | Qty | Parts name |
| . . | 2438U568F2 | [1] | BUCKET CYLINDER |
| 1 | 2438U568S1 | [1] | TUBE |
| 2 | 2438U588S2 | [2] | BUSHING |
| 3 | NSS | [1] | NOT SOLD SEPARAT |
| 4 | 2438U588S4 | [1] | PISTON |
| 5 | R45P0049D3 | [1] | SEAL |
| 6 | 45Z91D46 | [1] | O-RING |
| 7 | R45T0014D9 | [4] | WEAR RING |
| 8 | ZD12G06000 | [1] | O-RING,59.40mm ID x 65.60mm OD x 3.10mm |
| 9 | ZD85G06000 | [2] | BACK-UP RING |
| 10 | 2438U588S10 | [1] | NUT |
| 11 | 2438U588S11 | [1] | LOCKING RING |
| 12 | 2438U588S12 | [1] | PLATE |
| 13 | 2438U588S13 | [1] | SPRING |
| 14 | 2438U588S14 | [1] | AIR CONDITIONER |
| 15 | 2438U321S15 | [1] | BUSHING |
| 16 | 2418U112D74 | [1] | CLIP |
| 17 | ZD12P14000 | [2] | O-RING |
| 18 | 2438U308S18 | [2] | BACK-UP RING |
| 19 | 2438U588S19 | [1] | O-RING |
| 20 | R45P0050D10 | [1] | SEAL |
| 21 | 45Z91D117 | [1] | O-RING |
| 22 | 2438U322S33 | [1] | PACKING |
| 23 | 2438U321S33 | [1] | COVER |
| 24 | 2438U552S24 | [1] | SEAL |
| 25 | 2438U588S25 | [1] | O-RING |
| 26 | ZW13H16000 | [12] | WASHER |
| 27 | ZS23C16075 | [12] | SCREW,Hex Socket Head, M16 x 75mm |
| 28 | 2438U568S31 | [4] | DUST CAP |
| . . | 2438U568R100 | [1] | REPAIR KIT |
| . . | 2438U588R110 | [1] | REPAIR KIT |
| . . | 2438U568R120 | [1] | SEAL KIT |
