282-4350 2824350 CA2824350 Oil Seal Lip Type For C-A-T 160H 160H ES 160H NA 163H NA
Price:
Negotiable
MOQ:
10 Sets；Accept trail order.
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
282-4350 2824350 CA2824350 Oil Seal Lip Type For C-A-T 160H 160H ES 160H NA 163H NA
Description:
| Product name | 282-4350 2824350 CA2824350 Oil Seal Lip Type For C-A-T 160H 160H ES 160H NA 163H NA |
| Part Number | 282-4350 2824350 CA2824350 |
| Size | Standard size |
| Features | Good oil resistance, wear resistance and corrosion resistance. |
| Material | NBR |
| AppliC-A-Tion | Hydraulic cylinder |
| Temp. | NBR (-40 〜 120 °C),FFKM (-20 〜 320 °C) FKM (-20 〜 3 00 °C),Silica gel (-70 〜 220 °C) EPDM (-50 〜 150 °C),PU (-40 〜 90 °C) |
| Condition | Oem 100% |
| Loading port | Huangpu port,China |
| Shipping mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Terms of payment |
Western Union, T/T, Paypal,Bank transfer |
| High lights | High quality replacement for after markets |
Information:
| AXIAL WIDTH 23.62 mm |
| BORE DIAMETER 342.9 mm |
| CONSTRUCTION TYPE SPECIAL |
| MATERIAL Rubber |
| SEAL OD 343.1 mm |
| SHAFT OD 314.33 mm |

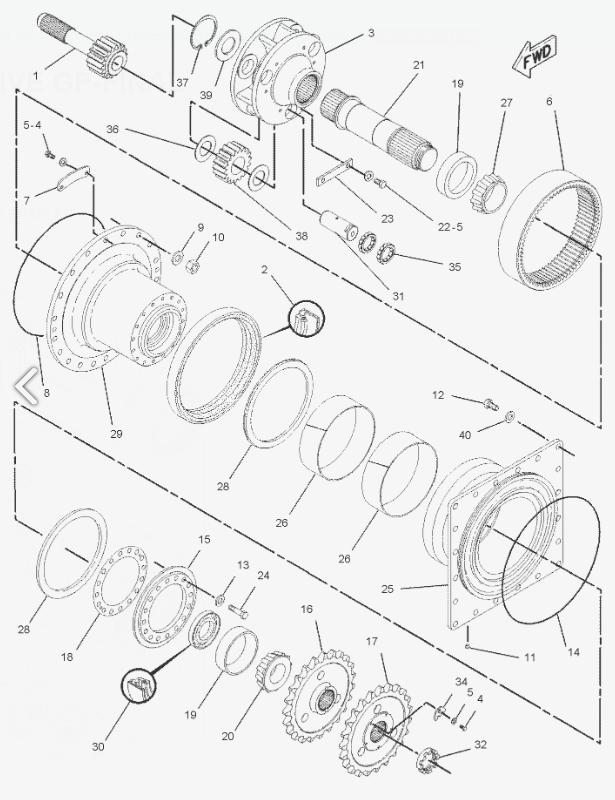

Parts on Group:
| Pos. | Part No | Qty | Parts name |
| 1 | 191-5973 | [2] | SHAFT-SUN GEAR (18-TEETH) |
| 2 | 282-4350 | [2] | SEAL-LIP TYPE |
| 3 | 8D-3591 | [2] | CARRIER-PLANETARY (57-TEETH) |
| 4 | 030-8535 | [18] | BOLT-LOCKING (3/8-16X0.875-IN) |
| 5 | 5M-2894 | [30] | WASHER-HARD (10.2X18.5X2.5-MM THK) |
| 6 | 7D-7889 | [2] | GEAR-RING |
| 7 | 7D-0035 | [8] | PLATE |
| 8 | 7S-4571 | [2] | SEAL-O-RING |
| 9 | 5P-8248 | [38] | WASHER-HARD (20X36.5X3.5-MM THK) |
| 10 | 2J-3506 | [38] | NUT-FULL (3/4-10-THD) |
| 11 | 9F-2247 | [2] | PLUG-PIPE |
| 12 | 9X-8880 | [40] | BOLT (5/8-11X2-IN) |
| 13 | 4D-3704 | [32] | WASHER-HARD (17X30X5-MM THK) |
| 14 | 2P-3628 | [2] | SEAL-O-RING |
| 15 | 236-7724 | [2] | RETAINER |
| 16 | 102-2371 | [2] | SPROCKET (23-TEETH) |
| 17 | 102-2370 | [2] | SPROCKET (23-TEETH) |
| 18 | 6G-3212 B | [2] | SHIM PACK (INCLUDES 10-SHIMS) |
| 19 | 1P-4693 | [4] | CUP-BEARING |
| 20 | 5P-3490 | [2] | CONE-BEARING |
| 21 | 8W-4142 | [2] | SHAFT-DRIVE |
| 22 | 5D-0353 | [12] | BOLT-LOCKING (3/8-16X1-IN) |
| 23 | 265-9125 | [6] | RETAINER |
| 24 | 8S-9092 | [32] | BOLT (5/8-11X2.25-IN) |
| 25 | 200-7930 | [2] | HOUSING |
| 26 | 218-4406 | [4] | RING-WEAR |
| 27 | 1P-4694 | [2] | CONE-BEARING |
| 28 | 6G-3206 | [4] | WASHER-THRUST (261.8X309X7-MM THK) |
| 29 | 5T-7129 | [2] | HOUSING |
| 30 | 8D-3902 | [2] | SEAL-LIP TYPE |
| 31 | 8W-2308 | [6] | SHAFT-PLANETARY |
| 32 | 8D-3540 | [2] | NUT (3-1/4X12-THD) |
| 34 | 8W-4141 | [2] | LOCK |
| 35 | 1S-9110 | [12] | ROLLER AS |
| 36 | 8X-8377 | [12] | WASHER (47.57X82.55X2.92-MM THK) |
| 37 | 8D-3886 | [2] | RING-RETAINING |
| 38 | 129-2381 | [6] | GEAR-PLANETARY (26-TEETH) |
| 39 | 8D-3885 | [2] | WASHER (50.8X107.95X6.35-MM THK) |
| 40 | 198-4768 | [40] | WASHER-HARD (17.5X32X8-MM THK) |
