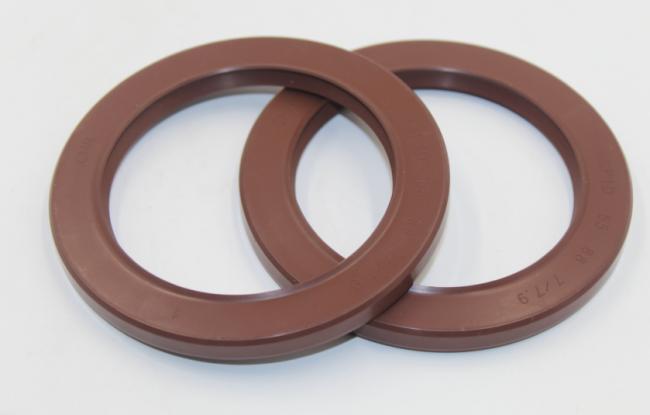

0682325 Oil Seal Hitachi Parts EH5000AC-3-C EX1100-3 EX1200-5 EX1200-5C EX1200-5D
0682325 SEAL;OIL Hitachi parts EH5000AC-3-C, EX1100-3, EX1200-5, EX1200-5C, EX1200-5D
| Product name | 0682325 SEAL;OIL Hitachi parts EH5000AC-3-C, EX1100-3, EX1200-5, EX1200-5C, EX1200-5D |
| Brand name | SUNCAR |
| AppliC-A-Tion | Lip seals are used in low to medium speed rotating appliC-A-Tions such as transmissions and pumps. |
| SpecifiC-A-Tions for Part No. | 0682325 |
| Compatible model |
SK |
| Material | NBR A795 |
| MOQ | Accept trail order. |
| Supply alility | 2200 sets per months |
| Characteristic |
|
| Condition | 100 % new |
| Payment | Paypal, T/T, Western union, Bank transfer |
| Paking details | PP bag inside,carton box outside. |
| Original place | Guangdong province,China |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| Compatible equipment |
Wheel loaders ;Pipelayer;crawler loader;Articulated unloading truck; Crawler Bulldozer |
| CertifiC-A-Tion | ISO9001 |
| AppliC-A-Tion | Cylinder,constuction machinery works,retail |
| Primary seal material | Rubber |
| Availability | In stock. |
| Axial Width | 11.91 mm |
| Style | Oil seal |
| Construction Type | SBI |
| Material Nitrile Rubber | NBR A795 |
| Seal OD | 98.58 mm |
| Shaft OD | 76.2 mm |
Material Details:
| Material | Oil resistance | Abrasion resistance | Low temperature | high temperature | Acid resistance | Weather resistant |
| NBR | Very good | Very good | -40 | 125 | good | Moderate |
| ACM | Very good | Very good | -25 | 150 | Moderate | Very good |
| FKM | Very good | Very good | -20 | 250 | good | Very good |
| EPDM | Moderate | good | -40 | 125 | good | Very good |
| PTFE | Very good | Very good | -65 | 260 | Very good | Very good |
| SBR | Moderate | Very good | -45 | 100 | Moderate | Moderate |
| Fiber | Very good | Very good | -50 | 160 | Very good | Very good |
| HNBR | Very good | Very good | -25 | 140 | good | good |
| VMQ | good | good | -60 | 225 | Moderate | Very good |
Oil Seal Features:
1). Excellent durability and flexibility of use.
2). The specially designed rope enhances durability and length stability.
3). Excellent heat resistance, oil resistance and abrasion resistance.
4). The display is stable during high-speed rotation.
5). Due to the excellent special frame, heat resistance, oil, fatigue, aging and friction.
6). High power, fast speed, long service life, low distortion and less space.

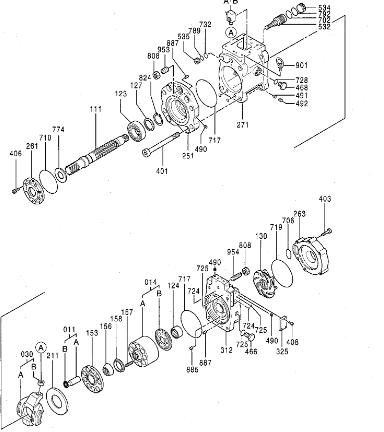

Parts on group PUMP;PISTON:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 4411536 | [1] | PUMP;PISTON | 0726400 | |
| 011. | 4312157 | [1] | PISTON AS'Y | |
| 011A. | +++++++ | [9] | PISTON | |
| 011B. | +++++++ | [9] | SHOE | |
| 014. | 0703002 | [1] | CYL. AS'Y | |
| 014A. | +++++++ | [1] | BLOCK;CYL. | |
| 014B. | +++++++ | [1] | PLATE;VALVE | |
| 030. | 0726401 | [1] | PLATE | |
| 030A. | +++++++ | [1] | PLATE | |
| 030B. | +++++++ | [1] | BUSHING | |
| 111. | 0682301 | [1] | SHAFT;DRIVE | |
| 123. | 0682302 | [1] | BRG.;ROL. | |
| 124. | 0682303 | [1] | BRG.;NEEDLE | |
| 127. | 0339809 | [1] | SPACER | |
| 130. | 0682304 | [1] | BOOSTER | |
| 153. | 0682305 | [1] | RETAINER | |
| 156. | 0682306 | [1] | BUSHING | |
| 157. | 0682307 | [9] | SPRING | |
| 158. | 0682308 | [1] | SPACER | |
| 211. | 0682309 | [1] | PLATE | |
| 251. | 0682310 | [1] | SUPPORT | |
| 261. | 0682311 | [1] | COVER | |
| 263. | 0682312 | [1] | COVER | |
| 271. | 0682313 | [1] | CASING | |
| 312. | 0682314 | [1] | COVER | |
| 325. | 0682315 | [1] | COVER | |
| 401. | 0682316 | [4] | BOLT;SOCKET | |
| 403. | 0111530 | [6] | BOLT;SOCKET | |
| 406. | M340820 | [4] | BOLT;SOCKET | |
| 408. | 0102411 | [3] | BOLT;SOCKET | |
| 466. | 0236014 | [2] | PLUG | |
| 468. | 0175233 | [2] | PLUG | |
| 490. | 0263019 | [27] | PLUG | |
| 491. | 0451027 | [2] | SCREW |
