CA5J7019 5J-7019 5J7019 Piston Seal As For C-A-T Heavy Equipment D10N D9H D9 65 651 651B 651E 657 657B 657E 666 785 785B

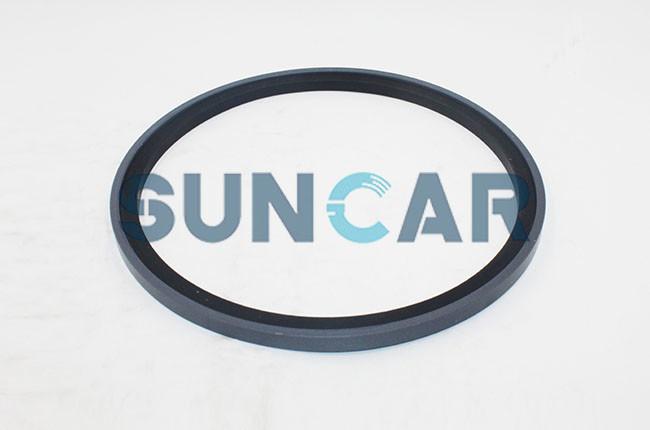

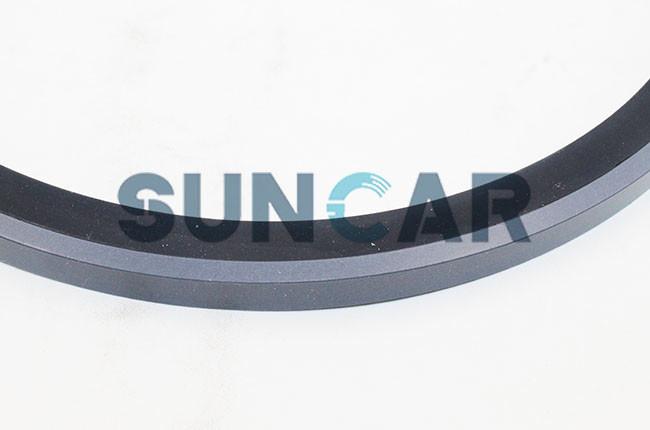

CA5J7019 5J-7019 5J7019 Piston Seal For C-A-T
Description:
Seal shape: Type 1
A two-piece seal composed of a piston ring and an expander to prevent oil from flowing between the rod end and the cover end of the cylinder.
Piston seals are usually made of . Nylon materials can be used when the pressure is greater than 3000 psi (20670 kPa). Dilators of various
shapes are made of nitrile rubber.
| Product name | CA5J7019 5J-7019 5J7019 Piston Seal For C-A-T |
| Part number | CA5J7019 5J-7019 5J7019 |
| Brand name | SUNCAR |
| MOQ | Accept trial order |
| Material |
PTFE(19YF) |
| Material | NBR(A402) |
| Features | Wear-resistant and extrusion-resistant, providing excellent resistance to compression deformation of seals |
| Medium | Hydraulic oils, mineral hydraulic oils, water and water / glycol emulsion. |
| Condition | 100 % new,brandnew |
| Feature |
High temperature, low temperature, high pressure, low pressure, |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Working temperature | High temperature resistant |
| Size specifiC-A-Tion | Standard size |
| AppliC-A-Tion |
Rectangular seals and sealing rings are widely used in various sealing appliC-A-Tions in C-A-T machines and engines. |
| Stock | In rich stock |
| Style |
Hydraulic seal ; |
Compatible Models:
CHALLENGER 65
TRACK-TYPE TRACTOR D10N D9H D9L
TRUCK 785 785B 785C 785D
WHEEL LOADER 996D 966F 966G 966GII
WHEEL SCRAPER 651 651B 651E 657 657B 657E 666

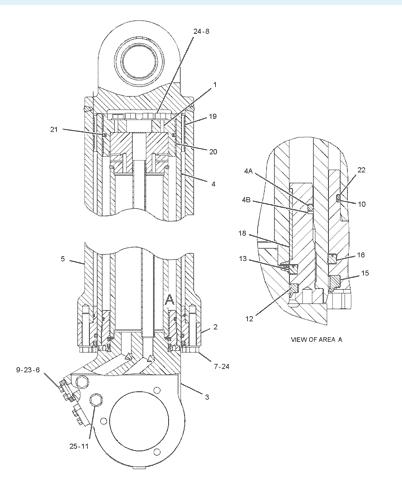

Parts for 785B truck:
| Pos. | Part No | Qty | Parts name |
| 1 | 4T-4801 | [1] | PISTON |
| 2 | 4T-5935 | [1] | HEAD |
| 3 | 4T-5951 | [1] | ROD AS |
| 4 | 6E-6487 | [1] | CYLINDER AS |
| 6E-6485 | [1] | HEAD | |
| 4A. | 4F-7388 C | [1] | SEAL-O-RING |
| 4B. | 3E-6783 C | [1] | RING-BACKUP |
| 5 | 226-2031 | [1] | CYLINDER GP-HOIST |
| 271-1440 | [2] | RING-RETAINING | |
| 6V-3249 | [1] | BEARING | |
| 6 | 0T-0772 | [8] | BOLT (7/16-14X1.5-IN) |
| 7 | 1D-3848 | [16] | BOLT (7/8-14X4.25-IN) |
| 8 | 1D-4628 | [8] | BOLT (7/8-9X3.25-IN) |
| 9 | 1P-4578 | [4] | FLANGE-HALF |
| 10 | 1U-1626 | [1] | RING-BACKUP |
| 11 | 3D-2824 | [2] | SEAL-O-RING |
| 12 | 4T-4802 | [1] | WIPER-ROD |
| 13 | 333-6479 | [1] | SEAL-U-CUP |
| 15 | 4T-4805 | [1] | WIPER-ROD |
| 16 | 333-6480 | [1] | SEAL-U-CUP |
| 18 | 4T-4811 | [1] | RING-WEAR |
| 19 | 4T-4815 | [1] | RING-WEAR |
| 20 | 4T-5949 | [2] | RING-WEAR |
| 21 | 5J-7019 | [1] | SEAL AS |
| 22 | 5P-2236 | [1] | SEAL-O-RING |
| 23 | 5P-8244 | [8] | WASHER-HARD (12X22.5X2.5-MM THK) |
| 24 | 5P-8249 | [24] | WASHER-HARD (24X41.5X4-MM THK) |
| 25 | 9S-4183 | [2] | PLUG (1-1/16-12-THD) |
| AVAILABLE REPAIR KIT(S): | |||
| 357-3798 | [1] | KIT-HYD CYLINDER SEAL | |
| (INCLUDES SEALS & RINGS) | |||
| C | CHANGE FROM PREVIOUS TYPE | ||
| R | REMANUFACTURED PART MAY BE AVAILABLE |
