238-15-19210 2381519210 Gearbox Seal Ring For Komatsu Cranes Graders GD405A GD505A GD605A GD611A GD621A GD621R GD623A
238-15-19210 2381519210 Gearbox Seal Ring For Komatsu Cranes Graders GD405A GD505A GD605A GD611A GD621A GD621R GD623A GD625A GD661A GD663A LW250L
Description: The Gasket seal ring is a ring-shaped sealing element with a gap, which is pressed against the inner hole wall of the stationary element by virtue of its elasticity after being pressed to play a sealing role.
| Product Name | 238-15-19210 2381519210 Gearbox Seal Ring |
| Brand | SUNCAR |
| MOQ | Trial order is accepted |
| Transport mode | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Place of origin | Guangdong provice,China |
| Part number | 238-15-19210 |
| Cross number | 2381519210 |
| Loading port | Huangpu port,China |
| Seal type | Hydraulic gasket seal |
| Sample | Provide.Yes |
| Supply ability | 2200 pcs per month |
| Material | Rubber etc. |
| Seal style | Hydraulic Gasket Seal,Gearbox Seal;Mechanical Seal |
| Compatible equipment model | GD405A GD505A GD605A GD611A GD621A GD621R GD623A GD625A GD661A GD663A LW250L |
PTFE
PTFE has high flexural strength, even in low temperatures, high electrical resistance and dielectric strength, resistance to water (owing to fluorine's high electronegativity), and low coefficient of friction. PTFE's density is also very high, at 2200 kg/m3.

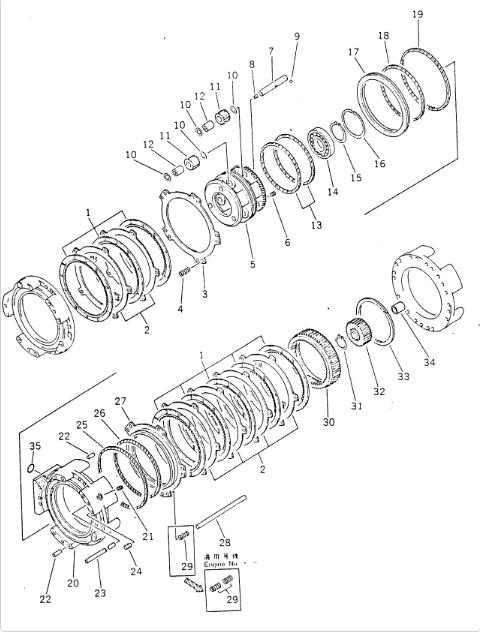

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 238-15-00012 | [1] | TRANSMISSION ASY | |
| 238-15-00011 | [1] | TRANSMISSION ASY | |
| 1. | 238-15-12710 | [8] | DISC |
| 2. | 238-15-12810 | [6] | PLATE |
| 3. | 238-15-12760 | [1] | PLATE |
| 4. | 113-15-22920 | [10] | SPRING |
| 238-15-00140 | [1] | CARRIER ASSY | |
| 6 | 125-15-11230 | [1] | PLUG |
| 7. | 125-15-32520 | [3] | SHAFT |
| 8. | 113-15-21320 | [3] | PLUG |
| 9. | 04260-00635 | [3] | BALL |
| 10. | 09233-02020 | [12] | WASHER |
| 11. | 125-15-32420 | [6] | GEAR,PLANETARY |
| 12. | 125-15-39420 | [6] | BEARING |
| 13. | 07018-01805 | [2] | RING |
| 14. | 06000-06012 | [1] | BEARING |
| 15. | 04064-06020 | [1] | RING |
| 16. | 04065-09530 | [1] | RING |
| 17. | 238-15-12740 | [1] | PISTON |
| 18. | 238-15-19210 | [1] | RING (KIT) |
| 19. | 154-15-22831 | [1] | RING (KIT) |
| 238-15-00130 | [1] | HOUSING ASY | |
| 21 | 234-15-12780 | [1] | SCREW |
| 22. | 04020-01228 | [4] | PIN |
| 23. | 175-15-31210 | [2] | PIN |
| 24. | 09231-01225 | [7] | SLEEVE |
| 25. | 103-15-12820 | [1] | RING (KIT) |
| 26. | 125-15-39210 | [1] | RING (KIT) |
| 27. | 238-15-12731 | [1] | PISTON |
| 28. | 238-15-11290 | [5] | PIN |
| 29. | 285-15-12940 | [5] | SPRING |
| 29. | 285-15-12930 | [5] | SPRING |
| 29. | 238-15-12920 | [5] | SPRING |
| 30. | 125-15-32630 | [1] | GEAR |
| 31. | 04064-03818 | [1] | RING |
| 32. | 238-15-12230 | [1] | GEAR |
| 33. | 125-15-39510 | [1] | RING |
| 34. | 07177-03025 | [1] | BUSHING |
| 35. | 07000-73030 | [4] | O-RING |
