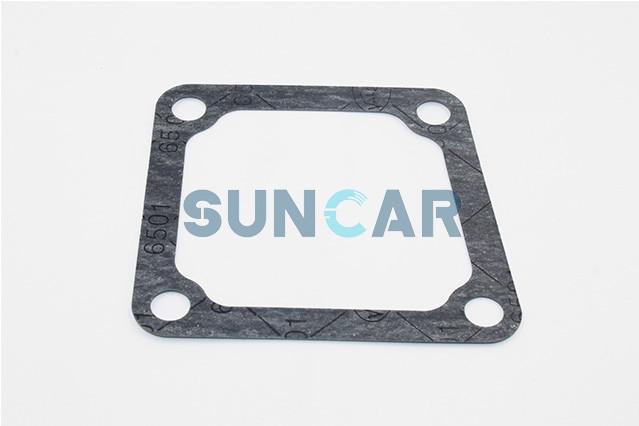

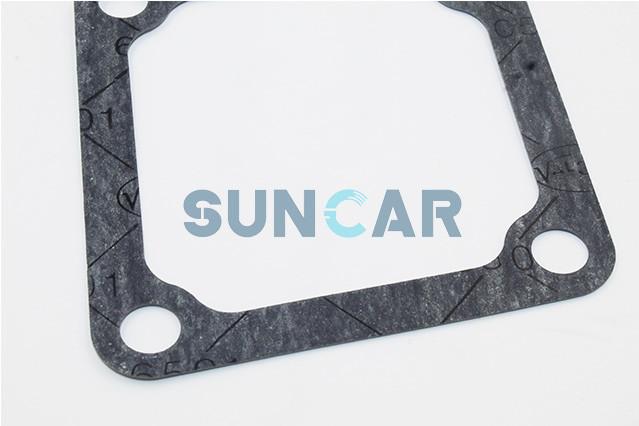

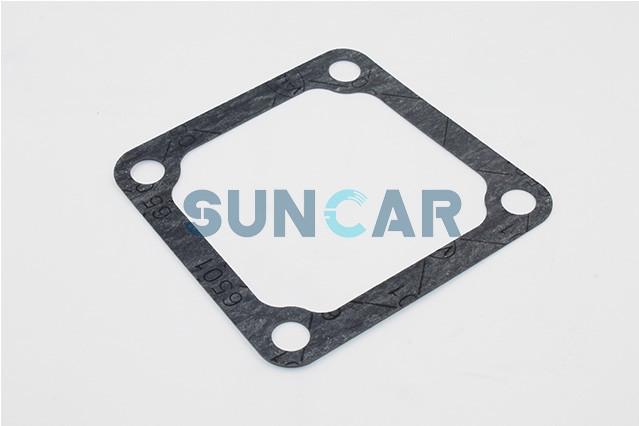

232-15-15971 2321515971 Gasket Seal for Komatsu Graders GD305A GD405A GD505A GD511A GD521A GD525A GD605A GD611A GD621A
Price:
Negotiable
MOQ:
10 Sets；Accept trail order.
Delivery Time:
3-7 days after payment received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
232-15-15971 2321515971 Gasket Seal for Komatsu Graders GD305A GD405A GD505A GD511A GD521A GD525A GD605A GD611A GD621A
Description:
| Product Name | 232-15-15971 2321515971 Gasket Seal for KOMATSU GD305A, GD405A, GD505A, GD511A, GD521A, GD525A, GD605A, GD611A, GD621A |
| Brand | SUNCAR |
| MOQ | Trial order is accepted |
| Transport mode | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Place of origin | Guangdong provice,China |
| OEM number | 232-15-15971 2321515971 |
| Loading port | Huangpu port,China |
| Seal type | Hydraulic gasket seal |
| Sample | Provide.Yes |
| Supply ability | 2200 pcs per month |
| Seal style | Hydraulic Gasket Seal,Gearbox Seal;Mechanical Seal |
| Compatible equipment | GD305A GD405A GD505A GD511A GD521A GD525A GD605A GD611A GD621A GD621R GD623A GD625A GD661A GD663A GD705A GD725A GH320 |
Parts on group :
| Pos. | Part No | Qty | Parts name |
| 23E-15-00013 | [1] | TRANSMISSION ASSY | |
| 23E-15-11010 | [1] | TRANSMISSION ASSY,(EXCEPT PTO) | |
| 1 | 23B-15-15810 | [1] | COVER |
| 2 | 07042-20211 | [1] | PLUG |
| 3 | 06120-02016 | [1] | BEARING |
| 4 | 144-15-29110 | [1] | SEAL,OIL |
| 5 | 238-15-25750 | [1] | LEVER |
| 6 | 04010-00300 | [1] | KEY |
| 7 | 144-15-25570 | [2] | WASHER |
| 8 | 232-15-15761 | [1] | LEVER |
| 9 | 01010-80850 | [1] | BOLT |
| 10 | 01602-20825 | [1] | WASHER,SPRING |
| 11 | 232-15-15770 | [1] | LEVER |
| 12 | 06120-01612 | [1] | BEARING |
| 13 | 232-15-15790 | [1] | WASHER |
| 14 | 232-15-15780 | [1] | SHAFT |
| 15 | 232-15-16270 | [1] | SPRING |
| 16 | 125-15-11461 | [1] | BOLT |
| 17 | 01580-11008 | [1] | NUT |
| 18 | 01602-21030 | [1] | WASHER,SPRING |
| 19 | 232-15-15840 | [1] | COVER |
| 20 | 232-15-15971 | [1] | GASKET (K1) |
| 21 | 01010-81030 | [3] | BOLT OEM |
| 22 | 01010-81065 | [1] | BOLT |
| 24 | 232-15-15830 | [1] | COVER |
| 25 | 232-15-15961 | [1] | GASKET (K1) |
| 28 | 23B-15-15952 | [1] | GASKET (K1) |
| 29 | 04020-01024 | [2] | PIN,DOWEL |
| 30 | 01010-81040 | [17] | BOLT |
| 33 | 01643-31032 | [18] | WASHER |
| 34 | 23B-15-11810 | [1] | COVER |
| 35 | 01010-81025 | [2] | BOLT |
| 37 | 23B-15-11820 | [2] | COUPLING |
| 38 | 07000-73028 | [2] | O-RING (K1) OEM |
