21R-63-02030 21R6302030 Bucket Cylinder Seal Kit For Komatsu PC02-1 PC02-1A
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

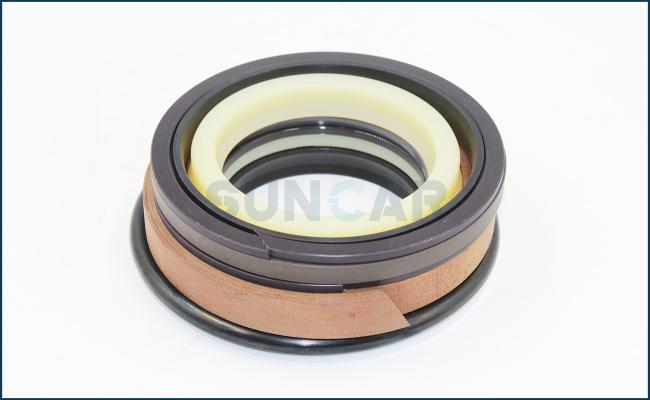

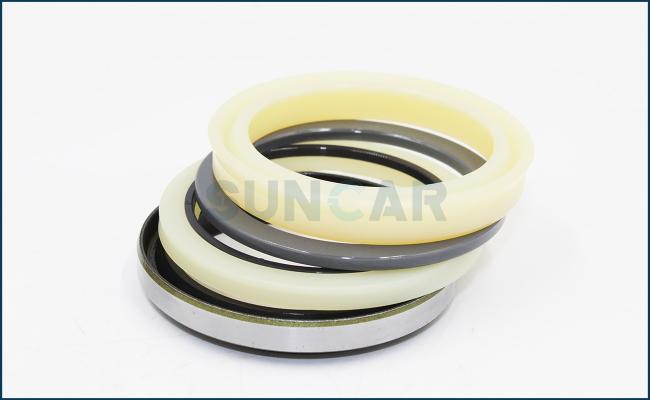

21R-63-02030 21R6302030 Bucket Cylinder Seal Kit For Komatsu PC02-1 PC02-1A
| Name | 21R-63-02030 21R6302030 Bucket Cylinder Seal Kit |
| Type | Bucket Cylinder seal kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material |
Part Numbers of Cylinder Service Kits:
| 707-99-96223 | 707-99-75410 | 707-98-71020 |
| 707-99-96170 | 707-99-75440 | 707-99-56510 |
| 707-99-77610 | 707-99-43570 | 707-99-74440 |
| 707-99-77611 | 707-99-43500 | 707-99-74450 |
| 707-99-77612 | 707-99-84400 | 707-98-74100 |
| 707-99-77660 | 707-99-84440 | 707-99-67690 |
| 707-99-41100 | 707-99-43590 | 707-99-47510 |
| 707-99-03420 | 707-99-84450 | 707-99 -64080 |
| 707-99-32100 | 707-99-84470 | 707-99-43170 |
| 707-99-53500 | 707-99-77090 | 707-99-44220 |
| 707-99-43110 | 707-99-44060 | 203-63-52340 |
| 707-99-43520 | 707-99-77630 | 203-63-62340 |
| 418-63-05000 | 707-99-47830 | 203-63-72340 |
| 707-99-53100 | 707-99-77600 | 205-63-54101 |
| 707-99-62020 | 707-99-46620 | 205-63-64101 |
| 707-99-53150 | 707-99-86600 | 205-63-74101 |
| 707-99-14750 | 707-99-85900 | 205-63-79300 |
| 707-99-14770 | 707-99-85920 | 205-63-79310 |
| 707-99-62110 | 707-99-66210 | 707-99-76010 |
| 707-99-53170 | 707-99-96200 | 707-99-85380 |
| 707-99-62120 | 707-99-96201 | 707-98-02420 |
| 707-99-64120 | 707-99-96130 | 708-1S-00410 |
| 707-99-24280 | 707-99-73010 | 707-99-15710 |
| 707-99-64520 | 707-98-62131 | 707-98-22020 |
| 707-99-64080 | 707-99-71420 | 707-98-45610 |
| 707-99-24630 | 12F-63-00010 | 707-98-62100 |
| 707-99-64540 | 12F-63-52500 | 707-98-54500 |
| 707-00-X7560 | 707-98-41010 | 707-98-11070 |
| 707-99-64030 | 707-98-53410 | 175-63-05140 |
| 707-99-24510 | 13F-63-02070 | 175-63-05041 |
| 707-99-73020 | 707-98-36440 | 707-98-12460 |
| 707-99-73140 | 707-98-60100 | 707-99-71130 |
| 707-99-43530 | 707-98-28600 | 707-99-62130 |
| 707-99-64130 | 707-98-52140 | 707-98-11290 |
| 707-99-24610 | 707-98-40020 | 101-61-05010 |
| 707-99-65400 | 707-98-37580 | 101-62-05020 |
| 707-99-65410 | 707-98-53100 | 101-870-0510 |
| 707-99-74010 | 175-63-05150 | 102-63-05020 |
| 707-99-75400 | 175-63-05180 | 102-63-05010 |

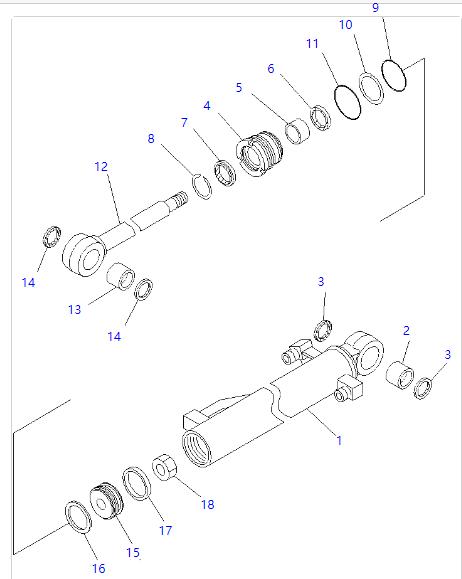

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 21R-63-09030 | [1] | CYLINDER AS'Y | |
| 21R-63-02030 | [1] | CYLINDER AS'Y | |
| 1. | 21R-63-76140 | [1] | CYLINDER |
| 2. | 21S-70-11450 | [1] | BUSHING |
| 3. | 07145-00025 | [2] | SEAL,DUST |
| 4. | 707-29-40030 | [1] | HEAD,CYLINDER |
| 5. | 707-52-10250 | [1] | BUSHING |
| 6. | 707-51-25210 | [1] | PACKING,ROD (KIT) |
| 7. | 707-56-25510 | [1] | SEAL,DUST (KIT) |
| 8. | 07179-12037 | [1] | RING,SNAP |
| 9. | 07000-13035 | [1] | O-RING (KIT) |
| 10. | 707-35-52350 | [1] | RING,BACK-UP (KIT) |
| 11. | 707-34-45010 | [1] | O-RING (KIT) |
| 12. | 21R-63-76120 | [1] | ROD,PISTON |
| 15. | 707-36-40030 | [1] | PISTON |
| 16. | 707-44-40070 | [1] | RING,PISTON (KIT) |
| 17. | 07155-00410 | [1] | RING,WEAR (KIT) |
| 18. | 01580-01613 | [1] | NUT |
| KIT. | 707-98-03040 | [1] | SERVICE KIT |
