21R-63-02050 21R6302050 Blade Cylinder Seal Kit For Komatsu PC02-1 PC02-1A
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
21R-63-02050 21R6302050 Blade Cylinder Seal Kit For Komatsu PC02-1 PC02-1A
| Name | 21R-63-02050 21R6302050 Blade Cylinder Seal Kit |
| Type | Blade Cylinder seal kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material |
Part Numbers of Cylinder Service Kits:
| 707-98-73010 | 195-63-05040 | 707-99-84200 |
| 707-98-73020 | 195-63-05041 | 707-98-11350 |
| 707-98-73400 | 195-63-05130 | 707-98-11360 |
| 707-98-11020 | 707-98-56610 | 707-99-75600 |
| 707-98-64400 | 707-98-74410 | 707-99-77620 |
| 707-99-45525 | 707-98-74400 | 707-99-84050 |
| 707-99-45530 | 707-98-81010 | 707-99-75530 |
| 707-99-73040 | 707-99-56600 | 707-99-77400 |
| 707-99-73050 | 707-99-56610 | 131-62-05080 |
| 707-99-73070 | 707-99-74400 | 131-63-05050 |
| 707-99-73080 | 707-99-74410 | 130-63-05070 |
| 707-99-11050 | 707-99-74420 | 130-817-05030 |
| 707-99-64405 | 707-99-74430 | 130-63-05020 |
| 707-99-64440 | 707-99-74460 | 130-63-05050 |
| 707-99-45310 | 707-99-74100 | 707-98-75410 |
| 707-99-66600 | 707-99-74110 | 707-98-75420 |
| 707-99-66610 | 707-99-81010 | 707-98-95400 |
| 707-99-64200 | 707-99-81020 | 707-98-95410 |
| 707-99-45320 | 707-98-56620 | 707-98-95421 |
| 707-99-45376 | 707-98-56625 | 707-98-95430 |
| 707-99-47140 | 707-99-74020 | 707-98-84410 |
| 707-99-66620 | 707-99-74520 | 707-98-84420 |
| 707-99-66645 | 707-99-56690 | 707-98-84441 |
| 707-99-66790 | 707-98-24910 | 707-98-84450 |
| 707-99-66630 | 707-98-24700 | 707-98-22070 |
| 707-99-66655 | 707-99-24930 | 707-99-96202 |
| 707-99-66780 | 707-99-24640 | 131-63-05020 |
| 707-99-64210 | 707-99-24650 | 131-63-05040 |
| 707-99-64225 | 707-98-32820 | 135-63-05060 |
| 707-99-64370 | 707-98-41130 | 135-63-05050 |
| 707-99-66690 | 707-98-34510 | 135-63-05040 |
| 114-63-05010 | 707-98-34590 | 135-63-05020 |
| 114-63-05080 | 707-98-42420 | 135-63-05030 |
| 114-63-05030 | 707-99-42530 | 135-63-05010 |
| 707-98-22850 | 707-98-41060 | 707-98-36450 |
| 707-98-22910 | 707-99-32280 | 707-98-52130 |
| 707-98-24720 | 707-99-34590 | 707-99-35170 |
| 707-98-24710 | 707-99-84040 | 707-99-35160 |

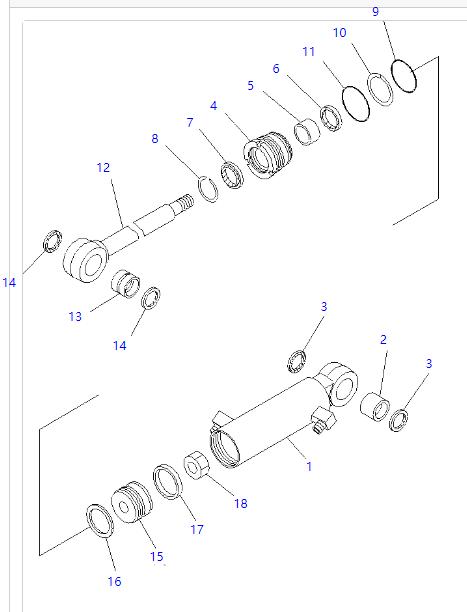

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 21R-63-09050 | [1] | CYLINDER AS'Y | |
| 21R-63-02050 | [1] | CYLINDER AS'Y | |
| 1. | 21R-63-96140 | [1] | CYLINDER |
| 2. | 21R-71-11140 | [1] | BUSHING |
| 3. | 07145-00025 | [2] | SEAL,DUST |
| 4. | 707-29-40030 | [1] | HEAD,CYLINDER |
| 5. | 707-52-10250 | [1] | BUSHING |
| 6. | 707-51-25210 | [1] | PACKING,ROD (KIT) |
| 7. | 707-56-25510 | [1] | SEAL,DUST (KIT) |
| 8. | 07179-12037 | [1] | RING,SNAP |
| 9. | 07000-13035 | [1] | O-RING (KIT) |
| 10. | 707-35-52350 | [1] | RING,BACK-UP (KIT) |
| 11. | 707-34-45010 | [1] | O-RING (KIT) |
| 12. | 21R-63-96120 | [1] | ROD,PISTON |
| 15. | 707-36-40030 | [1] | PISTON |
| 16. | 707-44-40070 | [1] | RING,PISTON (KIT) |
| 17. | 07155-00410 | [1] | RING,WEAR (KIT) |
| 18. | 01580-01613 | [1] | NUT |
| KIT. | 707-98-03040 | [1] | SERVICE KIT |
