21S-63-02050 21S6302050 Blade Cylinder Seal Kit For Komatsu PC03-1
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
21S-63-02050 21S6302050 Blade Cylinder Seal Kit For Komatsu PC03-1 D20A-7 D20AG-7 D21A-7 D21AG-7
| Name | 21S-63-02050 21S6302050 Blade Cylinder Seal Kit |
| Type | Blade Cylinder seal kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material |
Part Numbers of Cylinder Service Kits:
| 195-63-05040 | 707-99-84200 | 707-99-52160 |
| 195-63-05041 | 707-98-11350 | 707-99-43690 |
| 195-63-05130 | 707-98-11360 | 707-99-52170 |
| 707-98-56610 | 707-99-75600 | 707-98-52240 |
| 707-98-74410 | 707-99-77620 | 707-99-52230 |
| 707-98-74400 | 707-99-84050 | 707-99-52215 |
| 707-98-81010 | 707-99-75530 | 707-98-52210 |
| 707-99-56600 | 707-99-77400 | 707-99-25890 |
| 707-99-56610 | 131-62-05080 | 707-99-25880 |
| 707-99-74400 | 131-63-05050 | 707-98-52220 |
| 707-99-74410 | 130-63-05070 | 707-99-40120 |
| 707-99-74420 | 130-817-05030 | 707-98-28640 |
| 707-99-74430 | 130-63-05020 | 150-81-05010 |
| 707-99-74460 | 130-63-05050 | 154-61-05012 |
| 707-99-74100 | 707-98-75410 | 154-61-05011 |
| 707-99-74110 | 707-98-75420 | 154-61-05010 |
| 707-99-81010 | 707-98-95400 | 707-98-43520 |
| 707-99-81020 | 707-98-95410 | 707-99-52180 |
| 707-98-56620 | 707-98-95421 | 707-99-36150 |
| 707-98-56625 | 707-98-95430 | 707-99-36140 |
| 707-99-74020 | 707-98-84410 | 707-99-53620 |
| 707-99-74520 | 707-98-84420 | 707-99-53610 |
| 707-99-56690 | 707-98-84441 | 707-99-53610 |
| 707-98-24910 | 707-98-84450 | 707-99-43710 |
| 707-98-24700 | 707-98-22070 | 707-99-43660 |
| 707-99-24930 | 707-99-96202 | 707-98-43650 |
| 707-99-24640 | 131-63-05020 | 707-99-43700 |
| 707-99-24650 | 131-63-05040 | 707-99-43660 |
| 707-98-32820 | 135-63-05060 | 707-99-43250 |
| 707-98-41130 | 135-63-05050 | 707-99-43380 |
| 707-98-34510 | 135-63-05040 | 707-99-45160 |
| 707-98-34590 | 135-63-05020 | 707-99-24555 |
| 707-98-42420 | 135-63-05030 | 707-99-27530 |
| 707-99-42530 | 135-63-05010 | 707-98-12380 |
| 707-98-41060 | 707-98-36450 | 707-98-13970 |
| 707-99-32280 | 707-98-52130 | 707-98-11310 |

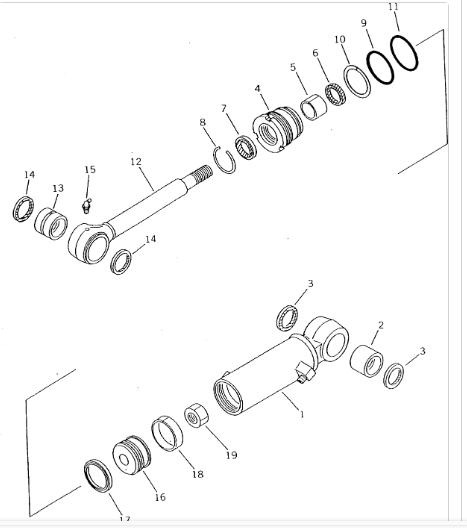

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 21S-63-02050 | [1] | CYLINDER AS'Y | |
| 1. | 21S-63-96140 | [1] | CYLINDER |
| 2. | 07143-10302 | [1] | BUSHING |
| 3. | 07145-00030 | [2] | SEAL,DUST |
| 4. | 707-29-50701 | [1] | HEAD,CYLINDER |
| 5. | 07177-02525 | [1] | BUSHING |
| 6. | 707-51-25210 | [1] | PACKING,ROD |
| 7. | 07016-20256 | [1] | SEAL,DUST |
| 8. | 07179-12037 | [1] | RING,SNAP |
| 9. | 07000-13045 | [1] | O-RING |
| 10. | 707-35-52510 | [1] | RING,BACK-UP |
| 11. | 07000-03048 | [1] | O-RING |
| 12. | 21S-63-96120 | [1] | ROD,PISTON |
| 13. | 07144-10302 | [1] | BUSHING |
| 15. | 07020-00675 | [1] | FITTING,GREASE |
| 16. | 707-36-50610 | [1] | PISTON |
| 17. | 07161-10050 | [1] | RING,PISTON |
| 18. | 10E-63-32390 | [1] | RING,WEAR |
| 19. | 707-68-10180 | [1] | NUT |
