226-61-11320 2266111320 Boom Cylinder Seal Kit For Komatsu PC75R-2 PW75R-2
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
226-61-11320 2266111320 Boom Cylinder Seal Kit For Komatsu PC75R-2 PW75R-2 PC95R-2 PW95R-2 PC110R-1 PW110R-1
| Name | 226-61-11320 2266111320 Boom Cylinder Seal Kit |
| Type | Boom Cylinder seal kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material |
Part Numbers of Cylinder Service Kits:
| 707-99-43740 | 707-99-43300 | 707-99-46440 |
| 707-99-34270 | 707-99-35300 | 707-99-46430 |
| 707-99-36720 | 707-99-27650 | 707-99-53310 |
| 707-99-36680 | 707-99-36190 | 707-99-37190 |
| 707-99-42310 | 707-99-56720 | 707-99-45170 |
| 707-99-24940 | 707-99-43280 | 707-99-36380 |
| 707-99-47130 | 707-99-27510 | 707-99-39760 |
| 707-98-12380 | 707-99-36290 | 707-99-25780 |
| 707-99-68560 | 707-99-46230 | 707-98-35330 |
| 707-99-69730 | 707-98-28610 | 707-99-45080 |
| 707-98-25830 | 707-99-89270 | 707-99-27460 |
| 707-99-37600 | 707-99-69780 | 707-99-27500 |
| 707-99-14430 | 707-99-78770 | 707-99-27590 |
| 878000394 | 707-99-72370 | 707-99-24730 |
| 878000392 | 707-99-72380 | 707-99-24740 |
| 878000389 | 707-99-77010 | 707-99-27470 |
| 707-98-36250 | 707-99-67840 | 707-99-25790 |
| 707-99-25840 | 707-99-25800 | 707-99-38440 |
| 707-99-69620 | 707-99-44390 | 707-99-38450 |
| 707-99-78620 | 707-99-37350 | 707-99-27680 |
| 707-99-56310 | 707-98-43530 | 707-99-38820 |
| 707-99-77250 | 707-98-04640 | 707-98-04720 |
| 707-99-89200 | 707-98-10880 | 707-98-13900 |

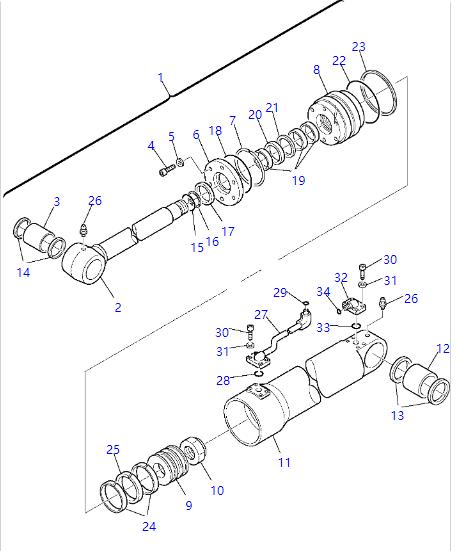

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 1 | 226-61-11340 | [1] | 2ND BOOM CYLINDER, ASY. |
| 2. | 21D-61-16121 | [1] | PISTON ROD |
| 3. | 21D-61-16170 | [1] | BUSHING |
| 4. | 21D-09-13110 | [6] | SCREW |
| 5. | 21D-09-73700 | [6] | SPRING WASHER |
| 6. | 21D-61-16130 | [1] | COVER |
| 7. | 21D-61-12140 | [1] | RING |
| 8. | 21D-61-16140 | [1] | CYLINDER HEAD |
| 9. | 21D-61-16151 | [1] | PISTON |
| 10. | 21D-09-24480 | [1] | NUT |
| 11. | 21D-61-16111 | [1] | CYLINDER |
| 12. | 21D-61-16180 | [1] | BUSHING |
| 12. | 226-61-11320 | [1] | KIT, GASKET |
| 13 | 21D-09-67120 | [2] | GASKET |
| 14 | 07145-00050 | [2] | SEAL, DUST OEM |
| 15 | 855021824 | [1] | O-RING |
| 16 | 855080824 | [2] | RING, WEAR |
| 17 | 855661048 | [1] | GASKET |
| 18 | 855021158 | [1] | O-RING |
| 19 | 21D-09-67350 | [3] | PACKING ROD |
| 20 | 21D-09-67440 | [1] | GASKET |
| 21 | 21D-09-67380 | [1] | GASKET |
| 22 | 21D-09-69980 | [1] | O-RING |
| 23 | 21D-09-65170 | [1] | RING, WEAR |
| 24 | 21D-09-67230 | [2] | PACKING ROD |
| 25 | 855661206 | [1] | GASKET |
| 26. | 21D-09-89140 | [2] | FITTING |
| 27. | 226-61-11331 | [1] | PIPE |
| 28 | 21D-09-69870 | [1] | O-RING |
| 29 | 21D-09-69770 | [1] | O-RING |
| 30. | 01252-40825 | [8] | SCREW |
| 31. | 21D-09-73690 | [8] | SPRING WASHER |
| 32. | 226-61-11110 | [1] | FLANGE |
