232-27-05010 2322705010 Leaning Cylinder Seal Kit Front Axle For Komatsu Grader GD28AC-1 GD31-1 GD37-4 GD37-5H GD28AC-1

Name: 232-27-05010 2322705010 Leaning Cylinder Seal Kit Front Axle For Komatsu Grader GD28AC-1 GD31-1 GD37-4 GD37-5H GD28AC-1
Brand: GUANGZHOU SUNCAR SEALS CO.,LTD.

Price Negotiable

Price: Negotiable

MOQ: Accept trial order

Delivery Time: 3-5 days after payment received(public holiday excluded)

Brand: SUNCAR

Product Description

232-27-05010 2322705010 Leaning Cylinder Seal Kit For Komatsu GD28AC-1 GD31-1 GD37-4 GD37-5H

Name	232-27-05010 2322705010 Leaning Cylinder Seal Kit
Type	Leaning Cylinder seal kit
Pressure	0~60MPa
Temperature	-45℃ +200℃
Speed	15m/s
Medium	Hydraulic oil, fire retardant liquid, water and others
Features	Pressure & Oil Resistant
Material	IDI

Part Numbers of Cylinder Service Kits:

707-99-75410	707-98-71020	707-98-73010
707-99-75440	707-99-56510	707-98-73020
707-99-43570	707-99-74440	707-98-73400
707-99-84400	707-98-74100	707-98-64400
707-99-84440	707-99-67690	707-99-45525
707-99-43590	707-99-47510	707-99-45530
707-99-84450	707-99 -64080	707-99-73040
707-99-84470	707-99-43170	707-99-73050
707-99-77090	707-99-44220	707-99-73070
707-99-44060	203-63-52340	707-99-73080
707-99-47830	203-63-72340	707-99-64405
707-99-77600	205-63-54101	707-99-64440
707-99-66210	707-99-76010	707-99-45320
707-99-96201	707-98-02420	707-99-47140
707-99-96130	708-1S-00410	707-99-66620
707-99-73010	707-99-15710	707-99-66645
707-98-62131	707-98-22020	707-99-66790
707-99-71420	707-98-45610	707-99-66630
707-98-41010	707-98-11070	707-99-64210
707-98-53410	175-63-05140	707-99-64225
13F-63-02070	175-63-05041	707-99-64370
707-98-60100	707-99-71130	114-63-05010
707-98-40020	101-61-05010	707-98-22850
707-98-37580	101-62-05020	707-98-22910

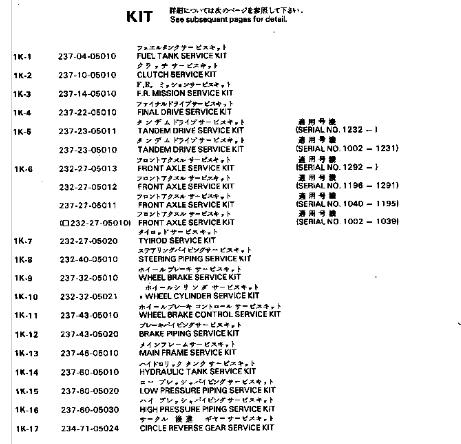

Parts on group :

Pos.	Part No	Qty	Parts name
1	237-04-05010	[1]	SERVICE KIT,FUEL TANK
1.	237-06-15190	[1]	PACKING
1.	04059-01010	[1]	WIRE
1.	07005-01419	[2]	GASKET
2	237-10-05010	[1]	SERVICE KIT,CLUTCH
2.	04059-01016	[1]	WIRE
2.	236-10-11210	[1]	GASKET
2.	237-10-11120	[1]	GASKET
3	237-14-05010	[1]	SERVICE KIT,F.R. MISSION
3.	07000-03022	[2]	O-RING OEM
3.	237-14-12130	[1]	GASKET
3.	237-14-12150	[1]	GASKET
3.	07002-12434	[4]	O-RING
3.	234-14-22460	[1]	GASKET
3.	07017-00022	[1]	SEAL,OIL
3.	07005-08182	[1]	GASKET
3.	04081-04012	[3]	LOCK
3.	07000-12115	[5]	O-RING OEM
3.	236-22-23221	[1]	SEAL,OIL
3.	04050-05035	[1]	PIN,COTTER
3.	07000-12055	[1]	O-RING
3.	07010-00070	[1]	SEAL,OIL
3.	01650-21012	[2]	WASHER,LOCK
3.	07000-13048	[1]	O-RING
3.	07000-13030	[1]	O-RING
3.	07000-12085	[1]	O-RING
3.	02893-05037	[1]	O-RING
3.	237-14-12260	[1]	SEAL,OIL
3.	07012-00075	[1]	SEAL,OIL
3.	07000-15230	[1]	O-RING
4	237-22-05010	[1]	SERVICE KIT,FINAL DRIVE
4.	237-22-11140	[1]	GASKET
4.	07003-13036	[1]	GASKET
4.	07000-15190	[2]	O-RING
4.	07012-00145	[2]	SEAL,OIL
4.	07000-15155	[3]	O-RING
4.	07012-00085	[1]	SEAL,OIL
4.	07000-15170	[1]	O-RING OEM
4.	237-22-00030	[1]	SHIM AS'Y
4.	237-22-11540	[2]	PLATE,LOCK
4.	237-22-00040	[2]	SHIM AS'Y
4.	232-22-11440	[4]	LOCK
4.	230-22-12470	[2]	LOCK
5	237-23-05011	[2]	SERVICE KIT,TANDEM DRIVE
5	237-23-05010	[2]	SERVICE KIT,TANDEM DRIVE
5.	232-23-51220	[1]	GASKET
5.	237-23-11130	[1]	GASKET
5.	237-23-11151	[2]	GASKET
5.	237-23-11150	[2]	GASKET
5.	232-23-11550	[4]	GASKET
5.	07000-05220	[1]	O-RING
5.	237-23-00020	[1]	SHIM AS'Y
5.	07000-15160	[2]	O-RING OEM
5.	237-23-00030	[2]	SHIM AS'Y
5.	07000-15325	[2]	O-RING
5.	07012-00080	[2]	SEAL,OIL
5.	01658-26223	[1]	WASHER,LOCK
5.	04050-18080	[2]	PIN,COTTER
6	232-27-05013	[1]	SERVICE KIT,FRONT AXLE
6	232-27-05012	[1]	SERVICE KIT,FRONT AXLE
6	237-27-05011	[1]	SERVICE KIT,FRONT AXLE
6	232-27-05010	[1]	SERVICE KIT,FRONT AXLE
6.	07145-00040	[14]	SEAL
6.	04050-14025	[1]	PIN,COTTER
6.	01650-21616	[2]	WASHER
6.	04050-16055	[2]	PIN,COTTER
6.	232-27-11321	[2]	SEAL,OIL
6.	232-27-11320	[2]	SEAL,OIL
6.	234-27-11371	[2]	GASKET
6.	234-27-11372	[2]	GASKET
6.	232-27-51280	[2]	GASKET
6.	232-27-11140	[1]	GASKET
6.	04050-16060	[3]	PIN,COTTER
6.	04050-14040	[2]	PIN,COTTER
6.	04050-15050	[2]	PIN,COTTER
6.	04050-15045	[2]	PIN,COTTER
6.	01658-23018	[1]	WASHER
6.	07145-00035	[2]	SEAL OEM
7	232-27-05020	[1]	SERVICE KIT,TYE ROD
7.	04050-14030	[1]	PIN,COTTER
7.	232-40-15220	[4]	PIN
8	237-40-05010	[1]	SERVICE KIT,STEERING PIPING
8.	237-40-13160	[4]	O-RING
9	237-32-05010	[4]	SERVICE KIT,WHEEL BRAKE
9.	04050-03028	[2]	PIN,COTTER
9.	04050-03025	[2]	PIN,COTTER
9.	232-23-12140	[1]	LOCK
9.	232-32-11320	[2]	VALVE
9.	232-32-21140	[1]	LOCK
10.	232-32-05021	[1]	SERVICE KIT,WHEEL CYLINDER
10	232-32-11241	[2]	CAP
10	232-32-11221	[2]	BOOT
10	232-32-11311	[1]	GASKET
10	232-32-11341	[1]	GASKET
10	232-32-11350	[1]	CAP
11	237-43-05010	[1]	SERVICE KIT,WHEEL BRAKE
11.	06122-02504	[2]	SEAL
11.	04050-06035	[1]	PIN,COTTER
11.	04050-04022	[1]	PIN,COTTER
11.	01650-01412	[1]	WASHER
11.	232-43-13230	[1]	VALVE
11.	232-43-00111	[1]	PISTON AS'Y
11.	232-43-13340	[1]	BOOT
11.	232-43-13390	[1]	GASKET
12	237-43-05020	[1]	SERVICE KIT,BRAKE PIPING
12.	07004-01525	[2]	GASKET
12.	232-43-14240	[6]	PACKING
13	237-46-05010	[1]	SERVICE KIT,MAIN FRAME
13.	07000-15095	[2]	O-RING
13.	07145-00065	[4]	SEAL
13.	236-46-13610	[4]	O-RING
14	237-60-05010	[1]	SERVICE KIT,HYDRAULIC TANK
14.	07000-15240	[1]	O-RING OEM
14.	07002-11223	[1]	O-RING
14.	07000-13072	[1]	O-RING
15	237-60-05020	[1]	SERVICE KIT,LOW PRESSURE PIPING
15.	07000-13035	[2]	O-RING
15.	07000-13032	[1]	O-RING
15.	07000-13028	[1]	O-RING
15.	07000-13022	[2]	O-RING OEM
15.	07002-12034	[4]	O-RING
16	237-60-05030	[1]	SERVICE KIT,HIGH PRESSURE PIPING
16.	07000-15075	[3]	O-RING
17	234-71-05024	[1]	SERVICE KIT,CIRCLE REVERSE GEAR
17.	07002-11823	[2]	O-RING
17.	07012-00062	[1]	SEAL,OIL
17.	07011-00028	[1]	SEAL,OIL
17.	232-71-13230	[1]	GASKET
17.	234-71-13131	[1]	GASKET
17.	234-71-13280	[1]	PIN
17.	04050-04025	[1]	PIN,COTTER
17.	234-71-13170	[1]	PLATE,LOCK
17.	04081-06012	[1]	LOCK,PLATE
17.	232-71-13650	[1]	LOCK
