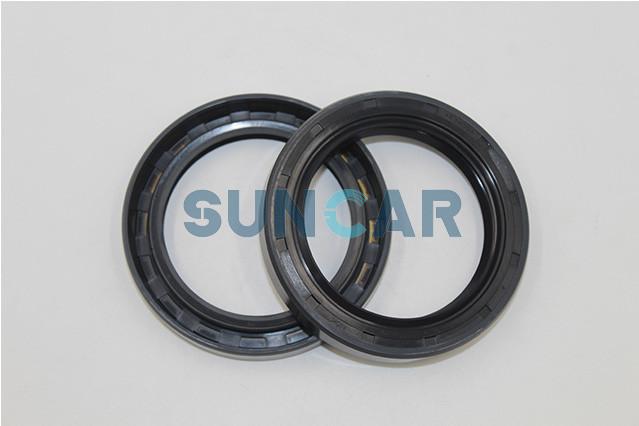

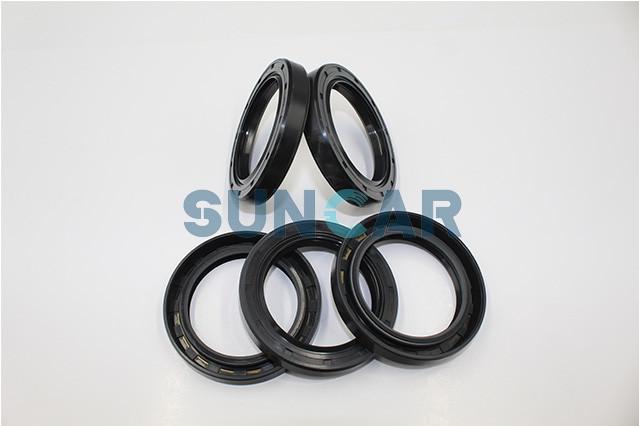

417-15-13690 4171513690 Oil Seal TC For Komatsu Wheel Loader Grader Transmission Service Kit GD555 GD655 WR11 WR11SS
417-15-13690 4171513690 Oil Seal TC For Komatsu Wheel Loader Grader Transmission Service Kit GD555 GD655 WR11 WR11SS 512 518 GD675 WA100 WA100SS WA100SSS WA120 WA120L WA150 WA180 WA180L WA180PT
| Product name | 417-15-13690 4171513690 Oil Seal TC |
| Brand name | SUNCAR |
| SpecifiC-A-Tions for Part No. | 417-15-13690 4171513690 |
| Availability |
In stock. |
| MOQ | Accept trail order. |
| Supply alility | 2200 sets per months |
| Characteristic |
|
| Condition | 100 % new |
| Payment | Paypal, T/T, Western union, Bank transfer |
| Paking details | PP bag inside,carton box outside. |
| Original place | Guangdong province,China |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| AppliC-A-Tion | Cylinder,constuction machinery works,retail |
Material Details:
| Material | Oil resistance | Abrasion resistance | Low temperature | high temperature | Acid resistance | Weather resistant |
| NBR | Very good | Very good | -40 | 125 | good | Moderate |
| ACM | Very good | Very good | -25 | 150 | Moderate | Very good |
| FKM | Very good | Very good | -20 | 250 | good | Very good |
| EPDM | Moderate | good | -40 | 125 | good | Very good |
| PTFE | Very good | Very good | -65 | 260 | Very good | Very good |
| SBR | Moderate | Very good | -45 | 100 | Moderate | Moderate |
| Fiber | Very good | Very good | -50 | 160 | Very good | Very good |
| HNBR | Very good | Very good | -25 | 140 | good | good |
| VMQ | good | good | -60 | 225 | Moderate | Very good |
Oil Seal Features:
1). Excellent durability and flexibility of use.
2). The specially designed rope enhances durability and length stability.
3). Excellent heat resistance, oil resistance and abrasion resistance.
4). The display is stable during high-speed rotation.
5). Due to the excellent special frame, heat resistance, oil, fatigue, aging and friction.
6). High power, fast speed, long service life, low distortion and less space.

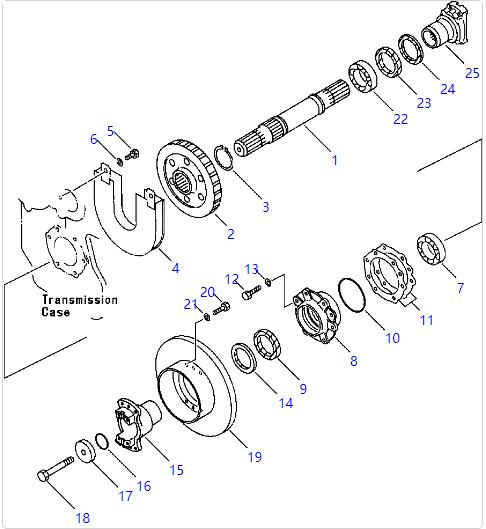

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 1 | 417-15-13610 | [1] | SHAFT, OUTPUT |
| 2 | 417-15-13623 | [1] | GEAR |
| 3 | 04064-06020 | [1] | RING, SNAP |
| 4 | 417-15-13641 | [1] | COVER, GEAR |
| 5 | 01010-31225 | [2] | BOLT |
| 6 | 01643-31232 | [2] | WASHER |
| 7 | 06002-30210 | [1] | BEARING |
| 8 | 417-15-13631 | [1] | RETAINER |
| 9 | 417-15-13690 | [1] | SEAL, OIL - OUTPUT SHAFT |
| 10 | 07000-02105 | [1] | O-RING - OUTPUT SHAFT RETAINER OEM |
| 11 | 417-15-13650 | [20] | SHIM, 0.05mm |
| 11 | 417-15-13660 | [12] | SHIM, 0.1mm |
| 11 | 417-15-13670 | [8] | SHIM, 0.2mm |
| 12 | 01010-31235 | [6] | BOLT |
| 14 | 417-15-13810 | [1] | SEAL DUST - OUTPUT SHAFT |
| 15 | 417-15-13722 | [1] | COUPLING, FRONT - OUTPUT SHAFT |
| 16 | 417-15-13790 | [1] | O-RING - FRONT COUPLING - OUTPUT SHAFT |
| 17 | 417-15-13770 | [1] | HOLDER |
| 18 | 01011-31610 | [1] | BOLT |
| 19 | 417-22-15111 | [1] | DISC, PARKING BRAKE |
