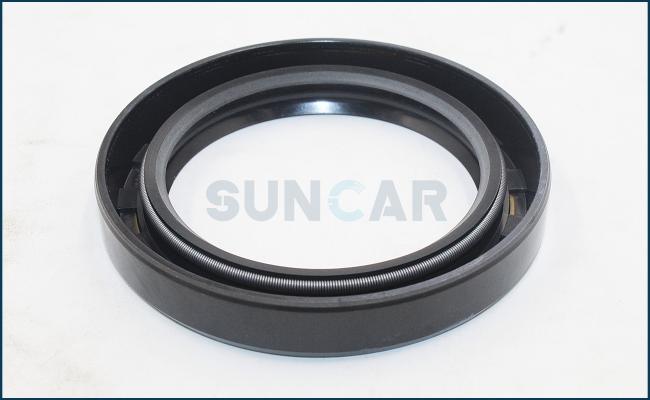

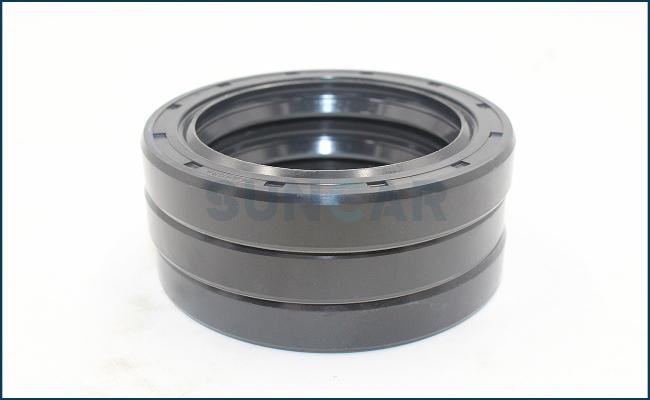

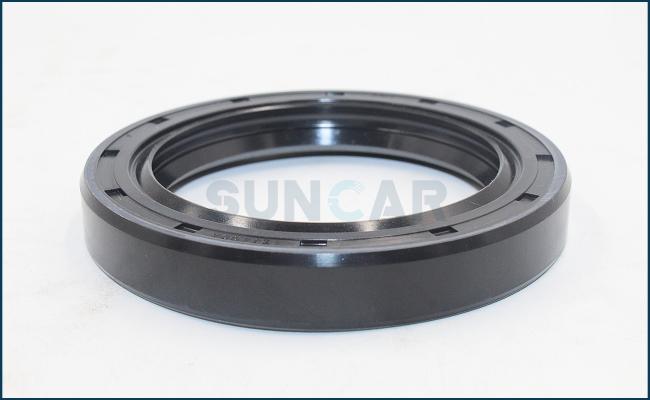

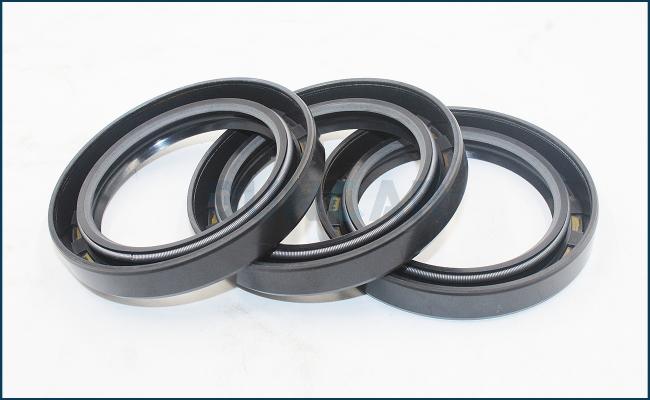

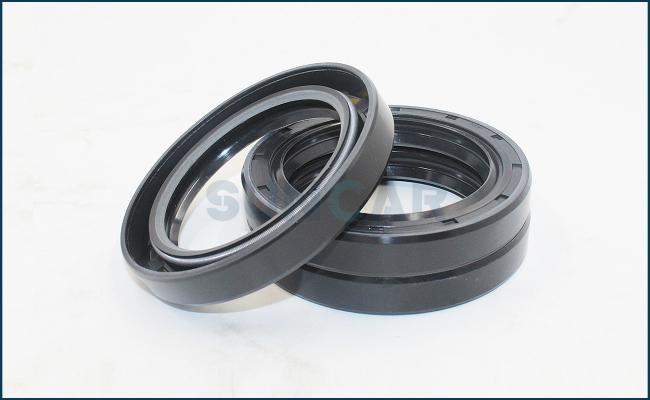

07012-11065 0701211065 Oil Seal TC For Komatsu Bulldozer Bevel Gear And Shaft D20P/20A/20PL/21A/21P-3 D40A/40AF/40PF-1
07012-11065 0701211065 Oil Seal TC For Komatsu Bulldozer Bevel Gear And Shaft D20P/20A/20PL/21A/21P-3 D40A/40AF/40PF-1
| Product name | 07012-11065 0701211065 Oil Seal TC For Komatsu |
| Brand name | SUNCAR |
| SpecifiC-A-Tions for Part No. | 07012-11065 0701211065 |
| Availability |
In stock. |
| MOQ | Accept trail order. |
| Supply alility | 2200 sets per months |
| Characteristic |
|
| Condition | 100 % new |
| Payment | Paypal, T/T, Western union, Bank transfer |
| Paking details | PP bag inside,carton box outside. |
| Original place | Guangdong province,China |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| AppliC-A-Tion | Cylinder,constuction machinery works,retail |
Compatible equipment models:
| BULLDOZERS | D20A D20P D20PL D21A D21P D40A D40AF D40PF D40PL D40PLF D45A D45P |
| CRAWLERLOADERS | D45S |
| GRADERS | GD305A GD355A GD405A |
Material Details:
| Material | Oil resistance | Abrasion resistance | Low temperature | high temperature | Acid resistance | Weather resistant |
| NBR | Very good | Very good | -40 | 125 | good | Moderate |
| ACM | Very good | Very good | -25 | 150 | Moderate | Very good |
| FKM | Very good | Very good | -20 | 250 | good | Very good |
| EPDM | Moderate | good | -40 | 125 | good | Very good |
| PTFE | Very good | Very good | -65 | 260 | Very good | Very good |
| SBR | Moderate | Very good | -45 | 100 | Moderate | Moderate |
| Fiber | Very good | Very good | -50 | 160 | Very good | Very good |
| HNBR | Very good | Very good | -25 | 140 | good | good |
| VMQ | good | good | -60 | 225 | Moderate | Very good |
Oil Seal Features:
1). Excellent durability and flexibility of use.
2). The specially designed rope enhances durability and length stability.
3). Excellent heat resistance, oil resistance and abrasion resistance.
4). The display is stable during high-speed rotation.
5). Due to the excellent special frame, heat resistance, oil, fatigue, aging and friction.
6). High power, fast speed, long service life, low distortion and less space.

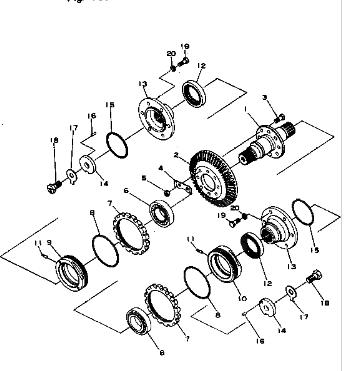

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 1 | 101-21-11253 | [1] | SHAFT,BEVEL GEAR |
| 1 | 101-21-11252 | [1] | SHAFT,BEVEL GEAR |
| 2 | 101-21-21160 | [1] | GEAR,BEVEL |
| 3 | 100-21-12130 | [8] | BOLT,REAMER |
| 4 | 101-21-11330 | [4] | LOCK (KIT) |
| 5 | 01580-01210 | [8] | NUT |
| 6 | 06000-32210 | [2] | BEARING |
| 7 | 101-21-11211 | [2] | NUT |
| 8 | 07000-03110 | [2] | O-RING (KIT) |
| 9 | 101-21-11181 | [1] | CAGE,L.H. |
| 10 | 101-21-11191 | [1] | CAGE,R.H. |
| 11 | 141-21-12232 | [2] | PIN,DOWEL |
| 12 | 07012-11065 | [2] | SEAL,OIL (KIT) |
| 13 | 101-21-11281 | [2] | COUPLING |
| 13 | 101-21-11280 | [2] | COUPLING |
| 14 | 100-21-12150 | [2] | WASHER |
| 15 | 07000-03088 | [2] | O-RING (KIT) |
| 16 | 04020-00514 | [2] | PIN,DOWEL |
| 17 | 01650-01816 | [2] | WASHER,LOCK |
| 18 | 101-21-21150 | [2] | BOLT |
| 19 | 01010-31230 | [16] | BOLT |
| 20 | 01602-01236 | [16] | WASHER,SPRING |
