XKAQ-00087 XKAQ00087 13B0169 TC Oil Seal For Hyundai Excavator Swing Reduction Gear R110-7 R110-7A R140LC-7 R140LC-7A
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Product Description
XKAQ-00087 XKAQ00087 13B0169 TC Oil Seal For HYUNDAI Excavator S4K S6K
TC Oil Seal Property:
1. Ozone and chemical resistance
2. High temperature resistance
3. Anti-aging,good flexibility
4. Acid resistance, weathering resistance
5. abrasion resistance
Products Details :
| Product name | XKAQ-00087 XKAQ00087 13B0169 TC Oil Seal For HYUNDAI Excavator S4K S6K |
| Part number | XKAQ-00087 XKAQ00087 13B0169 |
| Lip material | NBR 795 |
| Type | TCN oil seal |
| AppliC-A-Tion | Transmission;excavator;piston;resell store;Hydraulic pump/motor |
| Material |
NBR A727 |
| Features | 1. Unusually high abrasion resistance. 2. High resistance to qgainest extrusion. 3. Perfect sealing performance. 4. Easy to install. 5. Good temperature resistance. 6. Double mouths prevent dust pollution. 7. Easy to install |
| Place original | Guangzhou,China |
| Temp. | -40℃~+120℃ |
| Max speed | ≤25m/s |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Sealing subject liquid | Lubricant |
| Dust lip | Presence |
| Style | Oil seal |
| Medium | hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic seal ring |
| Size | Standard size |
Compatible models:
| 7 SERIES WHEEL EXCAVATOR | R140W7 R140W7A |
| 7-SERIES CRAWLER EXCAVATOR | R110-7 R110-7A R140LC-7 R140LC-7A RD110-7 |
| 9-SERIES CRAWLER EXCAVATOR | R125LCR-9A R140LC9 R140LC9A R140LC9S R140LC9V R145CR9 R145CR9A RB140LC9S RD140LC9 |
| 9-SERIES WHEEL EXCAVATOR | R140W9 R140W9A R140W9S |
| F-SERIES CRAWLER EXCAVATOR | HX140L |
| F-SERIES WHEEL EXCAVATOR | HW140 |

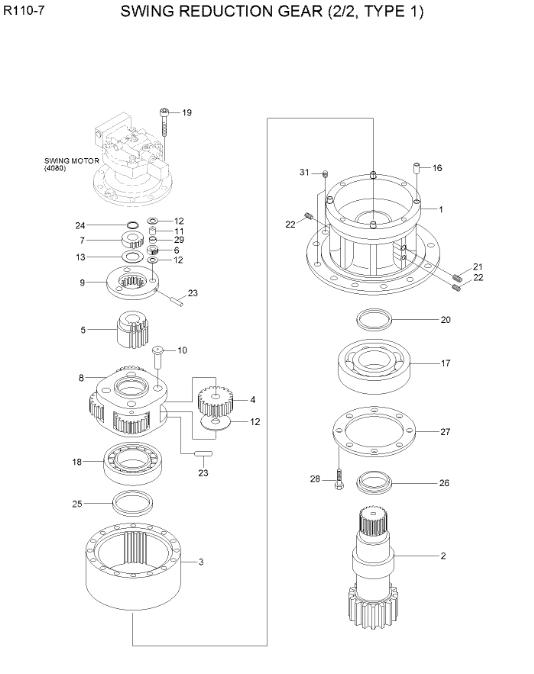

Parts on group:
| Pos. | Part No | Qty | Parts name |
| *. | @ | [1] | SWING MOTOR ASSY |
| *-2. | 31N4-10140 | [1] | SWING REDUCTION GEAR |
| *-2. | 31N4-10141 | [1] | SWING REDUCTION GEAR |
| *-2. | 31N4-10142AR | [1] | SWING REDUCTION GEAR |
| 1 | XKAQ-00134 | [1] | CASING |
| 1 | XKAQ-00332 | [1] | CASING |
| 2 | XKAQ-00249 | [1] | SHAFT-DRIVE |
| 3 | XKAQ-00102 | [1] | GEAR-RING |
| 5 | XKAQ-00100 | [1] | GEAR-SUN NO.2 |
| 5 | XKAQ-00278 | [1] | GEAR-SUN NO.2 |
| *-21. | XKAQ-00271 | [1] | CARRIER NO.1 ASSY |
| 6 | XKAQ-00099 | [3] | GEAR-PLANET NO.1 |
| 7 | XKAQ-00098 | [1] | GEAR-SUN NO.1 |
| 7 | XKAQ-00277 | [1] | GEAR-SUN NO.1 |
| 9 | XKAQ-00096 | [1] | CARRIER NO.1 |
| 11 | XKAQ-00094 | [3] | PIN ASSY NO.1 |
| 12 | XKAQ-00093 | [6] | WASHER-THRUST(B) |
| 13 | XKAQ-00092 | [1] | WASHER-THRUST(A) |
| 13 | XKAQ-00057 | [1] | PLATE-SIDE 1 |
| 23 | XKAQ-00086 | [3] | PIN-SPRING |
| 24 | XKAQ-00085 | [4] | RING-STOP |
| 29 | XKAQ-00080 | [3] | CAGE-NEEDLE |
| *-22. | XKAQ-00272 | [1] | CARRIER NO.2 ASSY |
| 4 | XKAQ-00101 | [4] | GEAR-PLANET NO.2 |
| 8 | XKAQ-00097 | [1] | CARRIER NO.2 |
| 10 | XKAQ-00095 | [4] | PIN ASSY NO.2 |
| 12 | XKAQ-00093 | [4] | WASHER-THRUST(B) |
| 23 | XKAQ-00086 | [4] | PIN-SPRING |
| 16 | XKAQ-00091 | [2] | PIN-KNOCK |
| 17 | XKAQ-00090 | [1] | BEARING-SPH ROLLER |
| 18 | XKAQ-00089 | [1] | BEARING-CYL ROLLER |
| 19 | XKAQ-00088 | [10] | BOLT-SOCKET |
| 20 | XKAQ-00087 | [1] | SEAL-OIL |
| 21 | XKAQ-00049 | [1] | PLUG |
| 22 | XKAQ-00066 | [2] | PLUG |
| 25 | XKAQ-00084 | [1] | RING-STOP |
| 26 | XKAQ-00083 | [1] | SPACER |
| 27 | XKAQ-00082 | [1] | PLATE-COVER |
| 28 | XKAQ-00081 | [6] | BOLT-HEX |
| 31 | XKAQ-00988 | [4] | CAP-RUBBER |
