07012-40095 0701240095 Oil Seal For Komatsu Dump Truck Grader Center Alxe GD705A HM350 HM400
07012-40095 0701240095 Oil Seal For Komatsu Dump Truck Grader Center Alxe GD705A HM350 HM400
Products Details :
| Product name | 07012-40095 0701240095 Oil Seal |
| Part number | 07012-40095 0701240095 |
| Type | TB oil seal |
| AppliC-A-Tion | Transmission;excavator;piston;resell store;Hydraulic pump/motor |
| Material |
NBR A727 |
| Features | 1. Unusually high abrasion resistance. 2. High resistance to qgainest extrusion. 3. Perfect sealing performance. 4. Easy to install. 5. Good temperature resistance. 6. Double mouths prevent dust pollution. 7. Easy to install |
| Place original | Guangzhou,China |
| AppliC-A-Tion model | GD705A, HM350, HM400 |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Sealing subject liquid | Lubricant |
| Dust lip | Presence |
| Style | Oil seal |
| Medium | hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic seal ring |
| Size | Standard size |

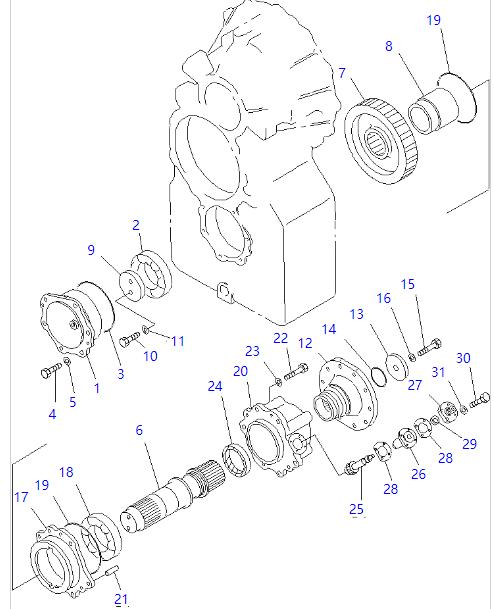

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 234-15-00400 | [1] | TRANSMISSION ASSY | |
| 1. | 234-15-23150 | [1] | CAGE |
| 2. | 234-15-29340 | [1] | BEARING |
| 3. | 07000-45170 | [1] | O-RING OEM |
| 4. | 01010-51235 | [6] | BOLT |
| 5. | 01602-21236 | [6] | WASHER,SPRING |
| 6. | 234-15-23310 | [1] | SHAFT |
| 7. | 234-15-23230 | [1] | GEAR |
| 8. | 234-15-23260 | [1] | COLLAR |
| 9. | 234-15-23290 | [1] | HOLDER |
| 10. | 01643-31445 | [2] | WASHER |
| 11. | 01010-51440 | [2] | BOLT |
| 12. | 234-15-23271 | [1] | COUPLING |
| 13. | 234-15-23280 | [1] | HOLDER |
| 14. | 07000-45065 | [1] | O-RING |
| 15. | 01011-51610 | [1] | BOLT |
| 16. | 01643-31645 | [1] | WASHER |
| 17. | 234-15-23360 | [1] | CAGE |
| 18. | 234-15-29350 | [1] | BEARING |
| 20. | 234-15-23350 | [1] | CAGE |
| 21. | 175-15-31210 | [2] | PIN |
| 22. | 01010-51250 | [6] | BOLT |
| 24. | 07012-40095 | [1] | SEAL,OIL |
| 25. | 232-15-13420 | [1] | SHAFT |
| 26. | 232-15-13430 | [1] | BUSHING |
| 27. | 232-15-13440 | [1] | FLANGE |
| 28. | 232-15-13450 | [2] | GASKET |
| 29. | 234-15-29110 | [1] | SEAL,OIL |
| 30. | 01010-50630 | [4] | BOLT |
| 31. | 01602-20619 | [4] | WASHER,SPRING |
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term).
2. Quoting our competitive price for you.
3. Place an order after approving the quotation or products.
4. We will send Proforma Invoice or sales confirmation.
5. You prepay by T/T or Paypal or Western Union or through bank.
6. We will starting to produce after we get your kind payment.
7. Packing.
8. Shipping the goods to your(our)forwarder.
9. Sending all doc for your custom clearance.
10. Time to reorder.
