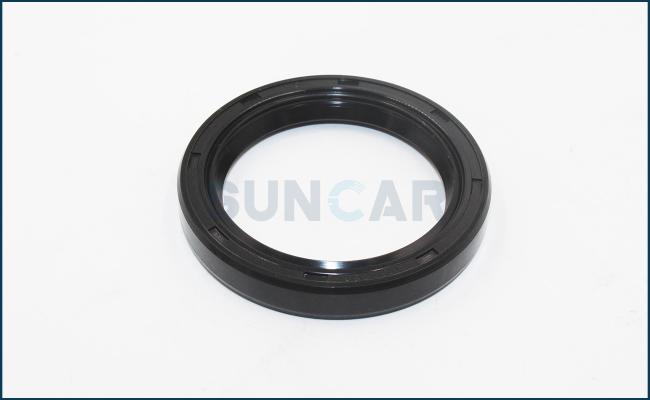

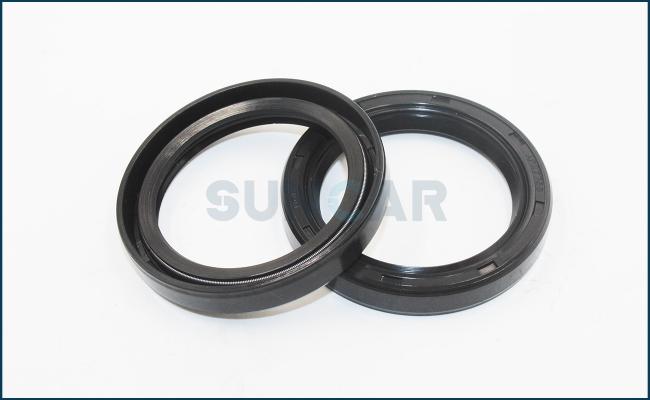

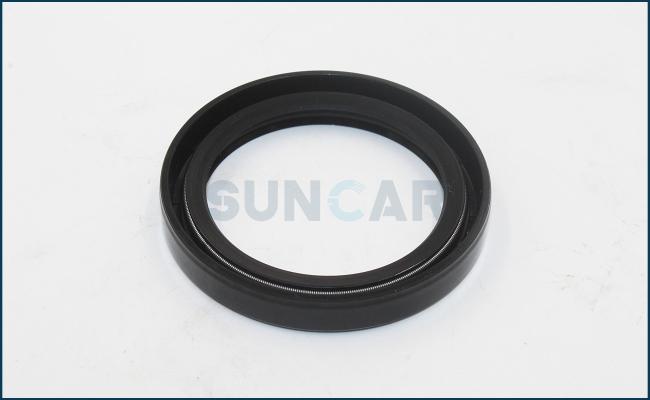

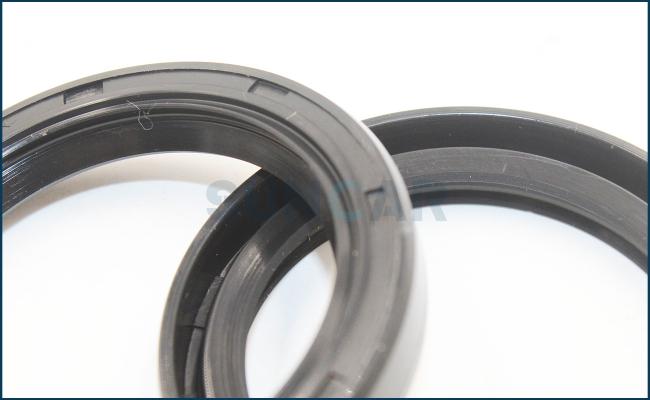

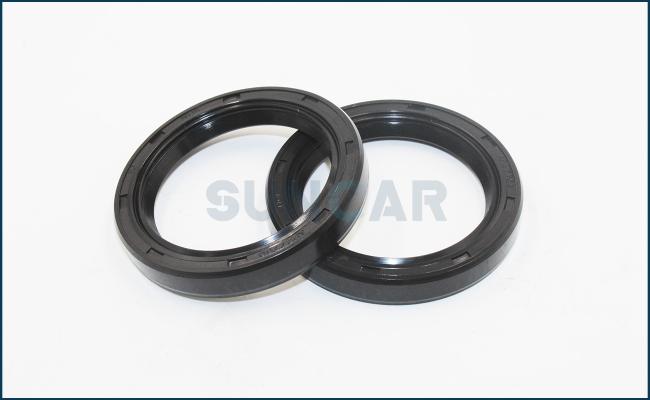

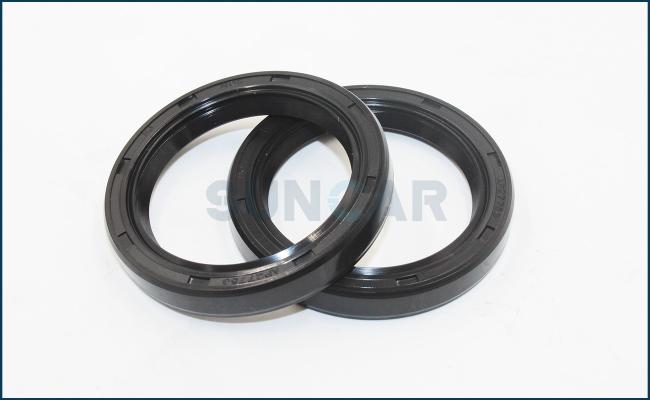

PTCV48V 232065 Oil Seal For Doosan Excavator Travel Motor Solar 280LC-III 290LC-V 290L 300LL 330LC-V 340LC-V
PTCV48V 232065 Oil Seal For Doosan Excavator Travel Motor Solar 280LC-III 290LC-V 290L 300LL 330LC-V 340LC-V
Products Details :
| Product name | PTCV48V 232065 Oil Seal |
| Part number | PTCV48V 232065 |
| Type | TCV oil seal |
| AppliC-A-Tion | Transmission;excavator;piston;resell store;Hydraulic pump/motor |
| Material |
NBR A727 |
| Features | 1. Unusually high abrasion resistance. 2. High resistance to qgainest extrusion. 3. Perfect sealing performance. 4. Easy to install. 5. Good temperature resistance. 6. Double mouths prevent dust pollution. 7. Easy to install |
| Place original | Guangzhou,China |
| AppliC-A-Tion model |
280LC-III 290LC-V 290L 300LL 330LC-V 340LC-V |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Sealing subject liquid | Lubricant |
| Dust lip | Presence |
| Style | Oil seal |
| Medium | hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic seal ring |
| Size | Standard size |

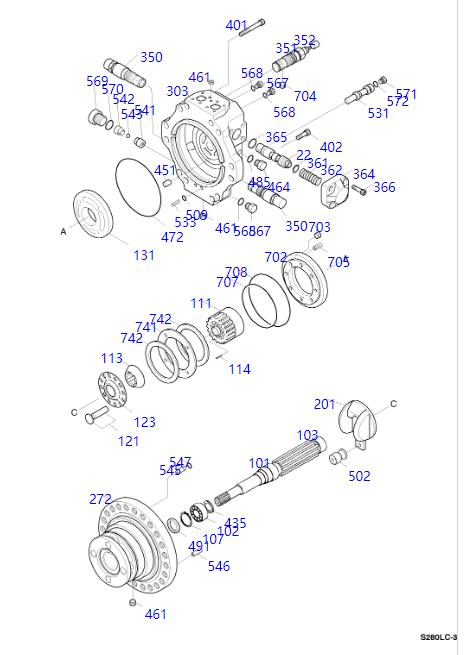

Parts on group :
| Pos. | Part No | Qty | Parts name |
| -. | 2401-9269 | [2] | TRAVEL DEVICE-DNB50D |
| 22 | 718810 | [1] | COUNTER BALANCE SPOOL |
| 101 | 135286 | [1] | DRIVE SHAFT |
| 102 | 232063 | [1] | ROLLER BEARING |
| 103 | 232064 | [1] | NEEDLE BEARING |
| 107 | 232060 | [1] | STOP RING |
| 111 | 135279 | [1] | CYLINDER BLOCK |
| 113 | 135281 | [1] | BUSH;SPHERICAL |
| 114 | 232056 | [9] | SPRING;CYLINDER |
| 121 | 718808 | [9] | PISTON & SHOE ASSY |
| 123 | 135287 | [1] | SET PLATE |
| 131 | 135288 | [1] | VALVE PLATE |
| 201 | 135282 | [1] | SWASH PLATE |
| 272 | 135284 | [1] | SHAFT CASING |
| 303 | 135280 | [1] | VALVE CASING |
| 350 | 718812 | [2] | RELIEF VALVE ASSY |
| 351 | 718811 | [1] | REDUCING VALVE ASSY |
| 352 | 135300 | [1] | ADJUST COVER |
| 361 | 135295 | [2] | WASHER;COUNTER BALANCE |
| 362 | 235028 | [2] | SPRING;COUNTER BALANCE |
| 364 | 135285 | [2] | COVER;COUNTER BALANCE |
| 365 | 201664 | [2] | O-RING(SPOOL) |
| 366 | 232062 | [8] | BOLT;SOCKET |
| 401 | 232061 | [2] | BOLT;SOCKET |
| 402 | 221796 | [4] | BOLT;SOCKET |
| 435 | 221014 | [1] | STOP RING |
| 451 | 135294 | [1] | PIN2;VALVE PLATE |
| 461 | 218562 | [13] | PLUG |
| 464 | 108843 | [2] | PLUG |
| 472 | 232067 | [1] | O-RING |
| 485 | 216292 | [2] | O-RING |
| 491 | 232065 | [1] | OIL SEAL |
| 502 | 718809 | [1] | TILTING PISTON & SHOE ASSY |
| 504 | 135293 | [2] | PIVOT BALL |
| 509 | 212346 | [1] | O-RING |
| 531 | 135302 | [1] | TILTING SPOOL |
| 533 | 232059 | [1] | SPRING;TILTING |
| 541 | 135296 | [1] | SEAT |
| 542 | 135297 | [1] | STOPPER |
| 543 | 200166 | [1] | STEEL BALL |
| 545 | 135289 | [1] | ORIFICE SCREW |
| 546 | 135301 | [1] | ORIFICE SCREW |
| 547 | 201685 | [2] | O-RING |
| 564 | 206699 | [2] | PLUG |
| 567 | 108844 | [4] | PLUG |
| 568 | 201689 | [4] | O-RING |
| 569 | 108877 | [2] | PLUG |
| 571 | 108883 | [1] | PLUG |
| 572 | 207424 | [1] | O-RING |
| 702 | 135283 | [1] | BRAKE PISTON |
| 703 | 135290 | [1] | ORIFICE SCREW |
| 704 | 135299 | [1] | ORIFICE SCREW |
| 705 | 232057 | [14] | SPRING;BRAKE PISTON |
| 707 | 212009 | [1] | O-RING |
| 708 | 232066 | [1] | O-RING |
| 741 | 135292 | [3] | SEPERATION PLATE |
| 742 | 135291 | [2] | FRICTION PLATE |
| 802 | 212030 | [2] | SCREW |
