232-63-13200 2326313200 Blade Lift Cylinder Seal Kit For Komatsu
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
232-63-13200 2326313200 Blade Lift Cylinder Seal Kit For Komatsu GD600R-1 GD605A-1
| Name | 232-63-13200 2326313200 Blade Lift Cylinder Seal Kit |
| Type | Blade Lift Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material |
Part Numbers of Cylinder Service Kits:
| 721-98-00160 | 707-98-23250 | 721-98-00590 |
| 707-99-47070 | 707-98-22840 | 721-98-00560 |
| 721-98-00170 | 707-98-24880 | 707-99-72060 |
| 721-98-00180 | 707-98-14260 | 707-99-37090 |
| 721-98-02460 | 707-98-13600 | 707-98-29650 |
| 721-98-02310 | 707-99-59750 | 721-98-00150 |
| 721-98-02330 | 707-99-59130 | 721-98-00220 |
| 707-99-58240 | 707-99-58450 | 721-98-01720 |
| 707-99-58260 | 707-98-24281 | 721-98-01750 |
| 707-99-58320 | 707-98-31110 | 721-98-01740 |
| 707-99-58310 | 707-98-29670 | 721-98-01560 |
| 707-99-59381 | 707-98-30550 | 721-98-03990 |
| 707-98-47841 | 878000655 | 721-98-04000 |
| 707-99-47851 | 878000658 | 721-98-04010 |
| 707-99-59020 | 878000537 | 707-99-72131 |
| 707-99-48731 | 878000657 | 707-99-76190 |
| 707-99-59430 | 878000656 | 707-99-72120 |
| 707-99-50620 | 878000654 | 707-99-76180 |
| 707-98-47670 | 878000538 | YM172151-72020 |
| 707-99-50680 | 707-99-59141 | YM172165-72640 |
| 721-98-02320 | 707-99-59140 | YM172157-99420 |
| 707-99-47580 | 721-98-02270 | YM172976-72360 |
| 707-99-46470 | 723-98-00570 | 707-98-34180 |
| 707-99-47150 | 721-98-01970 | 707-98-35520 |
| 707-98-47740 | 721-98-01960 | 707-98-29680 |
| 707-99-50780 | 721-98-02600 | 707-98-26820 |
| 707-99-57280 | 721-98-01981 | 707-98-26200 |
| 707-99-57260 | 721-98-01990 | 707-98-26310 |
| 707-98-45260 | 721-98-01980 | 707-99-26120 |
| 707-98-14580 | 21X-63-02020 | 707-99-26570 |
| 707-98-11450 | 21X-63-02050 | 707-98-30710 |
| 707-98-04580 | 21X-63-02010 | 707-98-25310 |
| 707-98-14990 | 21X-63-02040 | 707-98-26120 |
| 707-99-50580 | 21X-63-02030 | 201-63-36700 |
| 721-98-00280 | 707-98-25600 | 201-63-46700 |
| 721-98-00290 | 707-98-25190 | 201-63-26700 |
| 707-99-59120 | 707-98-24180 | 201-63-66100 |

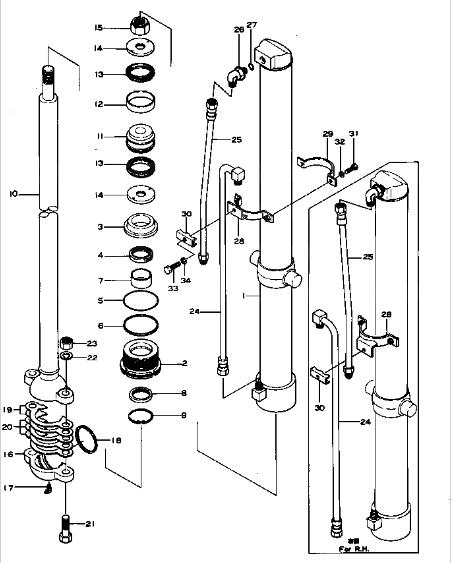

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 232-63-13100 | [1] | CYLINDER AS'Y,L.H. | |
| 232-63-13200 | [1] | CYLINDER AS'Y,R.H. | |
| 1. | 232-63-13140 | [1] | CYLINDER,L.H. |
| 1. | 232-63-13240 | [1] | CYLINDER,R.H. |
| 2. | 232-63-13130 | [1] | HEAD |
| 3. | 232-63-13230 | [1] | RETAINER |
| 4. | 236-63-62173 | [1] | PACKING |
| 5. | 07000-12095 | [1] | O-RING |
| 6. | 07001-02095 | [1] | RING |
| 7. | 07177-05030 | [1] | BUSHING |
| 8. | 07016-00507 | [1] | SEAL |
| 9. | 07179-00069 | [1] | RING |
| 10. | 232-63-13120 | [1] | ROD |
| 11. | 10E-63-56170 | [1] | PISTON |
| 12. | 07155-00820 | [1] | RING |
| 13. | 20R-63-56280 | [2] | U-PACKING |
| 14. | 111-63-99330 | [2] | RETAINER |
| 15. | 07165-13033 | [1] | NUT |
| 16. | 07138-00980 | [1] | CAP |
| 17. | 07020-00900 | [1] | FITTING |
| 18. | 07141-00090 | [1] | SEAL |
| 19. | 07139-00905 | [2] | SHIM, 0.5MM |
| 20. | 07139-00902 | [3] | SHIM, 0.2MM |
| 21. | 01010-52075 | [2] | BOLT |
| 22. | 01602-22060 | [2] | WASHER |
| 23. | 01580-12016 | [2] | NUT |
| 24. | 232-63-13180 | [1] | TUBE |
| 25. | 232-63-13190 | [1] | TUBE |
| 26. | 07235-10422 | [1] | ELBOW |
| 27. | 07002-12034 | [1] | O-RING |
| 28. | 232-63-13270 | [1] | BAND |
| 29. | 237-60-14670 | [1] | CLAMP |
| 30. | 237-60-14130 | [1] | CLIP |
| 31. | 01010-50830 | [2] | BOLT |
| 32. | 01602-20825 | [2] | WASHER |
| 33. | 01010-51040 | [1] | BOLT |
| 34. | 01602-21030 | [1] | WASHER |
