232-63-23100 2326323100 Drawbar Shift Cylinder Seal Kit For Komatsu
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
232-63-23100 2326323100 Drawbar Shift Cylinder Seal Kit For Komatsu GD600R-1 GD605A-1
| Name | 232-63-23100 2326323100 Drawbar Shift Cylinder Seal Kit |
| Type | Drawbar Shift Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material |
Part Numbers of Cylinder Service Kits:
| 707-99-24201 | 707-98-24270 | 201-63-02020 |
| 707-98-12670 | 707-99-26530 | 201-63-02010 |
| 707-98-12630 | 20T-63-66103 | 201-63-02030 |
| 707-98-13990 | 20T-63-56101 | 707-98-15680 |
| 707-99-59740 | 20T-63-76105 | 707-99-35290 |
| 707-99-59320 | 20T-63-86103 | 707-99-43240 |
| 707-99-59330 | 20T-63-56103 | 707-99-36660 |
| 707-99-59600 | 20T-63-86104 | 707-99-26690 |
| 707-98-24930 | 20T-63-66300 | 707-98-43560 |
| 707-98-22890 | 20T-63-96100 | 707-99-35351 |
| 878000522 | 20T-63-56300 | 707-99-42551 |
| 878000524 | 20T-63-76300 | 707-99-36711 |
| 878000520 | 20T-63-02021 | 707-99-68580 |
| 878000521 | 20T-63-02011 | 707-99-77160 |
| 878000523 | 20T-63-02031 | 707-99-68480 |
| 878000665 | 20T-63-02040 | 707-99-76380 |
| 707-98-24170 | 20T-63-02070 | 707-99-69550 |
| 707-98-22150 | 20U-63-02080 | 707-99-69560 |
| 707-98-22080 | 20T-63-02060 | 707-99-46030 |
| 707-98-22170 | 20T-63-02080 | 707-99-77170 |
| 707-98-04610 | 20T-63-02140 | 707-99-68680 |
| 707-98-12400 | 20T-63-02160 | 707-99-68690 |

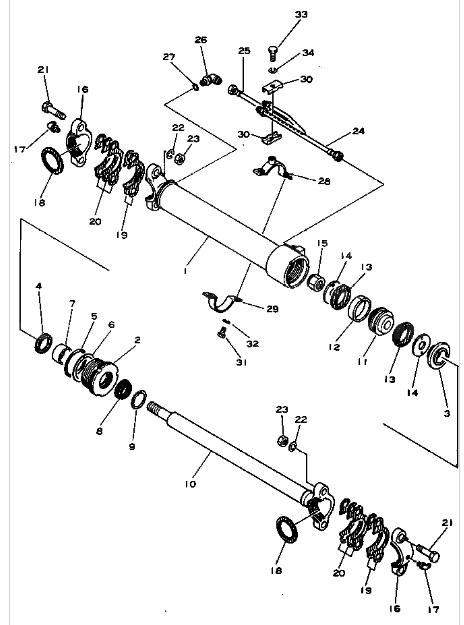

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 232-63-23100 | [1] | CYLINDER AS'Y | |
| 1. | 232-63-23140 | [1] | CYLINDER |
| 2. | 232-63-13130 | [1] | HEAD |
| 3. | 232-63-13230 | [1] | RETAINER |
| 4. | 236-63-62173 | [1] | PACKING |
| 5. | 07000-12095 | [1] | O-RING |
| 6. | 07001-02095 | [1] | RING |
| 07177-05030 | [1] | BUSHING | |
| 8. | 07016-00507 | [1] | SEAL |
| 9. | 07179-00069 | [1] | RING |
| 10. | 232-63-23120 | [1] | ROD |
| 11. | 10E-63-56170 | [1] | PISTON |
| 12. | 07155-00820 | [1] | RING |
| 13. | 20R-63-56280 | [2] | U-PACKING |
| 14. | 111-63-99330 | [2] | RETAINER |
| 15. | 07165-13033 | [1] | NUT |
| 16. | 07138-00980 | [2] | CAP |
| 17. | 07020-00900 | [2] | FITTING |
| 18. | 07141-00090 | [2] | SEAL |
| 19. | 07139-00905 | [4] | SHIM, 0.5MM |
| 20. | 07139-00902 | [6] | SHIM, 0.2MM |
| 21. | 01010-52075 | [4] | BOLT |
| 22. | 01602-22060 | [4] | WASHER |
| 23. | 01580-12016 | [4] | NUT |
| 24. | 232-63-23180 | [1] | TUBE |
| 25. | 232-63-23190 | [1] | TUBE |
| 26. | 07235-10422 | [1] | ELBOW |
| 27. | 07002-12034 | [1] | O-RING |
| 28. | 232-63-23270 | [1] | BAND |
| 29. | 237-60-14670 | [1] | CLAMP |
| 30. | 232-60-58820 | [2] | CLIP |
| 31. | 01010-50830 | [2] | BOLT |
| 32. | 01602-20825 | [2] | WASHER |
| 33. | 01010-51045 | [1] | BOLT |
| 34. | 01602-21030 | [1] | WASHER |
